12A312-0118-E8 - Briggs & Stratton Horizontal Engine Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group Parts Diagram

Horizontal Engine

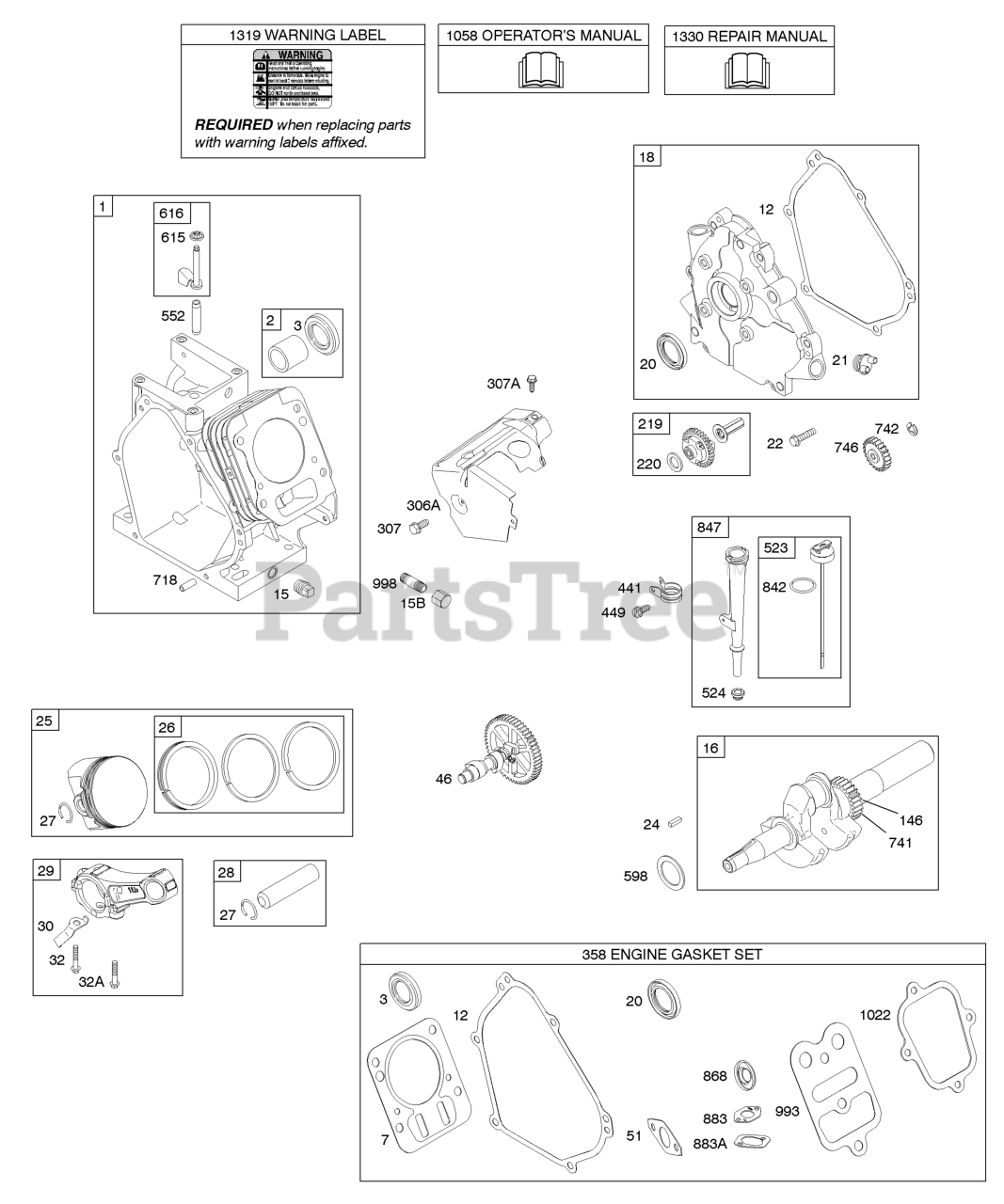

Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group Parts Diagram

  • Title

1

Briggs & Stratton 699510

Cylinder Assembly

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 17

0

12

Briggs & Stratton 699485

Gasket-Crankcase

$8.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 2 left!

0

15B

Briggs & Stratton 695757

Plug-Oil Drain

$6.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 699445

Crankshaft
(Superseded to 797070)

$192.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 699804

Cover-Crankcase

$209.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 699478

Screw
(Superseded to 594761)

Note: (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 791326

Piston Assembly
(Superseded to 799064)

Note: (.020 Oversize)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 791968

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 791969

Ring Set

Note: (Standard)

$38.99

$

In Stock, Qty 12

0

26

Briggs & Stratton 791324

Ring Set

Note: (.020 Oversize)

$47.99

$

In Stock, only 3 left!

0

27

Briggs & Stratton 691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 690124

Rod-Connecting
(Superseded to 798813)

$43.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 791584

Dipper-Connecting Rod

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 1 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 696813

Camshaft
(Superseded to 555790)

$69.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 9

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

306A

Briggs & Stratton 695710

Shield-Cylinder

$18.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 699483

Screw
(Superseded to 794822)

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

307A

Briggs & Stratton 699234

Screw

Note: (Cylinder Shield)

$3.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 791797

Gasket Set-Engine

$67.99

$

In Stock, only 1 left!

0

441

Briggs & Stratton 694262

Bracket-Oil Fill

$10.99

$

Usually ships in 2-12 days

0

449

Briggs & Stratton 699629

Screw
(Superseded to 699234)

Note: (Oil Fill Bracket)

$3.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 790546

Dipstick
(Superseded to 798468)

Note: Used Before Code Date 10022200

$24.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 798469

Dipstick

Note: Used After Code Date 10022100

$15.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370S

Seal-Dipstick Tube

$8.49

$

In Stock, Qty 20+

0

552

Briggs & Stratton 692346

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

598

Briggs & Stratton 220624

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$22.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 790278

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 790545

Dipstick/Tube Assembly
(Superseded to 798468)

Note: Used Before Code Date 10022200

$24.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 798468

Dipstick/Tube Assembly

Note: Used After Code Date 10022100

$24.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 692237

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

883A

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

998

Briggs & Stratton 792928

Pipe-Oil

Note: (2 1/2" Long)

$12.99

$

Usually ships in 2-12 days

0

998

Briggs & Stratton 696683

Pipe-Oil

Note: (4" Long)

$

$

Not available

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, only 4 left!

0

1058

Briggs & Stratton 279128TRI

Operator's Manual
(Superseded to 80006750USCN)

$11.99

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!

0
