12A-B2A3778 - Brute Walk-Behind Mower (2015) General Assembly Parts Diagram

Walk-Behind Mower

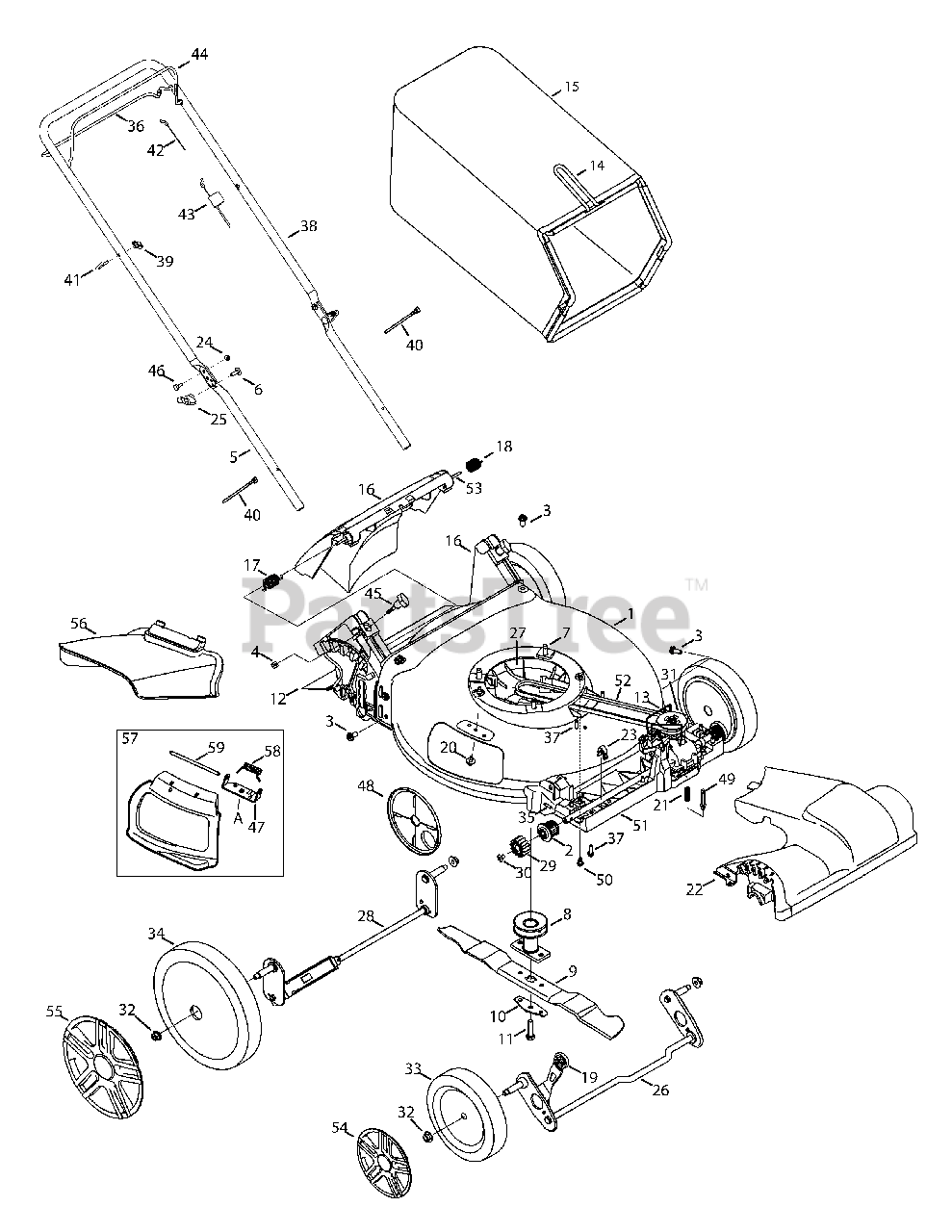

General Assembly Parts Diagram

  • Title

1

MTD 787-01871B-0691

Deck, 21"

$127.99

$

Usually ships in 3-6 days

0

2

MTD 941-00019

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

Usually ships in 3-6 days

0

5

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 5

0

6

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

7

MTD 710-04683B

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

8

MTD 687-02538

Blade Adapter

$41.99

$

In Stock, only 4 left!

0

9

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

11

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

12

MTD 731-07203

Trailing Shield

$10.99

$

In Stock, only 1 left!

0

13

MTD 732-04675A

Transmission Wire
(Superseded to 732-04675B)

$3.99

$

In Stock, Qty 20+

0

14

MTD 647-04271-0637

Grass Catcher Frame

$41.99

$

In Stock, Qty 20+

0

15

MTD 764-04077B

Grass Bag
(Superseded to 764-04077D)

$44.99

$

In Stock, only 1 left!

0

16

MTD 631-04369A

Rear Discharge Door Assembly
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

17

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

19

MTD 720-04130

Adjustment Lever Knob

$4.99

$

In Stock, only 1 left!

0

20

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-04704

Compression Spring

$4.49

$

In Stock, Qty 20+

0

22

MTD 731-07797

Front Cover
(Superseded to 731-07797A)

$32.99

$

In Stock, only 1 left!

0

23

MTD 787-01793

Front Axle Clip

$4.49

$

In Stock, Qty 18

0

24

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 720-04122

Wing Knob

$6.99

$

In Stock, Qty 20+

0

26

MTD 911-04150

Front Axle Assembly

$45.99

$

In Stock, only 1 left!

0

27

MTD 931-04535B

Engine Baffle
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

28

MTD 911-04144B

Rear Axle Assembly
(Superseded to 611-04144B)

$36.99

$

Usually ships in 3-6 days

0

29

MTD 917-04801

Spur Gear, 14T - RH

$9.99

$

In Stock, only 2 left!

0

29

MTD 917-04802

Spur Gear, 14T - LH

$9.49

$

In Stock, only 4 left!

0

30

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

31

MTD 918-04881A

Transmission Assembly
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

32

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

33

MTD 634-05040

Front Wheel, 8 x 2.0, Zag. Black

$40.99

$

In Stock, Qty 20+

0

34

MTD 634-05062

Rear Wheel, 11 x 2.0, Zag, Black

$42.99

$

In Stock, only 1 left!

0

35

MTD 715-04099

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

36

MTD 747-05210B

Drive Control

$9.49

$

In Stock, only 1 left!

0

37

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

38

MTD 749-04681B-0637

Upper Handle, Adjustable
(Superseded to 749-05084B-0637)

$33.99

$

In Stock, Qty 7

0

39

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

MTD 946-1113A

Control Cable, 37.75"

$19.99

$

In Stock, Qty 20+

0

43

MTD 946-04728

Drive Cable
(Superseded to 946-04728A)

$29.99

$

In Stock, Qty 20+

0

44

MTD 747-05184D

Blade Control

$7.49

$

In Stock, only 4 left!

0

45

MTD 720-05066A

Wing Nut

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

48

MTD 731-07240A

Wheel Dust Cover

$6.49

$

In Stock, Qty 5

0

49

MTD 731-07355

Spring Body

$5.99

$

Usually ships in 3-6 days

0

50

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

51

MTD 731-07789

Lower Tray
(Superseded to 731-07789A)

$33.99

$

In Stock, only 1 left!

0

52

MTD 954-04259A

V-Belt

$28.99

$

Usually ships in 3-6 days

0

53

MTD 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 10

0

54

MTD 731-09507

Hubcap, 8", Yellow

$8.49

$

Usually ships in 3-6 days

0

55

MTD 731-09508

Hubcap, 11", Yellow

$10.99

$

Usually ships in 3-6 days

0

56

MTD 731-07486

Side Discharge Chute

$16.99

$

In Stock, Qty 5

0

57

MTD 987-02516A

Mulch Plug (Incl. 47, 58-59)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

58

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

59

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0
