12A-B1BE752 - Yard Machines Walk-Behind Mower (2022) Deck Parts Diagram

Walk-Behind Mower

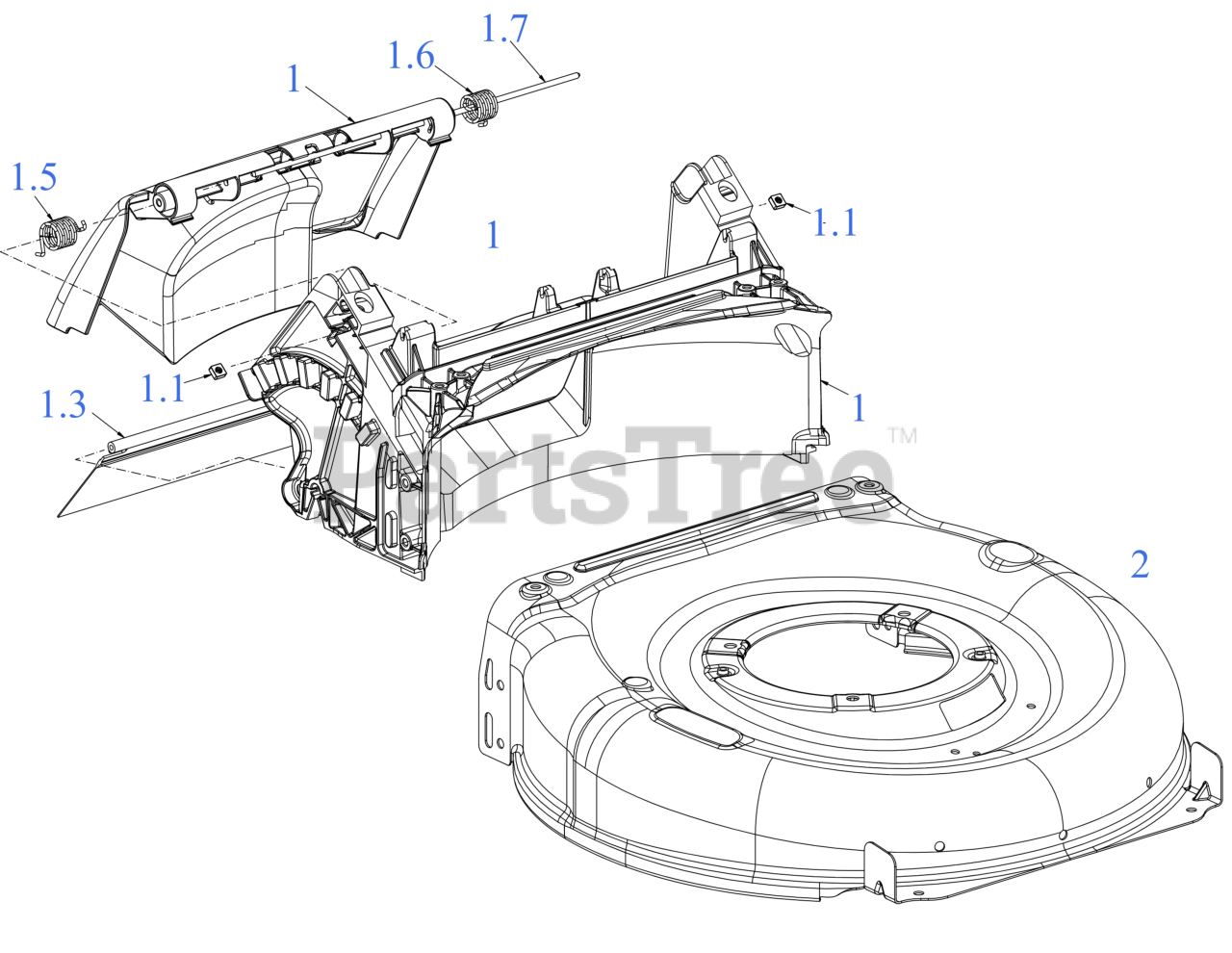

Deck Parts Diagram

  • Title
1

MTD 631-08159

REAR DOOR & BAFFLE ASSEMBLY

Note: (Incl.1-7)

$55.99

$

Usually ships in 3-6 days

0

1.1

MTD 712-06081

SQUARE NUT 1/4-20

$2.99

$

In Stock, only 1 left!

0

1.3

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

1.5

MTD 732-05061B

TORSION SPRING (RH)

$5.49

$

In Stock, only 1 left!

0

1.6

MTD 732-05062B

TORSION SPRING (LH)

$5.49

$

In Stock, only 2 left!

0

1.7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 10

0

2

MTD 787-01876B

21" DECK (2N1)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-01876B-0638

DECK-21" 2 IN 1 SP - MTD/TROY-BILT RED (0638)

$127.99

$

Usually ships in 3-6 days

0

MTD 787-01876B-0691

DECK-21" 2 IN 1 SP - BLACK JACK (0691)

$110.99

$

Usually ships in 3-6 days

0

MTD 787-01876B-0709

DECK-21" 2 IN 1 SP - MASTERCRAFT GREEN (0709)

$110.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0
