12A-999W897 - Columbia 21" Walk-Behind Mower (2011) Handle Assembly Parts Diagram

21" Walk-Behind Mower

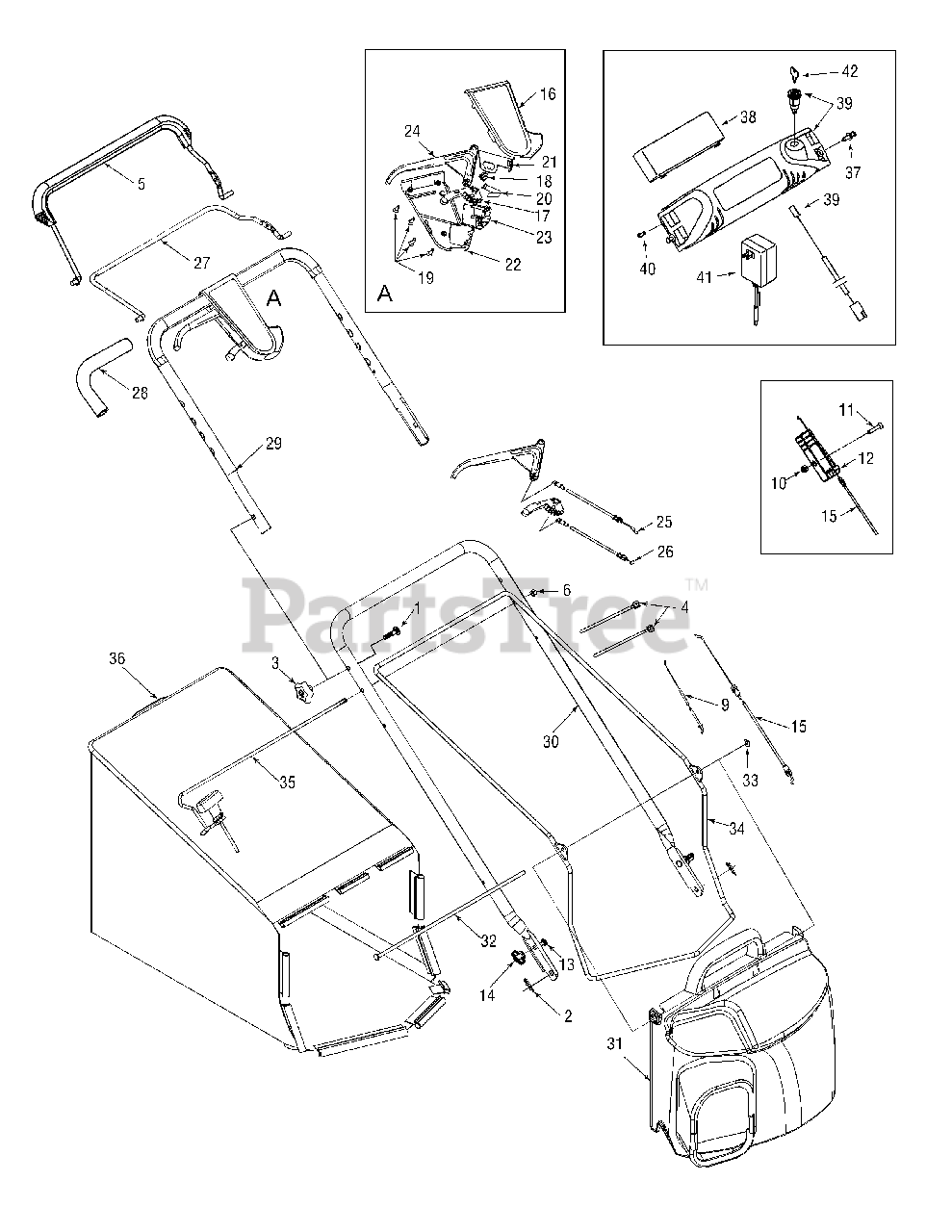

Handle Assembly Parts Diagram

  • Title

1

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

White Outdoor 914-0104

Int. Cotter Pin 5/16 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 720-04072A

Plastic Knob

$6.99

$

In Stock, Qty 20+

0

4

White Outdoor 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 647-0004

Control Bail Lever - Deluxe Black
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

6

White Outdoor 712-04063

Flg. Lock Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 736-0270

Cup. Wash. .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 946-0674A

Throttle Wire 60.0" Lg. Yel low

$18.99

$

In Stock, only 1 left!

0

10

White Outdoor 712-0324

Hex Ins. Locknut 1/4-20

$3.99

$

In Stock, Qty 16

0

11

White Outdoor 710-1270

Mach. Screw 1/4-20 x 1.319

$4.49

$

Usually ships in 3-6 days

0

12

White Outdoor 746-0883

Cable Bracket

$16.99

$

In Stock, only 3 left!

0

13

White Outdoor 710-0703

Carriage Bolt 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 946-0554

Control Cable 40.5" Lg.(B&S)

$21.99

$

In Stock, only 4 left!

0

16

White Outdoor 753-0717

Control Cover

$

$

Not available

17

White Outdoor 731-0924

6 Speed Shift Lever

$

$

Not available

18

White Outdoor 913-0397

3 Tooth Rack Gear Insert

$5.49

$

In Stock, only 4 left!

0

19

White Outdoor 710-1667A

C-sunk Tap Screw #10 x .75

$4.49

$

In Stock, Qty 13

0

20

White Outdoor 732-0627A

Shift Lever Spring

$9.49

$

In Stock, only 4 left!

0

21

White Outdoor 16864

Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

22

White Outdoor 753-0717

Control Cover

$

$

Not available

23

White Outdoor 753-0717

Control Cover

$

$

Not available

24

White Outdoor 731-0620A

Control Lever

$15.99

$

In Stock, only 1 left!

0

25

White Outdoor 946-0939A

Pulley Cable 53" Lg.

$33.99

$

In Stock, only 3 left!

0

26

White Outdoor 946-0711B

Clutch Cable - 53" Lg. Or ange

$32.99

$

In Stock, only 1 left!

0

27

White Outdoor 747-0824-0637

Control Bail Lever
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

28

White Outdoor 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

29

White Outdoor 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

29

White Outdoor 749-04354A-0637

Upper Handle(w/Electric start only)

$52.99

$

Usually ships in 3-6 days

0

30

White Outdoor 749-0907B

Lower Handle

Variations

White Outdoor 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

White Outdoor 631-04597

Grassbag Cover w/Label

$

$

Not available

32

White Outdoor 747-0939

Grasscatcher Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

White Outdoor 926-0106

Push Cap
(Superseded to 726-0106)

$

$

Not available

34

White Outdoor 747-0937-0637

Grasscatcher Upper Frame

$58.99

$

Usually ships in 3-6 days

0

35

White Outdoor 747-0940A-0637

Grasscatcher Support Rod

$26.99

$

Usually ships in 3-6 days

0

36

White Outdoor 964-0076A

Grassbag

$98.99

$

Usually ships in 3-6 days

0

37

White Outdoor 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 925-04323

12V Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

39

White Outdoor 925-04072

Electric Starter Harness Ass'y

$99.99

$

Usually ships in 3-6 days

0

39

White Outdoor 731-2422

Cable Guide, Harness

$15.99

$

Usually ships in 3-6 days

0

39

White Outdoor 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0

40

White Outdoor 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

41

White Outdoor 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 11

0

42

White Outdoor 925-0201

Key

$9.49

$

In Stock, only 1 left!

0
