12A-999W897 - Columbia 21" Walk-Behind Mower (2011) Drive Assembly 999 Parts Diagram

21" Walk-Behind Mower

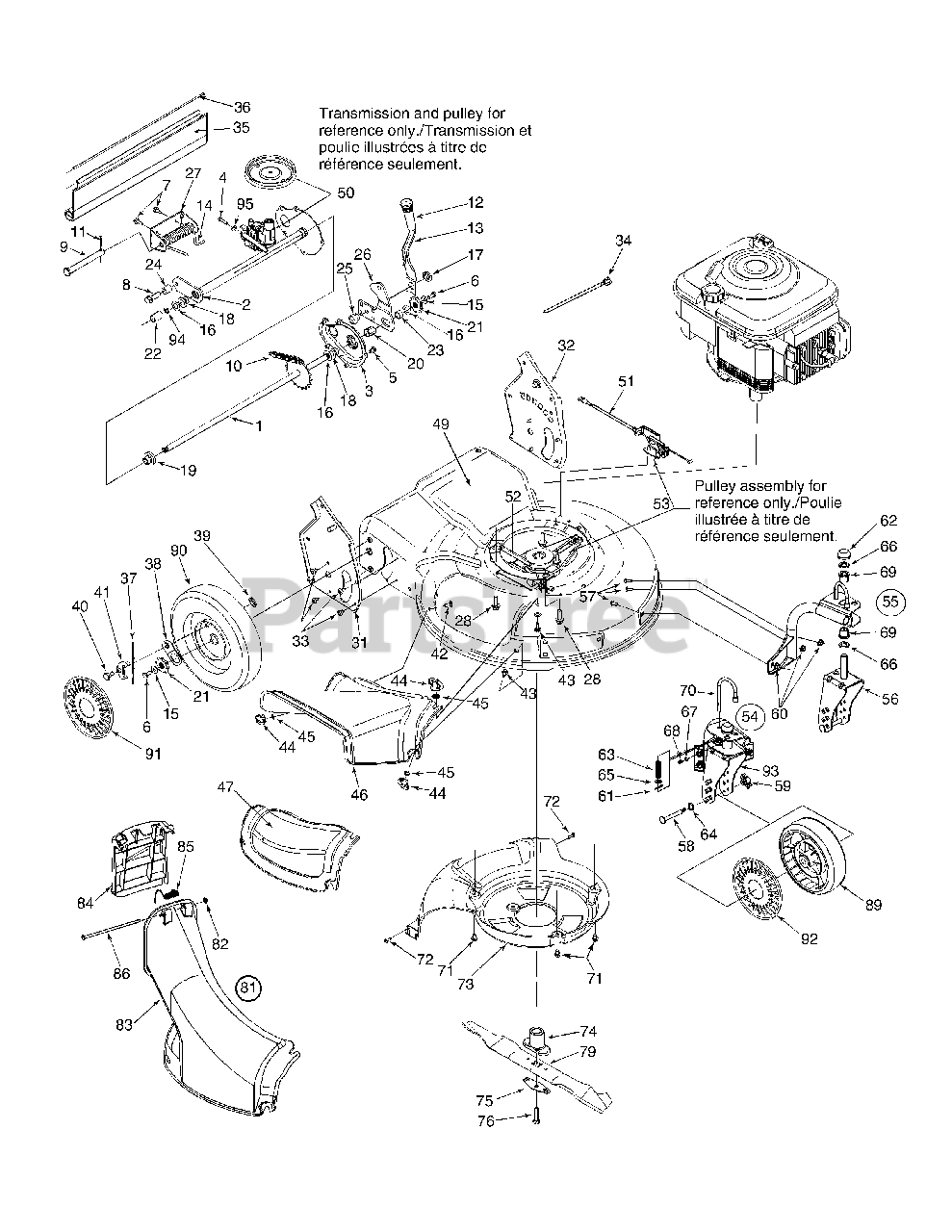

Drive Assembly 999 Parts Diagram

  • Title

1

White Outdoor 938-0012A

Axle Ass’y 20T x 21.46" Lg.

$74.99

$

Usually ships in 3-6 days

0

2

White Outdoor 682-7526-0637

Trans Axle Ass’y

$131.99

$

Usually ships in 3-6 days

0

3

White Outdoor 682-7528-0637

Chain Cover Ass’y

$

$

Not available

4

White Outdoor 710-0604A

Hex Wash HD Screw 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0653

Hex Wash HD Tapp Screw 1/4-20 x .38

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1652

Hex Wash Hd. Screw 1/4-20 x .625" Lg

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 911-0835

Clevis Pin .5" Dia. x 4.62" Lg.

$12.99

$

In Stock, only 3 left!

0

10

White Outdoor 913-0453

Chain, No. 48 End less .50 x 24 links

$12.99

$

In Stock, only 2 left!

0

11

White Outdoor 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

12

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

13

White Outdoor 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

14

White Outdoor 732-0832

RH Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

15

White Outdoor 736-0270

Cupped Wash. .25 ID x .88 OD x .062

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 936-0369

Washer, Flat .505 ID x 1.0
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 938-0529

Shoulder Nut .625 DIA. x .165

$11.99

$

In Stock, only 2 left!

0

18

White Outdoor 741-0324A

Flange Bearing .506 ID

$7.99

$

In Stock, Qty 5

0

19

White Outdoor 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$

$

Not available

20

White Outdoor 741-0978

Hex Sleeve Bearing .504 x .830 Lg.

$4.99

$

In Stock, only 3 left!

0

21

White Outdoor 948-0318

Ratchet Wheel

$10.99

$

In Stock, Qty 15

0

22

White Outdoor 950-0151

Spacer .55 ID x .75

$10.99

$

In Stock, Qty 20+

0

23

White Outdoor 750-0515

Sleeve .511 ID x .70 OD x .37" LG.

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 750-0807

Spacer .38 x .625" Lg.

$6.49

$

Usually ships in 3-6 days

0

25

White Outdoor 950-1056

Shoulder Spacer .385 ID x .715" Lg.

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 782-0566B-0637

Pivot Axle Arm

$44.99

$

In Stock, only 1 left!

0

27

White Outdoor 782-0568B

Spring Bracket

Variations

White Outdoor 782-0568B-0637

BRACKET-LIFT SPRING - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0654A

Hex Wash HD Tap Screw 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 682-3052

Handle Brkt. Ass’y RH

Variations

White Outdoor 682-3052-0637

BRACKET HANDLE RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3052-0716

BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3052-0650

BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3052-0662

BRACKET HANDLE RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

32

White Outdoor 682-3053

Handle Brkt. Ass’y LH

Variations

White Outdoor 682-3053-0637

BRACKET HANDLE LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3053-0650

BRACKET HANDLE LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3053-0716

BRACKET HANDLE LH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-3053-0638

BRACKET HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3053-0662

BRACKET HANDLE LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3053-0665

BRACKET HANDLE LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-3053-0689

BRACKET HANDLE LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-3053-4015

BRACKET HANDLE LH - FIRE RED (4015)

$

$

Not available

$

$

33

White Outdoor 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

34

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 731-1901A

Rear Flap 17.25" Lg.

$40.99

$

In Stock, only 2 left!

0

37

White Outdoor 10622BP

Spring Nylon
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

38

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

39

White Outdoor 912-0414

Toplock Flat Weldnut 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 938-0137A

Shoulder Screw .340 x .285: 1/4-20
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

41

White Outdoor 948-0188B

Pawl LH (Not Shown)

$

$

Not available

41

White Outdoor 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 736-3090

Flat Washer .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0

46

White Outdoor 731-1832

Side Chute

$

$

Not available

47

White Outdoor 931-1833A

Mulching Baffle

$44.99

$

In Stock, only 2 left!

0

49

White Outdoor 782-0046B

Deck Ass’y 21" (w/logo)

Variations

White Outdoor 782-0046B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0046B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

$194.99

$

Usually ships in 3-6 days

0

49

White Outdoor 787-01948

Deck Ass’y 21" (w/o logo)

Variations

White Outdoor 787-01948-0691

DECK-21" - BLACK JACK (0691)

$

$

Not available

White Outdoor 787-01948-4021

DECK-21" - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 787-01948-4028

DECK-21" - SEARS YELLOW (4028)

$

$

Not available

$107.99

$

Usually ships in 3-6 days

0

50

White Outdoor 918-0263A

Transmission Ass’y

$

$

Not available

51

White Outdoor 946-0711B

SP Cable 51.0" Lg.

$32.99

$

In Stock, only 1 left!

0

52

White Outdoor 954-0460

V-Belt 3/8 x 39.24" Lg.

$19.99

$

In Stock, Qty 20+

0

53

White Outdoor 956-0613A

Pulley & Actuator (6 speed)

$72.99

$

Usually ships in 3-6 days

0

54

White Outdoor 682-9020A

RH Caster Ass’y

Variations

White Outdoor 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

White Outdoor 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9020A-0629

CASTER ASSEMBLY-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

55

White Outdoor 682-9021A

LH Caster Ass’y

Variations

White Outdoor 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

56

White Outdoor 682-9026

Wheel Caster Brkt Ass’y LH
(Superseded to 682-9026A)

Variations

White Outdoor 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

White Outdoor 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9026-4033

BRACKET ASSY-WHEEL LH - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

57

White Outdoor 710-0260A

Carriage Bolt 5/16 x 18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

59

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 712-04063

Hex Flange L-Nut 5/16-18 Gr. F

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 914-0104

Int. Cotter Pin 5/16 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, Qty 5

0

63

White Outdoor 932-0306A

Compression Spring

$8.49

$

In Stock, only 2 left!

0

64

White Outdoor 936-0232

Spring Washer .530 ID
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

65

White Outdoor 936-0264

Flat Washer .344 ID x .625 OD x .063

$6.99

$

In Stock, only 2 left!

0

66

White Outdoor 736-0366

Flat Washer .63 ID x .12 OD x .12

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 736-0931

Flat Washer .203 ID x .406 OD x .040

$4.99

$

In Stock, only 1 left!

0

68

White Outdoor 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

69

White Outdoor 741-0685

Flange Bearing .631 ID

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 747-0924

Pin

$20.99

$

Usually ships in 3-6 days

0

71

White Outdoor 710-0653

Hex Wash HD Tapp Screw 1/4-20 x .38

$4.49

$

In Stock, Qty 7

0

72

White Outdoor 710-0895

Screw 1/4-15 X .75

$6.49

$

In Stock, Qty 10

0

73

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

74

White Outdoor 748-0377E

Blade Adapter (w/star)

$19.99

$

In Stock, only 1 left!

0

75

White Outdoor 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

76

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.00 Gr. 8 Spe cial

$7.99

$

In Stock, only 1 left!

0

77

White Outdoor 936-0504

Wave Washer .51" ID

$4.49

$

In Stock, Qty 9

0

79

White Outdoor 942-0741

Blade 21" (w/star)
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

81

White Outdoor 631-0067

Chute Assembly

Note: Includes Ref # 82, 83, 84, 85, 86

$83.99

$

Usually ships in 3-6 days

0

82

White Outdoor 726-0111

Push Cap .188 Rod

$

$

Not available

83

White Outdoor 931-0066

Top Chute

$115.99

$

Usually ships in 3-6 days

0

84

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

85

White Outdoor 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

86

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

89

White Outdoor 734-1857

Front Wheel Ass’y 7 x 2 (Link/Blk/BB)

$46.99

$

In Stock, Qty 8

0

90

White Outdoor 734-2044B

Rear Wheel Ass’y 9 x 2.125 (Drive/Zag/Blk)

$51.99

$

In Stock, only 2 left!

0

91

White Outdoor 731-07001

Hub Cap -Grey

$5.49

$

In Stock, only 2 left!

0

92

White Outdoor 731-1887

Hub Cap -Grey (Front, w/hole)

$11.99

$

Usually ships in 3-6 days

0

93

White Outdoor 682-9024

Wheel Caster Brkt. Ass’y RH

Variations

White Outdoor 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

White Outdoor 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0691

BRACKET CASTER-BLACK JACK - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0716

BRACKET CASTER - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

White Outdoor 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0
