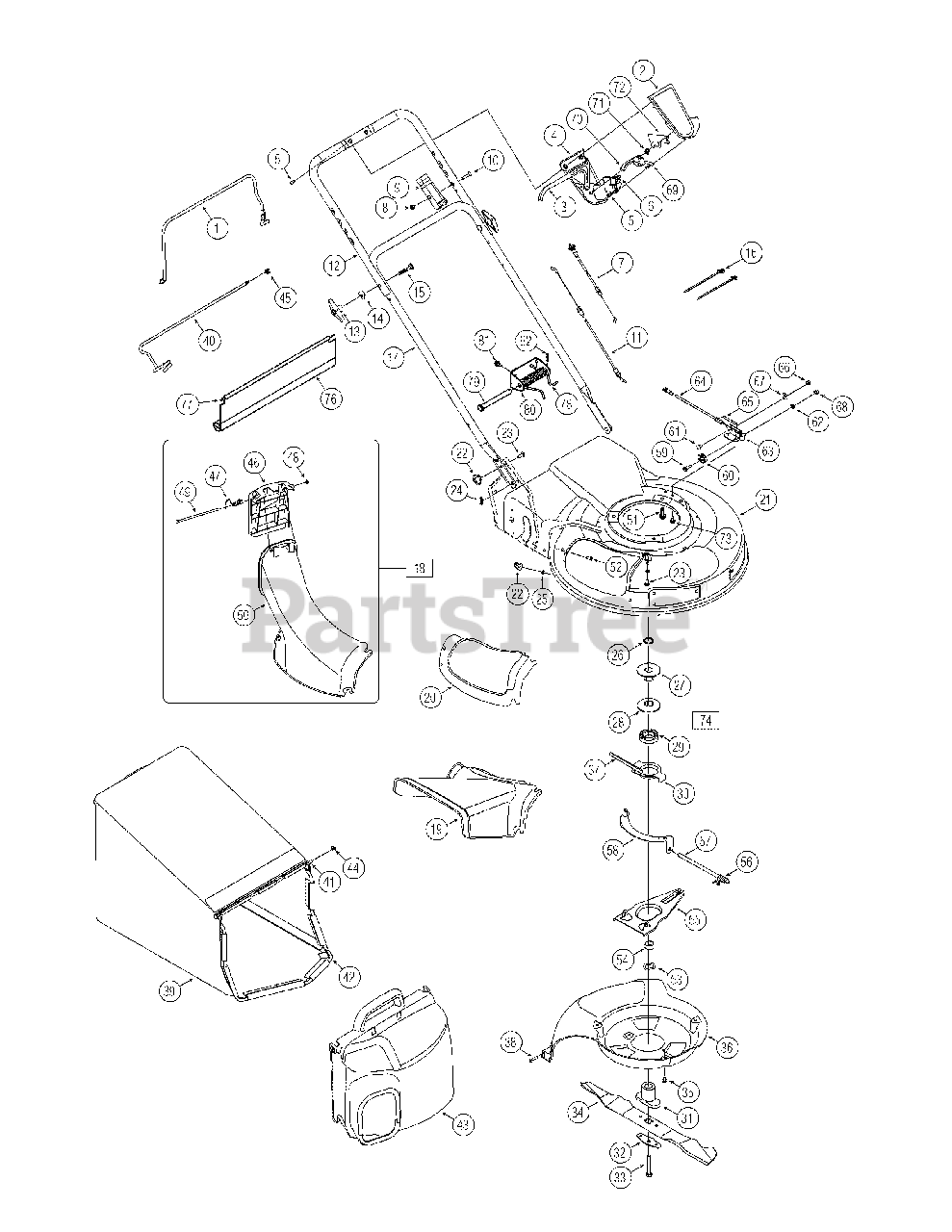

12A-998Q795 - MTD Pro Walk-Behind Mower (2005) General Assembly Parts Diagram

Pro Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824B-0637

Blade Control

$65.99

$

In Stock, only 1 left!

0

2

MTD 753-0717

Upper Control Housing

$

$

Not available

3

MTD 731-0620A

Drive Control

$15.99

$

In Stock, only 1 left!

0

4

MTD 753-0717

Lower Control Housing

$

$

Not available

5

MTD 710-1667A

C Sunk Tap Screw, #10 X.75 Lg

$4.49

$

In Stock, Qty 13

0

6

MTD 753-0717

Cable Mounting Cap

$

$

Not available

7

MTD 946-0711B

Drive Cable - 51"

$32.99

$

In Stock, only 1 left!

0

8

MTD 712-0324

Top Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

9

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

10

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 946-0557

Control Cable - 47"

$26.99

$

In Stock, only 1 left!

0

12

MTD 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

13

MTD 920-0284

Wing Nut
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

14

MTD 936-0451

Sdle Washer, .320 ID x.830 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

15

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

16

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

18

MTD 931-0066

Adapter Assembly

$115.99

$

Usually ships in 3-6 days

0

19

MTD 731-1832

Side Discharge Chute

$

$

Not available

20

MTD 931-1833A

Mulch Cover

$44.99

$

In Stock, only 1 left!

0

21

MTD 782-0078B

Deck 21"

Variations

MTD 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

MTD 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

MTD 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

MTD 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

MTD 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

MTD 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

MTD 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

MTD 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

22

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0703

Carriage Bolt, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

24

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

25

MTD 726-0233

Push Nut, .25 x ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

MTD 950-1071

Sleeve Spacer, .88ID x 1.13 OD

$4.49

$

In Stock, Qty 5

0

27

MTD 756-0612A

Half Pulley: 2.62 OD

$16.99

$

Usually ships in 3-6 days

0

28

MTD 756-0613

Half Pulley: 2.62 OD x 1.61

$17.99

$

Usually ships in 3-6 days

0

29

MTD 741-0545

Ball Bearing

$19.99

$

Usually ships in 3-6 days

0

30

MTD 682-7527

Cup

$29.99

$

Usually ships in 3-6 days

0

31

MTD 748-0377E

Blade Adapter

$19.99

$

In Stock, only 3 left!

0

32

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

33

MTD 710-1257

Hex Bolt, 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

34

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

35

MTD 710-0653

Screw, 1/4-20 x 3.75

$4.49

$

In Stock, Qty 8

0

36

MTD 731-08190A

Baffle

$37.99

$

In Stock, only 1 left!

0

37

MTD 954-0460

Belt, 3/8 x 39.24

$19.99

$

In Stock, Qty 20+

0

38

MTD 710-0969

HL Screw, #12-16 x 1.00

$4.49

$

In Stock, only 2 left!

0

39

MTD 964-0076

Grass Catcher

$98.99

$

Usually ships in 3-6 days

0

40

MTD 747-0940A-0637

Support Rod w/ Rope

$26.99

$

Usually ships in 3-6 days

0

41

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

42

MTD 747-0937-0637

Grass Catcher Frame

$58.99

$

Usually ships in 3-6 days

0

43

MTD 631-0071

Grass Catcher Cover

$103.99

$

Usually ships in 3-6 days

0

44

MTD 926-0106

Cap Nut
(Superseded to 726-0106)

$

$

Not available

45

MTD 912-0429

Hex Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

46

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

47

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

48

MTD 726-0111

Push Cap

$

$

Not available

49

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

50

MTD 931-0066

Grass Catcher Adapter

$115.99

$

Usually ships in 3-6 days

0

51

MTD 710-0654A

Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

52

MTD 710-0134

Carriage Screw, 1/4-20 x.62

$4.49

$

In Stock, Qty 20+

0

53

MTD 936-0526

Wave Washer, 1.38 ID x..88 OD

$6.99

$

In Stock, only 2 left!

0

54

MTD 950-1070

Slve Spacer, .88 ID x 1.00 OD

$5.99

$

In Stock, Qty 9

0

55

MTD 782-7596A

Control Arm

Variations

MTD 782-7596A-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

56

MTD 932-0807

Torsion Spring

$7.49

$

Usually ships in 3-6 days

0

57

MTD 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

58

MTD 782-7597

Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

59

MTD 738-0924A

Shlder Screw, .375 ID x X 1/4-14

$6.99

$

In Stock, Qty 5

0

60

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

61

MTD 710-0167

Carriage Screw, 1/4-20 x.50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

62

MTD 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

63

MTD 782-7575B-0637

Cable Mounting Bracket

$

$

Not available

64

MTD 946-0939A

6 Speed Cable

$33.99

$

In Stock, only 3 left!

0

65

MTD 782-7574A-0637

Cable Adjustment Bracket

$

$

Not available

66

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

67

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

68

MTD 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

69

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

70

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

71

MTD 913-0397

Gear Insert

$5.49

$

In Stock, only 4 left!

0

72

MTD 16864

6 Spd. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

73

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

74

MTD 956-0613A

Pulley Assembly

$72.99

$

In Stock, only 1 left!

0

75

MTD 750-1260

Engine Spacer (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

76

MTD 731-1901A

Trail Shield

$40.99

$

In Stock, only 2 left!

0

77

MTD 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

78

MTD 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

79

MTD 911-0835

Clevis Pin .50 Dia x 4.82 Lg

$12.99

$

In Stock, only 3 left!

0

80

MTD 782-0568-0637

Height Adjustment Spring Brkt
(Superseded to 782-0568B-0637)

$

$

Not available

81

MTD 710-1652

Screw 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

82

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available
