12A-998Q597 - Columbia 21" Walk-Behind Mower (2008) Pulley Assembly Parts Diagram

21" Walk-Behind Mower

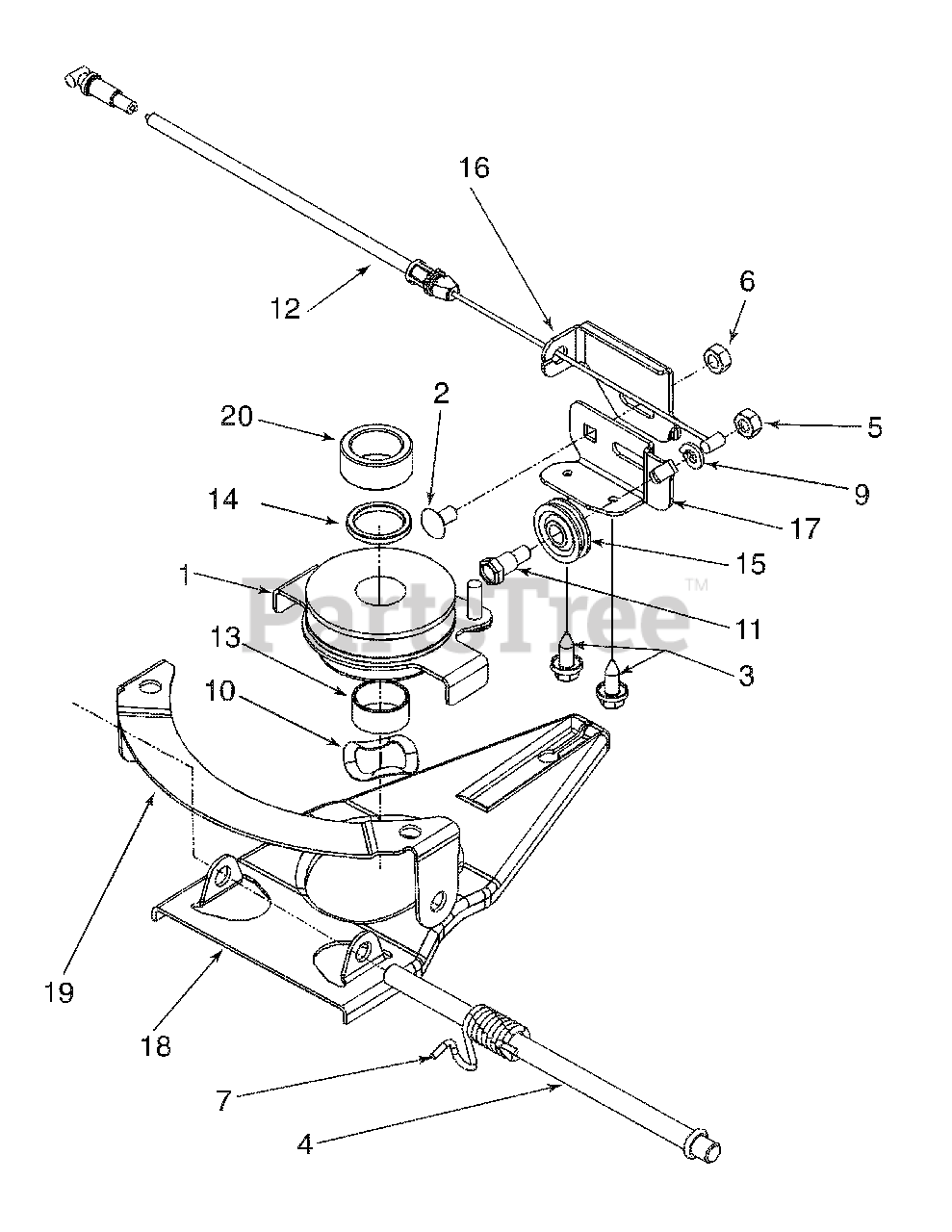

Pulley Assembly Parts Diagram

  • Title

1

White Outdoor 656-0613

Multi Speed Pulley Ass’y
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62\5" Lg. Gr. 2

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-1652

Hex Wash HD. TT Tap Scr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

5

White Outdoor 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 732-0807

Torsion Spring LH
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

9

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

White Outdoor 736-0526

Wave Washer .88 ID x 1.38 OD x .029

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

12

White Outdoor 746-0939A

Pulley Cable 53" Lg.
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

13

White Outdoor 750-1070

Sleeve Spacer .88 ID x 1.0 OD x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

14

White Outdoor 750-1071

Sleeve Spacer .88 ID x 1.13 OD x .12
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

15

White Outdoor 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 14

0

16

White Outdoor 782-7574A

Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

White Outdoor 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

White Outdoor 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 782-7596A

Control Arm

Variations

White Outdoor 782-7596A-0637

CONTROL ARM 6 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 782-7597

Pivot Bracket

Variations

White Outdoor 782-7597-0637

PIVOT BRACKET - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

20

White Outdoor 750-1260

Sleeve Spacer .878 x 1.25 x .545

Note: (with Honda engine only)

$2.99

$

Usually ships in 3-6 days

0
