12A-996B897 - Columbia 21" Walk-Behind Mower (2010) Deck Assembly 996 Parts Diagram

21" Walk-Behind Mower

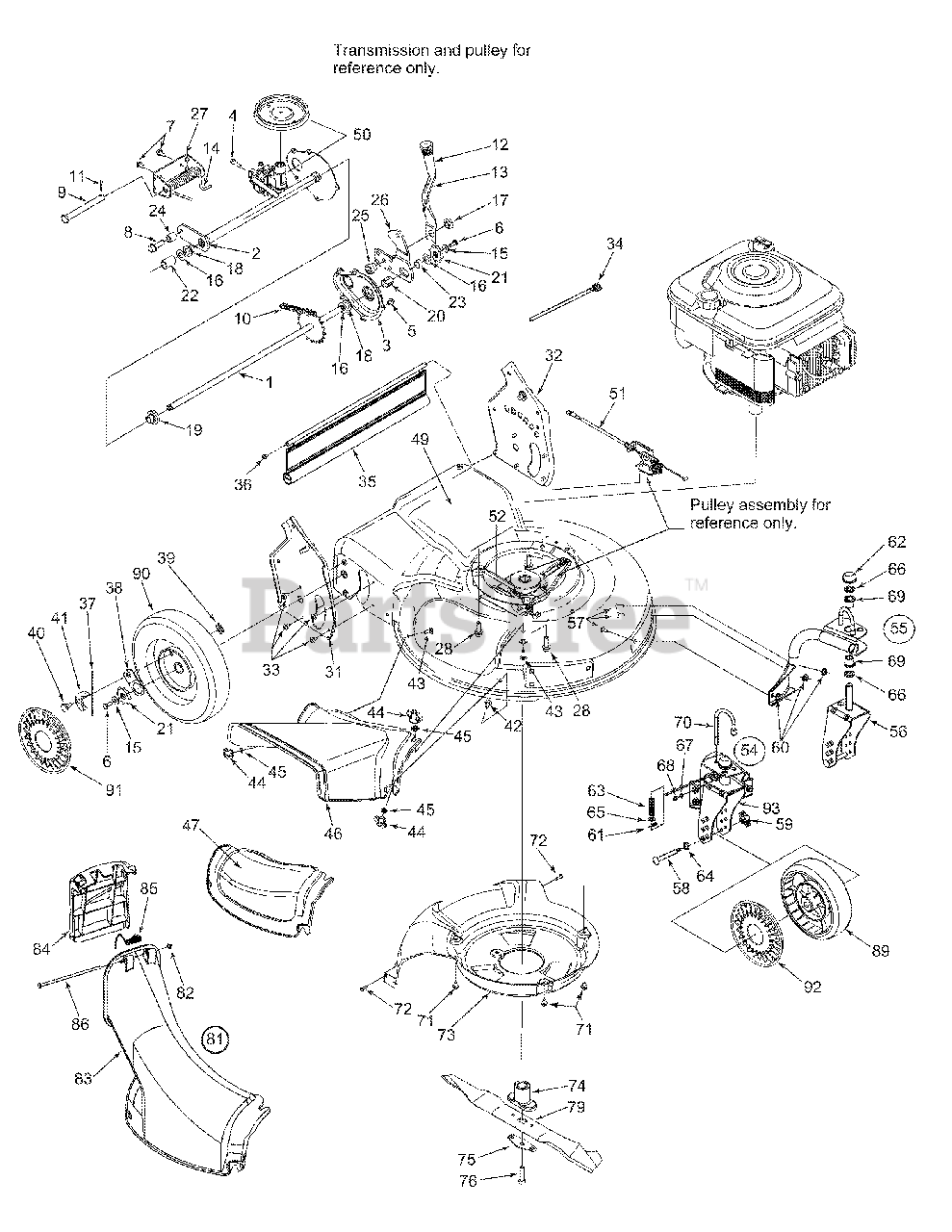

Deck Assembly 996 Parts Diagram

  • Title

1

White Outdoor 938-0012

Axle Ass’y 20T x 21.46" Lg.
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

2

White Outdoor 682-7526-0637

Trans Axle Ass’y

$131.99

$

Usually ships in 3-6 days

0

3

White Outdoor 682-7528-0637

Chain Cover Ass’y

$

$

Not available

4

White Outdoor 710-0604A

Hex Wash HD Scr 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .38

$4.49

$

In Stock, Qty 13

0

6

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1652

Hex Wash Hd. Scr 1/4-20 x .625" Lg

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

9

White Outdoor 911-0835

Clevis Pin .5" Dia. x 4.62" Lg.

$12.99

$

Usually ships in 3-6 days

0

10

White Outdoor 913-0453

Chain, No. 48 End less .50 x 24 links

$12.99

$

Usually ships in 3-6 days

0

11

White Outdoor 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

12

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

13

White Outdoor 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

14

White Outdoor 732-0832

RH Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

15

White Outdoor 736-0270

Cupped Wash. .25 ID x .88 OD x .062

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 936-0369

Washer, Flat .505 ID x 1.0
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

17

White Outdoor 938-0529

Shoulder Nut .625 DIA. x .165

$11.99

$

In Stock, only 2 left!

0

18

White Outdoor 741-0324A

Flange Bear ing .506 ID

$7.99

$

In Stock, Qty 5

0

19

White Outdoor 941-0522

Hex Flange Bear ing
(Superseded to 741-0522)

$

$

Not available

20

White Outdoor 741-0978

Hex Sleeve Bear ing .504 x .830 Lg.

$4.99

$

In Stock, only 3 left!

0

21

White Outdoor 948-0318

Ratchet Wheel

$10.99

$

In Stock, only 2 left!

0

22

White Outdoor 950-0151

Spacer .55 ID x .75

$10.99

$

In Stock, Qty 20+

0

23

White Outdoor 750-0515

Sleeve .511 ID x .70 OD x .37" LG.

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 750-0807

Spacer .38 x .625" Lg.

$6.49

$

Usually ships in 3-6 days

0

25

White Outdoor 950-1056

Shoulder Spacer .385 ID x .715" Lg.

$7.49

$

Usually ships in 3-6 days

0

26

White Outdoor 782-0566B-0637

Pivot Axle Arm

$44.99

$

In Stock, only 1 left!

0

27

White Outdoor 782-0568-0637

Spring Bracket
(Superseded to 782-0568B-0637)

$

$

Not available

28

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

31

White Outdoor 682-3052-0637

Handle Brkt. Ass’y RH

$

$

Not available

32

White Outdoor 682-3053-0637

Handle Brkt. Ass’y LH

$

$

Not available

33

White Outdoor 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

34

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

35

White Outdoor 731-1901A

Rear Flap 17.25" Lg.

$40.99

$

In Stock, only 2 left!

0

37

White Outdoor 10622BP

Spring Nylon
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

38

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

39

White Outdoor 912-0414

Toplock Flat Weldnut 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, only 4 left!

0

40

White Outdoor 938-0137A

Shoulder Screw .340 x .285: 1/4-20
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

41

White Outdoor 948-0188B

Pawl LH (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

41

White Outdoor 748-0381

Pawl RH

$11.99

$

In Stock, only 1 left!

0

42

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$4.49

$

In Stock, Qty 15

0

44

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, only 3 left!

0

46

White Outdoor 731-1832

Side Chute

$

$

Not available

47

White Outdoor 931-1833A

Mulching Baffle

$44.99

$

In Stock, only 1 left!

0

49

White Outdoor 782-0078B-0606

Deck Ass’y 21" (w/logo)

$

$

Not available

50

White Outdoor 918-0263A

Transmission Ass’y

$

$

Not available

51

White Outdoor 946-0711B

SP Cable 51.0" Lg.

$32.99

$

Usually ships in 3-6 days

0

52

White Outdoor 954-0460

V-Belt 3/8 x 39.24" Lg.

$19.99

$

Usually ships in 3-6 days

0

54

White Outdoor 682-9020A-0606

RH Caster Ass’y

$

$

Not available

55

White Outdoor 682-9021A-0606

LH Caster Ass’y

$

$

Not available

56

682-9026-0606

Wheel Caster Brkt Ass’y LH

$

$

Not available

57

White Outdoor 710-0260A

Carriage Bolt 5/16 x 18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

59

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 712-04063

Hex Flange L-Nut 5/16-18 Gr. F

$3.99

$

In Stock, Qty 20+

0

61

White Outdoor 914-0104

Int. Cotter Pin 5/16 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, only 3 left!

0

63

White Outdoor 932-0306A

Com pres sion Spring

$8.49

$

In Stock, only 4 left!

0

64

White Outdoor 936-0232

Spring Washer .530 ID
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

65

White Outdoor 936-0264

Flat Washer .344 ID x .625 OD x .063

$6.99

$

In Stock, only 3 left!

0

66

White Outdoor 736-0366

Flat Washer .63 ID x .12 OD x .12

$4.49

$

In Stock, only 2 left!

0

67

White Outdoor 736-0931

Flat Washer .203 ID x .406 OD x .040

$4.99

$

In Stock, only 1 left!

0

68

White Outdoor 937-3000

Grease Fit ting

$4.99

$

In Stock, Qty 20+

0

69

White Outdoor 741-0685

Flange Bear ing .631 ID

$4.49

$

Usually ships in 3-6 days

0

70

White Outdoor 747-0924

Pin

$20.99

$

In Stock, only 1 left!

0

71

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .38

$4.49

$

In Stock, Qty 13

0

72

White Outdoor 710-0895

Screw 1/4-15 X .75

$6.49

$

In Stock, Qty 5

0

73

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

Usually ships in 3-6 days

0

74

White Outdoor 748-0377E

Blade Adapter (w/star)

$19.99

$

In Stock, only 3 left!

0

75

White Outdoor 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

76

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.00 Gr. 8 Special

$7.99

$

In Stock, only 2 left!

0

77

White Outdoor 936-0504

Wave Washer .51" ID

$4.49

$

In Stock, Qty 10

0

79

White Outdoor 942-0741

Blade 21" (w/star)
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

81

White Outdoor 631-0067

Chute Assembly

Note: includes ref 82, 83, 84, 85, 86.

$83.99

$

Usually ships in 3-6 days

0

82

White Outdoor 726-0111

Push Cap .188 Rod

$

$

Not available

83

White Outdoor 931-0066

Top Chute

$115.99

$

Usually ships in 3-6 days

0

84

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

85

White Outdoor 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

86

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

89

White Outdoor 734-1857

Front Wheel Ass’y 7 x 2 (Link/Blk/BB)

$46.99

$

In Stock, Qty 7

0

90

White Outdoor 734-2044A

Rear Wheel Ass’y 9 x 2.125 (Drive/Zag/Blk)
(Superseded to 734-2044B)

$51.99

$

In Stock, only 2 left!

0

91

White Outdoor 731-07001

Hub Cap -Grey

$5.49

$

In Stock, only 2 left!

0

92

White Outdoor 731-1887

Hub Cap -Grey (Front, w/hole)

$11.99

$

Usually ships in 3-6 days

0

93

White Outdoor 682-9024-0606

Wheel Caster Brkt. Ass’y RH
(Superseded to 682-9024A-0606)

$81.99

$

Usually ships in 3-6 days

0
