12A-98K3095 - MTD Pro Walk-Behind Mower (2009) General Assembly Parts Diagram

Pro Walk-Behind Mower

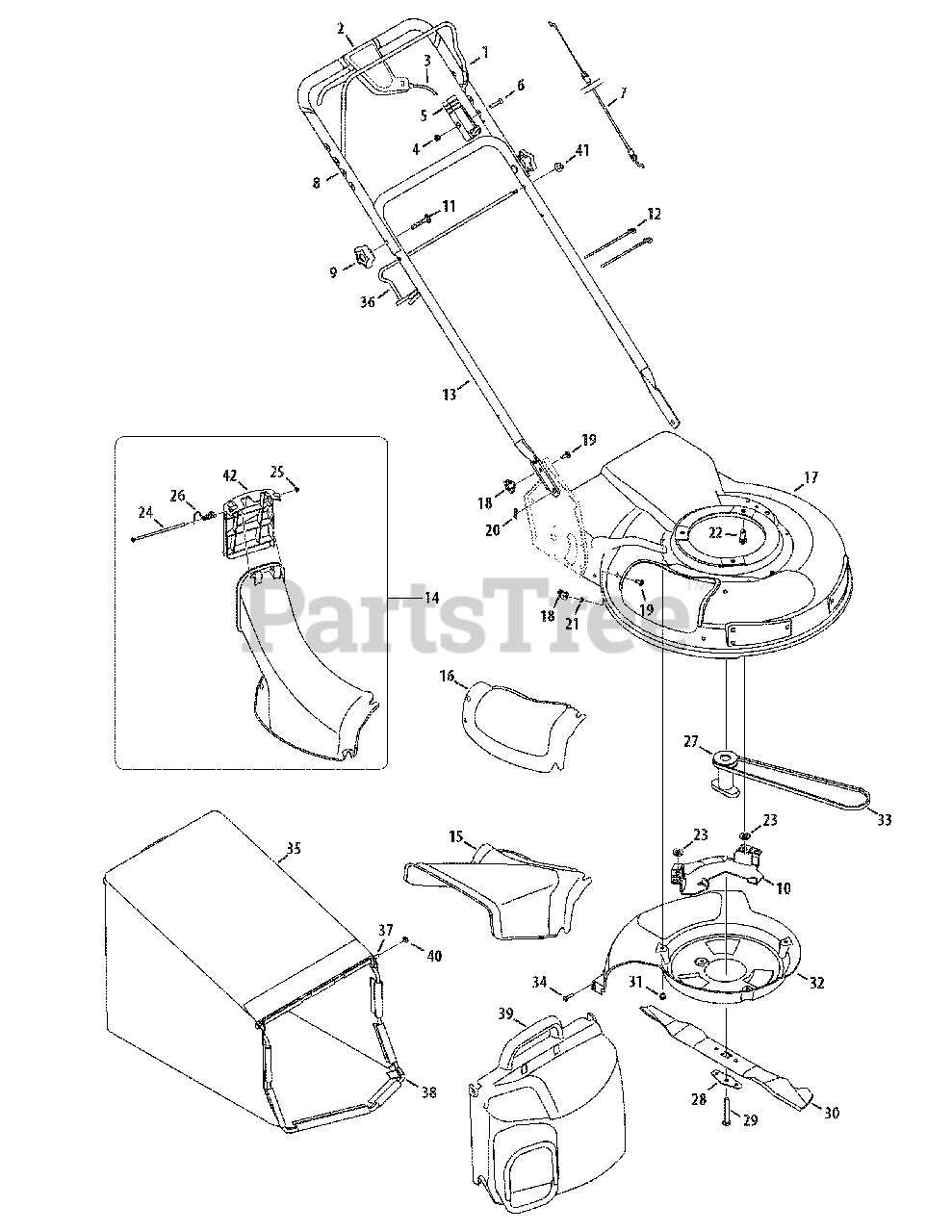

General Assembly Parts Diagram

  • Title

1

MTD 747-0824-0637

Control Lever
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 753-06060

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

3

MTD 746-0711B

Drive Cable
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

4

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

5

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

6

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

7

MTD 946-04625

Control Cable

$31.99

$

Usually ships in 3-6 days

0

8

MTD 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

9

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

10

MTD 782-9063A-0637

Belt Keeper
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

11

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

12

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

13

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 931-0066

Chute Assembly

$115.99

$

Usually ships in 3-6 days

0

15

MTD 731-1832

Side-Discharge Chute

$

$

Not available

16

MTD 931-1833A

Mulch Cover

$44.99

$

In Stock, only 1 left!

0

17

MTD 782-0078B-0691

Deck 21-inch

$

$

Not available

18

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0703

Carriage Bolt 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

20

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 726-0233

Push Nut .25 x ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0654A

Sems Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-3010

Washer, Flat, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

24

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

25

MTD 726-0111

Push Cap

$

$

Not available

26

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

27

MTD 948-04015A

Blade Adapter

$65.99

$

Usually ships in 3-6 days

0

28

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

29

MTD 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

30

MTD 942-04276S

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

31

MTD 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 8

0

32

MTD 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

33

MTD 954-0460

Belt 3/8 x 39.24

$19.99

$

In Stock, Qty 20+

0

34

MTD 710-0895

HL Screw 1/4-15 x .75

$6.49

$

In Stock, only 4 left!

0

35

MTD 964-0076A

Grass Catcher

$98.99

$

Usually ships in 3-6 days

0

36

MTD 747-0940A-0637

Support Rod w/ Rope Guide

$26.99

$

Usually ships in 3-6 days

0

37

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

38

MTD 747-0937-0637

Grass Bag Frame

$58.99

$

Usually ships in 3-6 days

0

39

MTD 631-0071

Grass Bag Cover

$103.99

$

Usually ships in 3-6 days

0

40

MTD 926-0106

Cap Nut
(Superseded to 726-0106)

$

$

Not available

41

MTD 712-04063

Hex Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

42

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0
