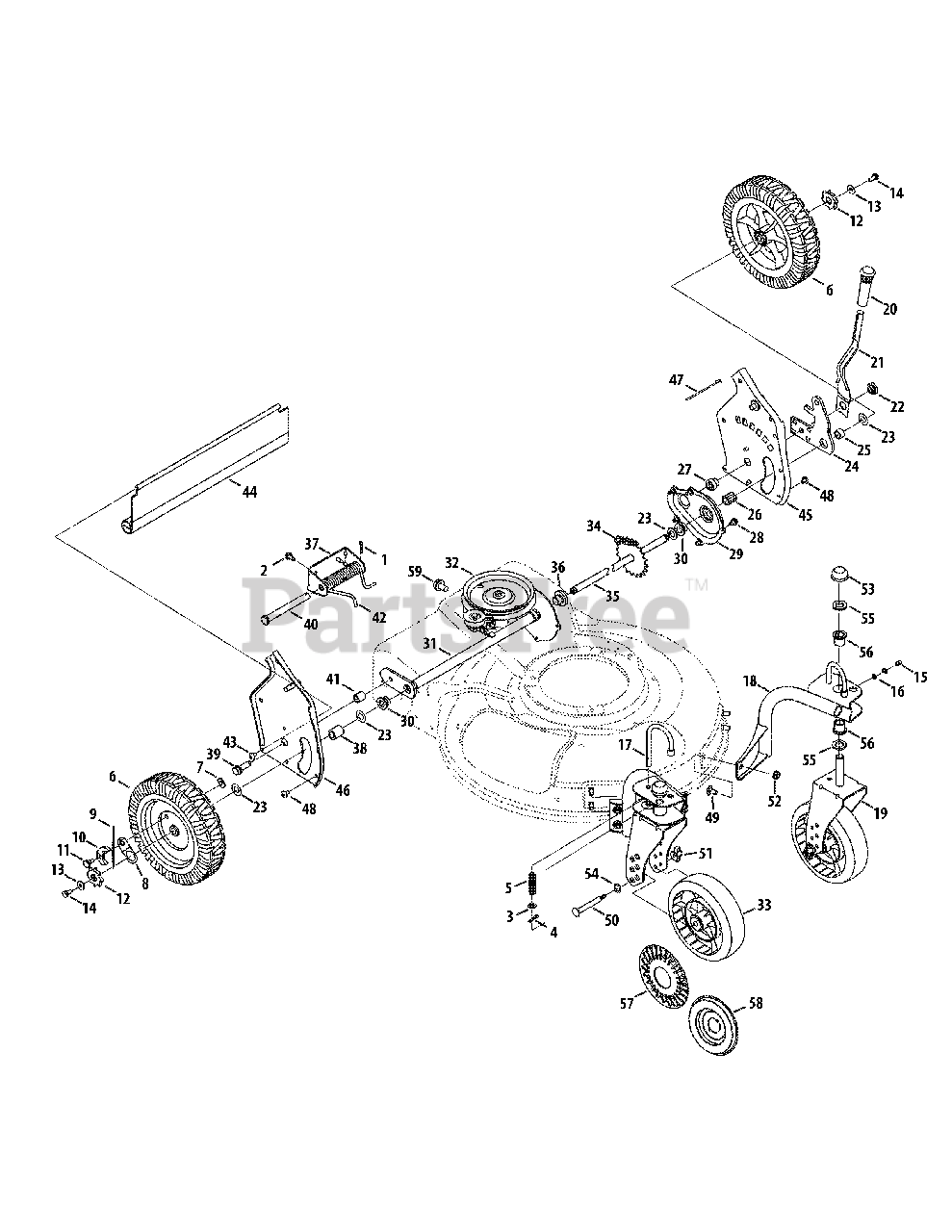

12A-98K3095 - MTD Pro Walk-Behind Mower (2009) Drive Assembly Parts Diagram

Pro Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

MTD 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

2

MTD 710-1652

Screw 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

3

MTD 936-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 3 left!

0

4

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

MTD 932-0306A

Compression Spring

$8.49

$

In Stock, only 4 left!

0

6

MTD 734-2044

Wheel, 9 x 2.125
(Superseded to 734-2044B)

$51.99

$

In Stock, only 2 left!

0

7

MTD 912-0414

Top Lock Tab Weld Nut 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

8

MTD 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

9

MTD 10622BP

Plastic Spring Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

10

MTD 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

10

MTD 948-0188B

Pawl LH

$

$

Not available

11

MTD 938-0137A

Shlder Screw.340 ID x.285 OD
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

12

MTD 948-0318

Wheel Ratchet

$10.99

$

In Stock, Qty 16

0

13

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

15

MTD 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

16

MTD 736-0931

Flat Washer.203 ID x.403 OD

$4.99

$

In Stock, only 1 left!

0

17

MTD 747-0924

Wheel Pin Lock

$20.99

$

In Stock, only 1 left!

0

18

MTD 682-9020A-0691

Caster Assembly RH

$97.99

$

Usually ships in 3-6 days

0

18

MTD 682-9021A-0691

Caster Assembly LH
(Superseded to 682-9021A)

$101.99

$

Usually ships in 3-6 days

0

19

MTD 682-9024-0691

Caster Bracket Assembly RH
(Superseded to 682-9024A-0691)

$81.99

$

Usually ships in 3-6 days

0

19

MTD 682-9026-0691

Caster Bracket Assembly LH
(Superseded to 682-9026A-0691)

$85.99

$

Usually ships in 3-6 days

0

20

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

21

MTD 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

22

MTD 938-0529

Shoulder Nut.825 x .165 Lg.

$11.99

$

In Stock, only 2 left!

0

23

MTD 936-0369

Flat Washer .508 ID x 1.0 OD
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

24

MTD 782-0566B-0637

Pivot Arm Assembly

$44.99

$

In Stock, only 1 left!

0

25

MTD 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, only 4 left!

0

26

MTD 741-0978

Slv Bearing .504 ID x .830 OD

$4.99

$

In Stock, only 3 left!

0

27

MTD 950-1056

Shlder Spacer, .385ID x .715Lg

$7.49

$

Usually ships in 3-6 days

0

28

MTD 710-0653

Tap Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

29

MTD 682-7528-0637

Chain Cover Assembly

$

$

Not available

30

MTD 741-0324A

Flge Bearing .506 ID x .590 Lg

$7.99

$

In Stock, Qty 5

0

31

MTD 682-7526-0637

Transmission Axle Assembly

$131.99

$

Usually ships in 3-6 days

0

32

MTD 918-0263A

Transmission Ass’y Complete

$

$

Not available

33

MTD 734-1857

Wheel 7 x 2

$46.99

$

In Stock, Qty 8

0

34

MTD 913-0453

Chain

$12.99

$

In Stock, only 1 left!

0

35

MTD 638-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

36

MTD 941-0522

Flge Bearing .506 ID x .715 Lg
(Superseded to 741-0522)

$

$

Not available

37

MTD 782-0568-0637

Height Adjustment Spring Brkt.
(Superseded to 782-0568B-0637)

$

$

Not available

38

MTD 950-0151

Spacer .550 ID x .750 OD

$10.99

$

In Stock, Qty 20+

0

39

MTD 710-1315

Screw 3/8-16 x .25

$4.49

$

In Stock, Qty 20+

0

40

MTD 911-0835

Clevis Pin .50 Dia x 4.82 Lg.

$12.99

$

In Stock, only 3 left!

0

41

MTD 750-0807

Spacer .385 ID x .624 OD

$6.49

$

Usually ships in 3-6 days

0

42

MTD 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

43

MTD 710-0779A

Screw, AB, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

44

MTD 731-06874

Trail Shield

$20.99

$

In Stock, only 1 left!

0

45

MTD 687-02495

Handle Bracket Assembly - LH

Variations

MTD 687-02495-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

MTD 687-02495-4021

BRACKET ASM-HANDLE - CUB YELLOW 2 (4021)

$29.99

$

Usually ships in 3-6 days

0

MTD 687-02495-0606

BRACKET ASM-HANDLE - MAJESTIC ORANGE (0606)

$29.99

$

Usually ships in 3-6 days

0

MTD 687-02495-4028

BRACKET ASM-HANDLE - SEARS YELLOW (4028)

$29.99

$

Usually ships in 3-6 days

0

MTD 687-02495-0650

BRACKET ASM-HANDLE - RED METALLIC (0650)

$

$

Not available

MTD 687-02495-0691

BRACKET ASM-HANDLE - BLACK JACK (0691)

$

$

Not available

$25.99

$

Usually ships in 3-6 days

0

46

MTD 687-02494

Handle Bracket Assembly - RH

Variations

MTD 687-02494-0637

BRACKET ASM-HANDLE - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

MTD 687-02494-4021

BRACKET ASM-HANDLE - CUB YELLOW 2 (4021)

$29.99

$

Usually ships in 3-6 days

0

MTD 687-02494-0606

BRACKET ASM-HANDLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 687-02494-0650

BRACKET ASM-HANDLE - RED METALLIC (0650)

$

$

Not available

MTD 687-02494-0691

BRACKET ASM-HANDLE - BLACK JACK (0691)

$

$

Not available

MTD 687-02494-4028

BRACKET ASM-HANDLE - SEARS YELLOW (4028)

$

$

Not available

$25.99

$

Usually ships in 3-6 days

0

47

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

48

MTD 710-1348

Screw 1/4-14 x.500

$6.99

$

In Stock, only 3 left!

0

49

MTD 710-0260A

Carriage Bolt 5/16-18 x.62

$4.49

$

In Stock, Qty 20+

0

50

MTD 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

51

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

52

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

54

MTD 936-0232

Wave Washer.531 ID x.781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

55

MTD 736-0366

Flat Washer.640 ID x 1.12 OD

$4.49

$

In Stock, Qty 20+

0

56

MTD 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

57

MTD 731-1887

Hubcap - Spoke w/ Hole

$11.99

$

Usually ships in 3-6 days

0

58

MTD 731-07001

Hubcap - Radial Spoke

$5.49

$

In Stock, only 2 left!

0

59

MTD 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+
