12A-989Q795 - MTD Pro Walk-Behind Mower (2008) General Assembly Parts Diagram

Pro Walk-Behind Mower

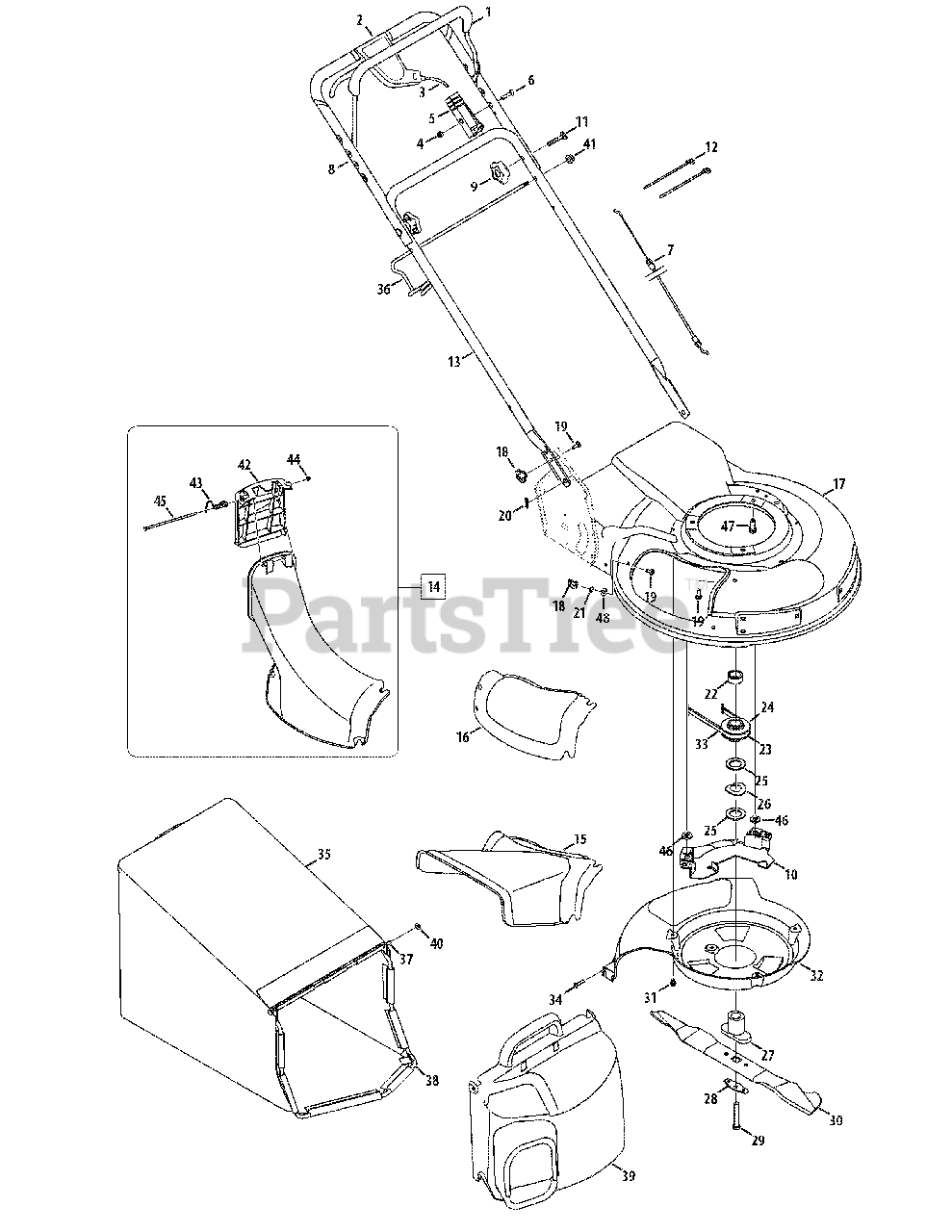

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 753-05096A

Control Lever Assembly
(Superseded to 753-06060A)

$27.99

$

Usually ships in 3-6 days

0

3

MTD 746-0711B

Drive Cable 51"
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

4

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

5

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

6

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

7

MTD 746-0557

Control Cable 47"
(Superseded to 946-0557)

$26.99

$

In Stock, only 1 left!

0

8

MTD 749-0439E

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439E-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

9

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

10

MTD 782-9063

Belt Keeper
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

11

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

12

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

13

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 631-0066

Chute Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

15

MTD 731-1832

Side-Discharge Chute

$

$

Not available

16

MTD 731-1833A

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

17

MTD 782-0078B

Deck 21-inch

Variations

MTD 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

MTD 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

MTD 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

MTD 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

MTD 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

MTD 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

MTD 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

MTD 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

18

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0703

Carriage Bolt 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 726-0233

Push Nut .25 x ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

22

MTD 750-04438A

Slv. Spcr., 25mm x 1.375 x .440

$4.99

$

Usually ships in 3-6 days

0

23

MTD 756-04160

Half Pulley: Key 25mm x 2.62 OD
(Superseded to 956-04160)

$20.99

$

Usually ships in 3-6 days

0

24

MTD 756-04161

Half Pulley: Upper 25mm x 2.62
(Superseded to 956-04161)

$13.99

$

In Stock, only 1 left!

0

25

MTD 736-0277

Flat Washer 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0447

Wave Washer, 1.5 x 1.0 x .029

$4.49

$

In Stock, Qty 20+

0

27

MTD 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

28

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

29

MTD 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

30

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

31

MTD 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 8

0

32

MTD 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

33

MTD 754-0460

Belt 3/8 x 39.24
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

34

MTD 710-0895

HL Screw 1/4-15 x .75

$6.49

$

In Stock, only 4 left!

0

35

MTD 664-0076

Grass Catcher
(Superseded to 964-0076)

$98.99

$

Usually ships in 3-6 days

0

36

MTD 747-0940A

Support Rod w/ Rope Guide
(Superseded to 747-0940A-0637)

Variations

MTD 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

37

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

38

MTD 747-0937

Grass Bag Frame
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

39

MTD 631-0071

Grass Bag Cover

$103.99

$

Usually ships in 3-6 days

0

40

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

41

MTD 712-04063

Hex Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

42

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

43

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

44

MTD 726-0111

Push Cap

$

$

Not available

45

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

46

MTD 736-3010

Washer, Flat, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

47

MTD 710-0654A

Sems Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-3090

Washer, Flat, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0
