12A-989Q795 - MTD Pro Walk-Behind Mower (2007) General Assembly Parts Diagram

Pro Walk-Behind Mower

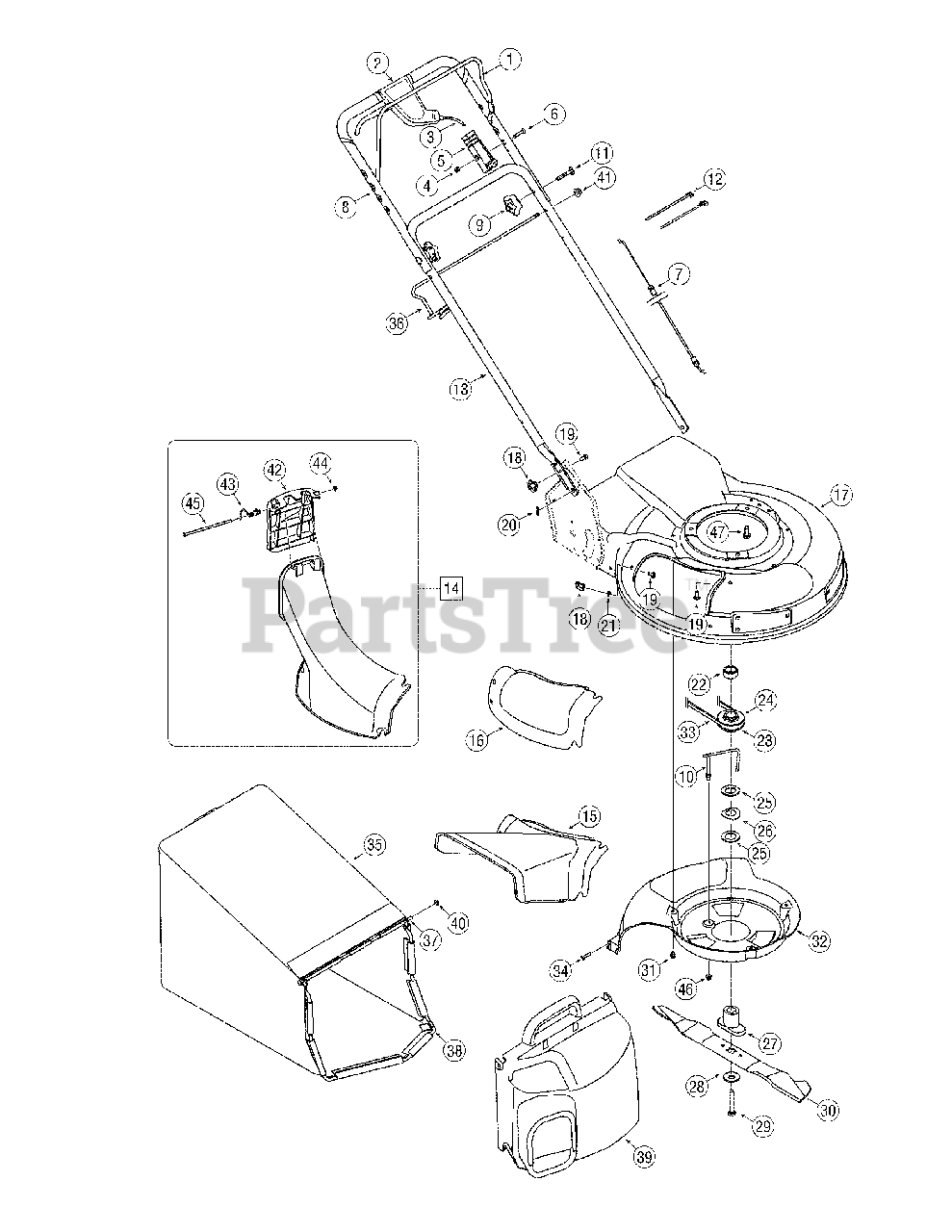

General Assembly Parts Diagram

  • Title

1

MTD 747-0824B-0637

Control Lever

$65.99

$

In Stock, only 1 left!

0

2

MTD 753-06060A

Control Lever Assembly

$27.99

$

In Stock, only 1 left!

0

3

MTD 946-0711B

Drive Cable 51"

$32.99

$

Usually ships in 3-6 days

0

4

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

5

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

6

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

7

MTD 946-0557

Control Cable 47"

$26.99

$

Usually ships in 3-6 days

0

8

MTD 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

9

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 753-05899

Belt Keeper

$

$

Not available

11

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

12

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

13

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 931-0066

Chute Assembly

$115.99

$

Usually ships in 3-6 days

0

15

MTD 731-1832

Side-Discharge Chute

$

$

Not available

16

MTD 931-1833A

Mulch Cover

$44.99

$

In Stock, only 1 left!

0

17

MTD 782-0078B

Deck 21-inch

Variations

MTD 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

MTD 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

MTD 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

MTD 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

MTD 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

MTD 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

MTD 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

MTD 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

18

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0703

Carriage Bolt 1/4-20 x .75"

$4.49

$

In Stock, Qty 15

0

20

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 726-0233

Push Nut .25 x ID x .50 OD

$4.49

$

In Stock, only 3 left!

0

22

MTD 750-04438A

Slv. Spcr., 25mm x 1.375 x .440

$4.99

$

Usually ships in 3-6 days

0

23

MTD 956-04160

Half Pulley: Key 25mm x 2.62 OD

$20.99

$

Usually ships in 3-6 days

0

24

MTD 956-04161

Half Pulley: Upper 25mm x 2.62

$13.99

$

In Stock, only 1 left!

0

25

MTD 736-0277

Flat Washer 1.031 x 1.620 x .095

$4.49

$

In Stock, only 1 left!

0

26

MTD 936-0447

Wave Washer, 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

27

MTD 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

28

MTD 936-0452

Bell Washer, .396 x 1.140 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

29

MTD 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 2 left!

0

30

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

31

MTD 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 13

0

32

MTD 731-08190A

Baffle

$37.99

$

Usually ships in 3-6 days

0

33

MTD 954-0460

Belt 3/8 x 39.24

$19.99

$

Usually ships in 3-6 days

0

34

MTD 710-0895

HL Screw 1/4-15 x .75

$6.49

$

In Stock, Qty 5

0

35

MTD 664-0180

Grass Catcher
(Superseded to 964-0076A)

$98.99

$

Usually ships in 3-6 days

0

36

MTD 747-0940A-0637

Support Rod w/ Rope Guide

$26.99

$

Usually ships in 3-6 days

0

37

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

38

MTD 747-0937-0637

Grass Bag Frame

$58.99

$

Usually ships in 3-6 days

0

39

MTD 631-0071

Grass Bag Cover

$103.99

$

Usually ships in 3-6 days

0

40

MTD 926-0106

Cap Nut
(Superseded to 726-0106)

$

$

Not available

41

MTD 712-04063

Hex Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

42

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

43

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

44

MTD 726-0111

Push Cap

$

$

Not available

45

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

46

MTD 712-04064

Flange Lock Nut, 14-20

$3.99

$

In Stock, Qty 20+

0

47

MTD 710-0654A

Sems Screw 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0
