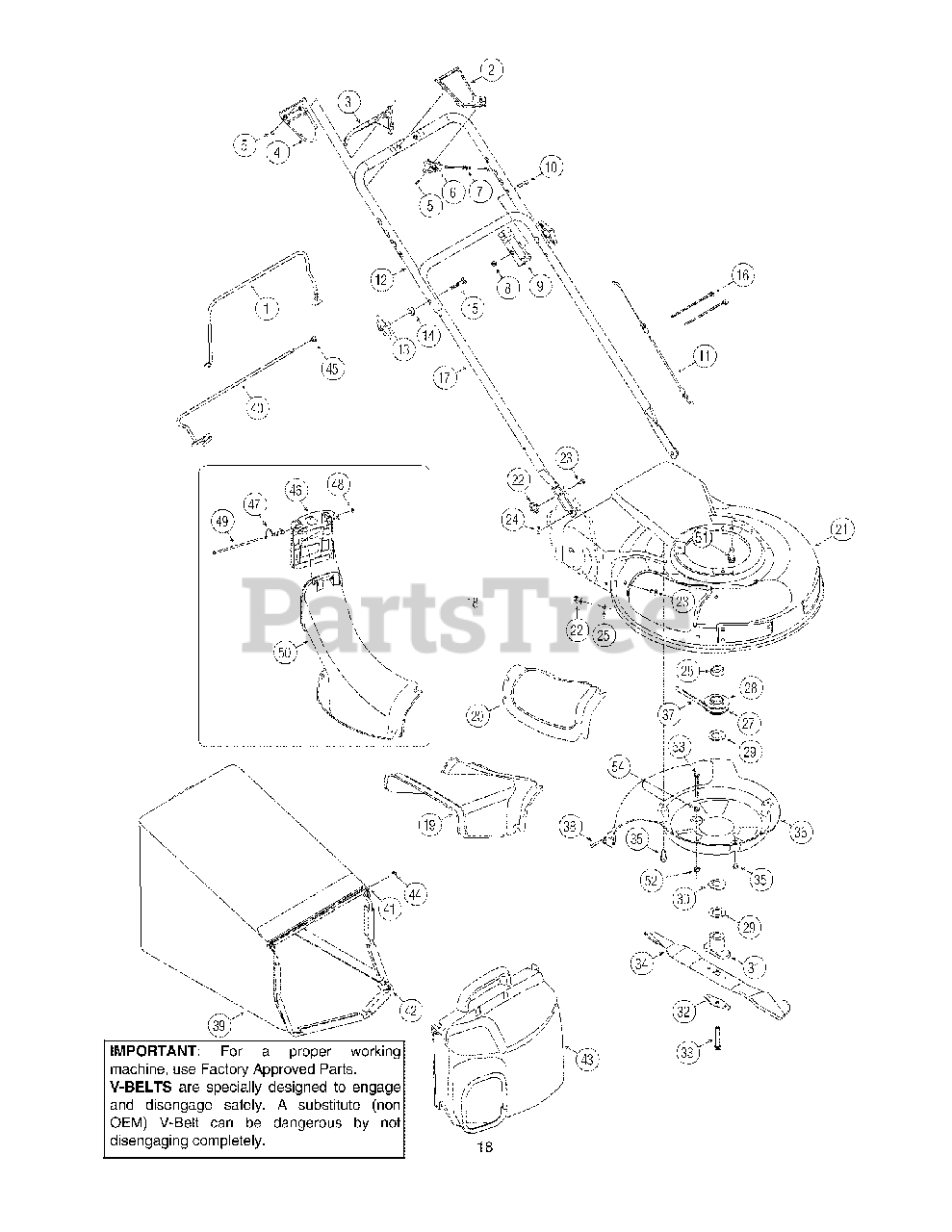

12A-986Q795 - MTD Pro Walk-Behind Mower (2005) Handle and Bag Parts Diagram

Pro Walk-Behind Mower

Handle and Bag Parts Diagram

  • Title

1

MTD 647-0004A

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 753-0833

Upper Control Housing

$50.99

$

In Stock, only 2 left!

0

3

MTD 731-0620A

Control Lever

$15.99

$

In Stock, only 1 left!

0

4

MTD 753-0833

Lower Control Housing

$50.99

$

In Stock, only 2 left!

0

5

MTD 710-1667A

C Sunk Tap Screw #10 x.75 Leg

$4.49

$

In Stock, Qty 13

0

6

MTD 753-0833

Cable Mounting Cap

$50.99

$

In Stock, only 2 left!

0

7

MTD 946-0711B

Drive Cable 51"

$32.99

$

In Stock, only 1 left!

0

8

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

9

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

10

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 946-0557

Control Cable 47"

$26.99

$

In Stock, only 1 left!

0

12

MTD 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

13

MTD 920-0284

Wing Nut
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

14

MTD 936-0451

Saddle Washer.320 ID x.830 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

15

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

16

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

17

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

18

MTD 931-0066

Chute Assembly

$115.99

$

Usually ships in 3-6 days

0

19

MTD 731-1832

Side-Discharge Chute

$

$

Not available

20

MTD 931-1833A

Mulch Cover

$44.99

$

In Stock, only 1 left!

0

21

MTD 782-0078B

Deck 21"

Variations

MTD 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

MTD 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

MTD 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

MTD 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

MTD 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

MTD 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

MTD 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

MTD 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

22

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0703

Carriage Bolt 1/4-20 x .75"

$4.49

$

In Stock, Qty 15

0

24

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

25

MTD 726-0233

Push Nut .25 x ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

26

MTD 750-04438A

Sleeve Spacer 25mm x 1.375 x .440

$4.99

$

Usually ships in 3-6 days

0

27

MTD 956-04160

Half Pulley: Key 25mm x 2.62 OD

$20.99

$

Usually ships in 3-6 days

0

28

MTD 956-04161

Half Pulley: Upper 25mm x 2.62

$13.99

$

In Stock, only 1 left!

0

29

MTD 736-0250

Flat Washer 1.00 x 1.75 x .107

$4.49

$

Usually ships in 3-6 days

0

30

MTD 736-04173

Spring Washer 1.005 x 1.825 x .048

$13.99

$

In Stock, only 2 left!

0

31

MTD 748-04082

Blade Adapter Kit

$37.99

$

Usually ships in 3-6 days

0

32

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 3 left!

0

33

MTD 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

34

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

35

MTD 710-0653

Screw 1/4-20 x 0.375"

$4.49

$

In Stock, Qty 8

0

36

MTD 731-08190A

Baffle

$37.99

$

In Stock, only 1 left!

0

37

MTD 954-0460

Belt 3/8 x 39.24

$19.99

$

In Stock, Qty 20+

0

38

MTD 710-0969

HL Screw #12-16 x 1.00

$4.49

$

In Stock, only 2 left!

0

39

MTD 964-0076

Grass bag

$98.99

$

Usually ships in 3-6 days

0

40

MTD 747-0940A-0637

Support Rod w/ Rope Guide

$26.99

$

Usually ships in 3-6 days

0

41

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

42

MTD 747-0937-0637

Grass bag Frame

$58.99

$

Usually ships in 3-6 days

0

43

MTD 631-0071

Grass bag Cover

$103.99

$

Usually ships in 3-6 days

0

44

MTD 926-0106

Cap Nut
(Superseded to 726-0106)

$

$

Not available

45

MTD 912-0429

Hex Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

46

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

47

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

48

MTD 726-0111

Push Cap

$

$

Not available

49

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

50

MTD 931-0066

Discharge Chute

$115.99

$

Usually ships in 3-6 days

0

51

MTD 710-0654A

Sems Screw 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

52

MTD 912-3027

Flange Lock Nut, 14-20

$4.49

$

In Stock, Qty 17

0

53

MTD 710-1802

Special Screw

$

$

Not available

54

MTD 912-0287

Hex Nut, 1/4-20

$4.99

$

In Stock, only 1 left!

0
