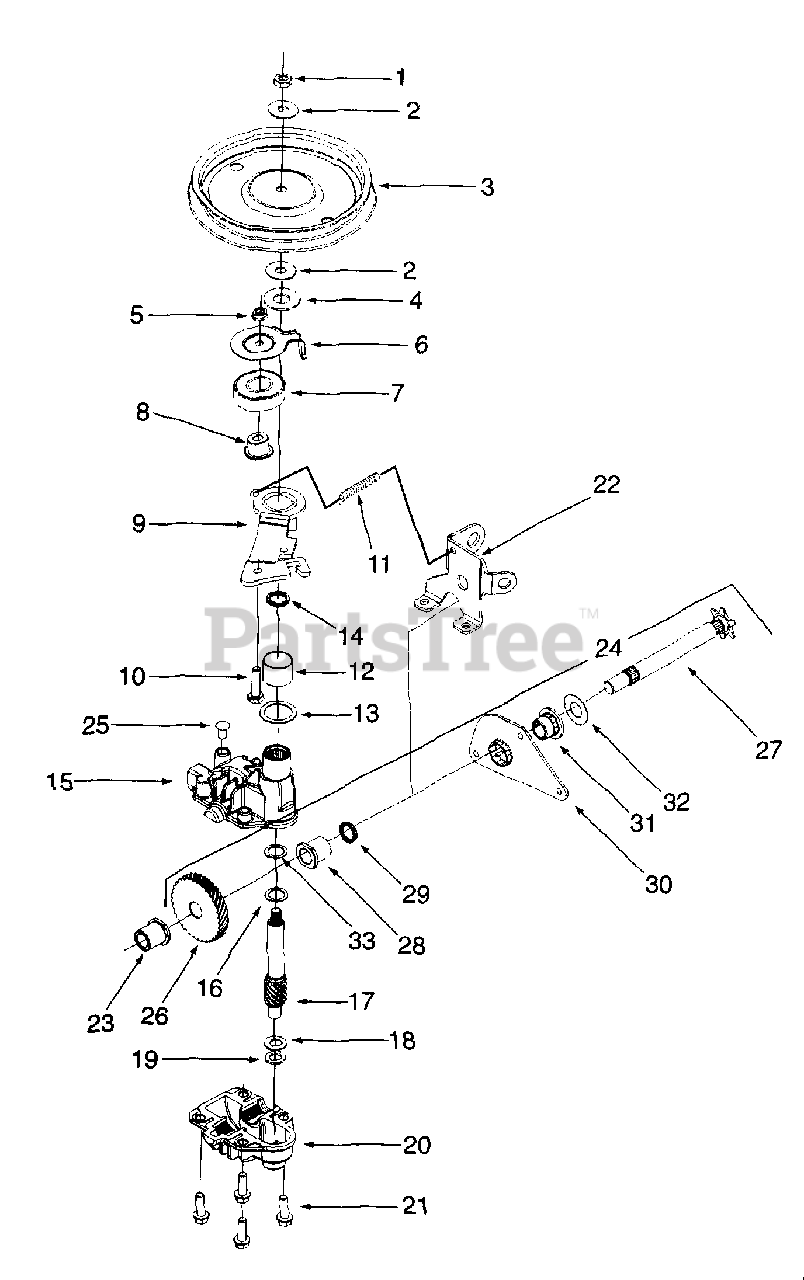

12A-979L402 - Yard-Man Walk-Behind Mower (1999) (Sears) Drive Parts Diagram

Walk-Behind Mower

Drive Parts Diagram

  • Title

1

MTD 712-3025

Hx. Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

2

MTD 736-0425

Bell Wash. .325 x .930 x .045

$4.99

$

In Stock, Qty 13

0

3

MTD 756-0656

Pulley

$36.99

$

Usually ships in 3-6 days

0

4

MTD 736-3084

Fl. Wash. .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

5

MTD 712-0896

Hx. Jam Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

6

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

7

MTD 741-0600

Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

8

MTD 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

9

MTD 682-0027A

Idler Bracket Assembly
(Superseded to 982-0027A)

$

$

Not available

10

MTD 710-0299

Hx. Cap Scr. 1/4-28 x 1.00 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

11

MTD 732-0849A

Extension Spring
(Superseded to 932-0849A)

$4.49

$

In Stock, only 1 left!

0

12

MTD 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

13

MTD 736-0570

Fl. Wash. .885 x 1.145 x .030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

14

MTD 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

15

MTD 618-0253

Upper Housing Assembly

$

$

Not available

16

MTD 736-0616

Thrust Wash. .504 x .700 x .030
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

17

MTD 717-1487

Pinion Shaft 10T.
(Superseded to 917-1487)

$68.99

$

Usually ships in 3-6 days

0

18

MTD 736-0314

Thr. Wash .3/8 x .70 x .030

$6.99

$

Usually ships in 3-6 days

0

19

MTD 736-0569

Thr. Wash. .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

20

MTD 618-0252

Lower Housing Assembly
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

21

MTD 710-0642

Hx. Scr. 1/2-20 x .75

$4.49

$

In Stock, Qty 20+

0

22

MTD 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

MTD 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 741-0674

Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

24

MTD 611-0066

Shaft Assembly
(Superseded to 911-0066)

$

$

Not available

25

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

26

MTD 717-1469

Gear 34 T.

$63.99

$

Usually ships in 3-6 days

0

27

MTD 711-1168

Output Shaft 6 T.

$31.99

$

Usually ships in 3-6 days

0

28

MTD 741-0672

Flange Bearing

$

$

Not available

29

MTD 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

30

MTD 782-7595

Pivot Bracket

$26.99

$

Usually ships in 3-6 days

0

31

MTD 741-0324

Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

32

MTD 736-0369

Wash. Fl. .508 I.D. x 1.00 O.D. x .020

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-0690

Bearing

$4.99

$

Usually ships in 3-6 days

0
