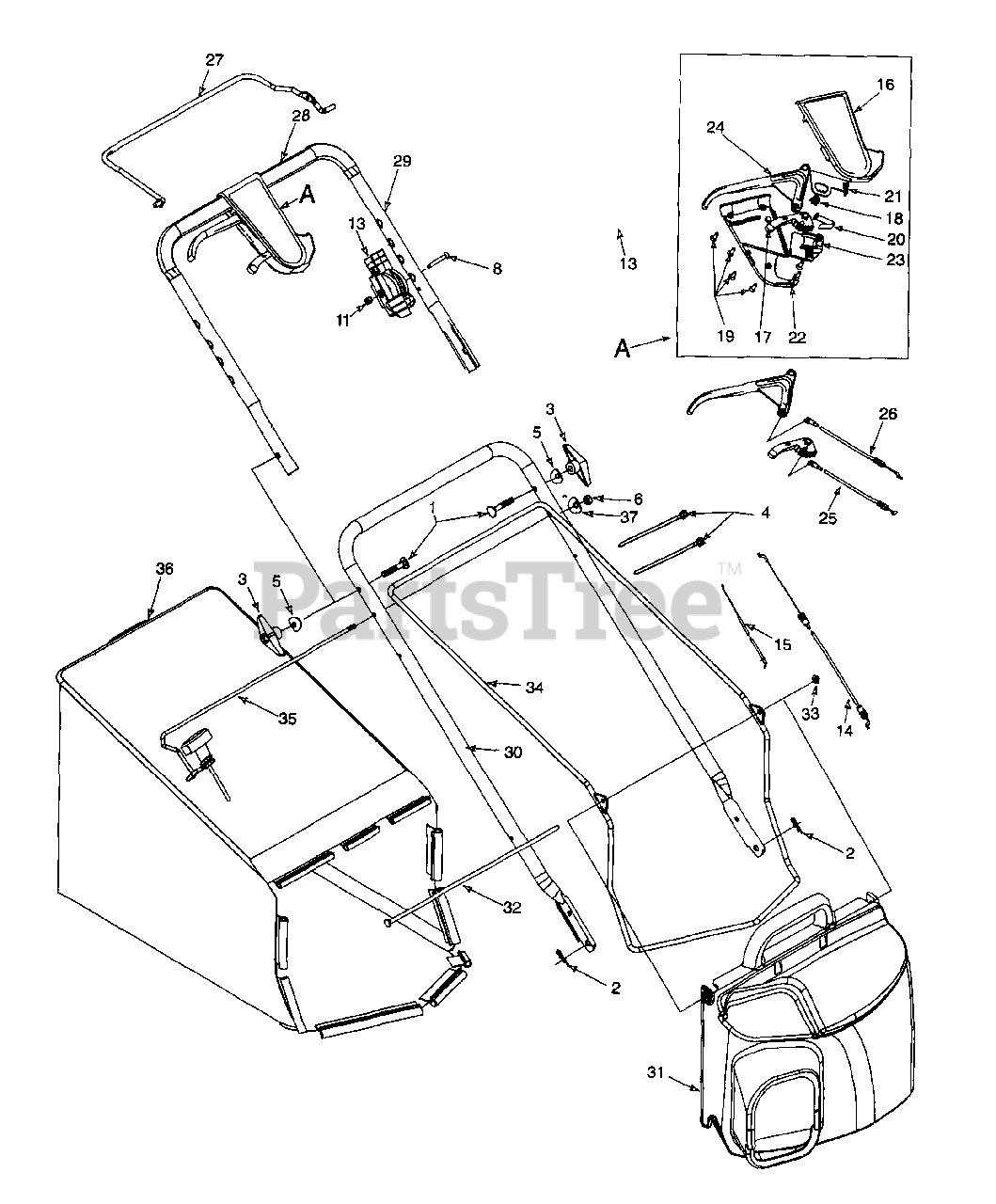

12A-979L401 - Yard-Man Walk-Behind Mower (1999) Handle Assembly Parts Diagram

Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

MTD 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 720-0241

Knob Ass'y Wingnut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

MTD 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0451

Wash. Sad. .320 ID x .830 OD

$4.49

$

In Stock, Qty 11

0

6

MTD 712-0429

Hex Nut 5/16

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

11

MTD 712-0324

Nut 1/4-20 Top locknut Insert

$3.99

$

In Stock, Qty 16

0

13

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

14

MTD 746-0912

Control Cable 47" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

15

UNKNOWN

$

$

Not available

16

MTD 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

18

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

MTD 710-1667

C Sunk Tap Screw #10 x .75 L
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

20

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

MTD 16664

6 Spd. Rack Cable Brkt.

$

$

Currently unavailable

22

MTD 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

MTD 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

26

MTD 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

27

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

28

MTD 720-0294

Foam Grip (2 Reqd.)
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

29

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

30

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

MTD 631-0071

Grassbag Cover w/Label

$103.99

$

Usually ships in 3-6 days

0

32

MTD 747-0939

Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

33

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

MTD 747-0937

Frame - Grassbag
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

35

MTD 747-0940A

Rod, Support w/Rope Guide
(Superseded to 747-0940A-0637)

Variations

MTD 747-0940A-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

MTD 664-0074

Grassbag
(Superseded to 964-0076A)

$98.99

$

Usually ships in 3-6 days

0

37

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0
