12A-979L401 - Yard-Man Walk-Behind Mower (1999) General Assembly Parts Diagram

Walk-Behind Mower

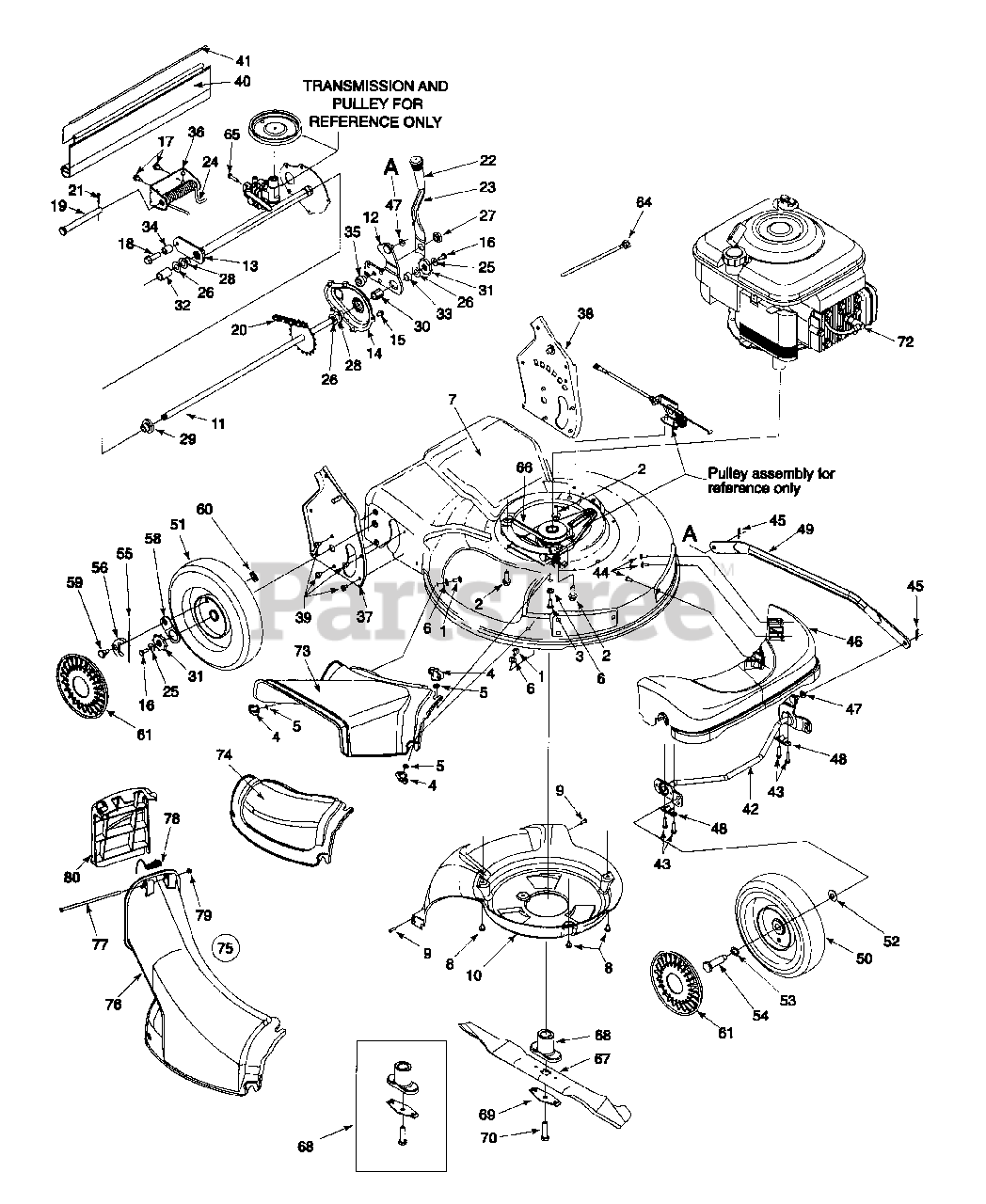

General Assembly Parts Diagram

  • Title

1

MTD 710-0134

Scr. Carr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0654A

Scr. TT:3/8-18:1.00

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0703

Scr. 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

MTD 726-0233

Nut, Push .25 I.D. x .50 O.D.

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0204

Wash. Fl, .334 I.D. x .62 x .03

$4.49

$

In Stock, Qty 20+

0

7

MTD 782-0078

Deck - 21"
(Superseded to 782-0078B)

Variations

MTD 782-0078-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

$

$

8

MTD 710-0653

Scr. TT. 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

9

MTD 710-0969

Scr. HL. 1/2-14 x .750

$4.49

$

In Stock, only 2 left!

0

10

MTD 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

11

MTD 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

12

MTD 682-0531

Pivot Arm Ass'y
(Superseded to 682-0531-0637)

Variations

MTD 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

13

MTD 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

MTD 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

MTD 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

MTD 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 710-0653

Scr. TT 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

16

MTD 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-1652

Scr. AB 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-1315

Scr. 3/8 116 x .25

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0835

Clevis Pin .50 Dia. x 4.82 Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

20

MTD 713-0453

Chain-Endls. #48 .500P x 24L
(Superseded to 913-0453)

$12.99

$

In Stock, only 2 left!

0

21

MTD 714-0474

Cotter Pin .125 O.D. x .75

$4.99

$

In Stock, Qty 13

0

22

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

23

MTD 732-0803

Spring Lever
(Superseded to 732-0803A)

$15.99

$

In Stock, Qty 16

0

24

MTD 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

MTD 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0369

Fl. Wash. .508 I.D. 1.000 x .

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-0529

Nut Shld. .825 Dia. x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

28

MTD 741-0324

Hx. Flg. Brg. .506 I.D. x .590 L.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

29

MTD 741-0522

Hx. Flg. Brg. .506 I.D. x .715 L.

$

$

Not available

30

MTD 741-0978

Hx. Slv. Brg. .504 I.D. x .830 L.

$4.99

$

In Stock, only 3 left!

0

31

MTD 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

32

MTD 750-0151

Spa. .550 I.D. x /750 O.D.
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

MTD 750-0515

Spa. .51 .D. x .70 O.D. x 38 L.

$4.49

$

In Stock, only 4 left!

0

34

MTD 750-0807

Spa. .385 x .624 x .700

$6.49

$

Usually ships in 3-6 days

0

35

MTD 750-1056

Shld. Spa. .385 I.D. X .715 Lg.
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

36

MTD 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

MTD 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 682-3052

Handle Brkt. Ass'y. R.H.

Variations

MTD 682-3052-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3052-0637

Handle Bracket Assembly - RH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3052-0716

No Longer Available BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3052-0650

No Longer Available BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

MTD 682-3052-0662

Handle Brkt. Ass'y. R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

38

MTD 682-3053

Handle Brkt. Ass'y. L.H.

Variations

MTD 682-3053-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3053-0637

Handle Bracket Assembly - LH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3053-0650

No Longer Available BRACKET HA - RED METALLIC (0650)

$

$

Not available

MTD 682-3053-0716

No Longer Available BRACKET HA - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3053-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3053-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3053-0665

Handle Brkt. Ass'y. L.H. - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3053-0689

No Longer Available BRACKET HA - POLO GREEN (0689)

$

$

Not available

MTD 682-3053-4015

No Longer Available BRACKET HA - FIRE RED (4015)

$

$

Not available

$

$

39

MTD 710-1348

Scr. AB 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

40

MTD 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

41

MTD 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

42

MTD 611-0064

Fr. Axle Ass'y.
(Superseded to 611-0064-0637)

Variations

MTD 611-0064-0498

Front Axle Assembly, Black - OLD CUB YELLOW (0498)

$97.99

$

Usually ships in 3-6 days

0

MTD 611-0064-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$97.99

$

Usually ships in 3-6 days

0

MTD 611-0064-0665

Front Axle Assembly, Black - YARDMAN GREEN (0665)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

43

MTD 710-1241

Hx Scr. Wash Hd. Hi.-Lo.

$6.99

$

In Stock, Qty 16

0

44

MTD 710-1242

Scr. Torx, Truss Hi.-Lo.

$4.99

$

In Stock, Qty 19

0

45

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

46

MTD 731-1829

Fr. Axle Cover, Yellow
(Superseded to 931-1829)

$142.99

$

In Stock, only 2 left!

0

47

MTD 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

48

MTD 741-0492A

Bush. Block .505 Dia. x .62

$6.49

$

In Stock, Qty 9

0

49

MTD 782-0565

Control Arm
(Superseded to 782-0565-0637)

Variations

MTD 782-0565-0498

ARM-CONTROL SGL LV - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

MTD 782-0565-0637

ARM-CONTROL SGL LV - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

MTD 782-0565-0665

ARM-CONTROL SGL LV - YARDMAN GREEN (0665)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

50

MTD 734-1978

Wheel 8 x 2 Link, Yellow

$48.99

$

Usually ships in 3-6 days

0

51

MTD 734-1981

Wheel 9 x 2 Link Yellow, Slv.
(Superseded to 734-1981A)

$46.99

$

In Stock, Qty 12

0

52

MTD 736-0105

Spr. Wash. .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0504

Wave Wash .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

54

MTD 738-0102

Shldr Scr .498 x 1.445 x 3/8-16

$9.99

$

In Stock, Qty 10

0

55

MTD 10622B

Spring, Ratchet, Plastic

$5.49

$

In Stock, Qty 20+

0

56

MTD 748-0381

Pawl - R.H.

$11.99

$

Usually ships in 3-6 days

0

56

MTD 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

$

$

Not available

58

MTD 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

59

MTD 738-0137A

Scr. Shld. .340 x .285

$10.99

$

In Stock, Qty 10

0

60

MTD 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

61

MTD 731-1426

Hubcap - Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

62

MTD 710-1237

Screw .620 Hx. Slt. Wsh.

$4.49

$

Usually ships in 3-6 days

0

63

MTD 751B213146

Casing Clamp, Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

64

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

65

MTD 710-0604

Hex Scr. 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

66

MTD 754-0460

V-Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

67

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

MTD 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 12

0

69

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

70

MTD 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

72

MTD 735-0639

Spark Plug Insulator

$

$

Not available

73

MTD 731-1832

Side Discharge Chute

$

$

Not available

74

MTD 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 2 left!

0

75

MTD 631-0066

Chute Ass'y
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

76

MTD 731-1713A

Discharge Chute
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

77

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

78

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

79

MTD 726-0111

Push Cap

$

$

Not available

80

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0
