12A-979K730 - Huskee Walk-Behind Mower (2005) (Tractor Supply) General Assembly Parts Diagram

Walk-Behind Mower

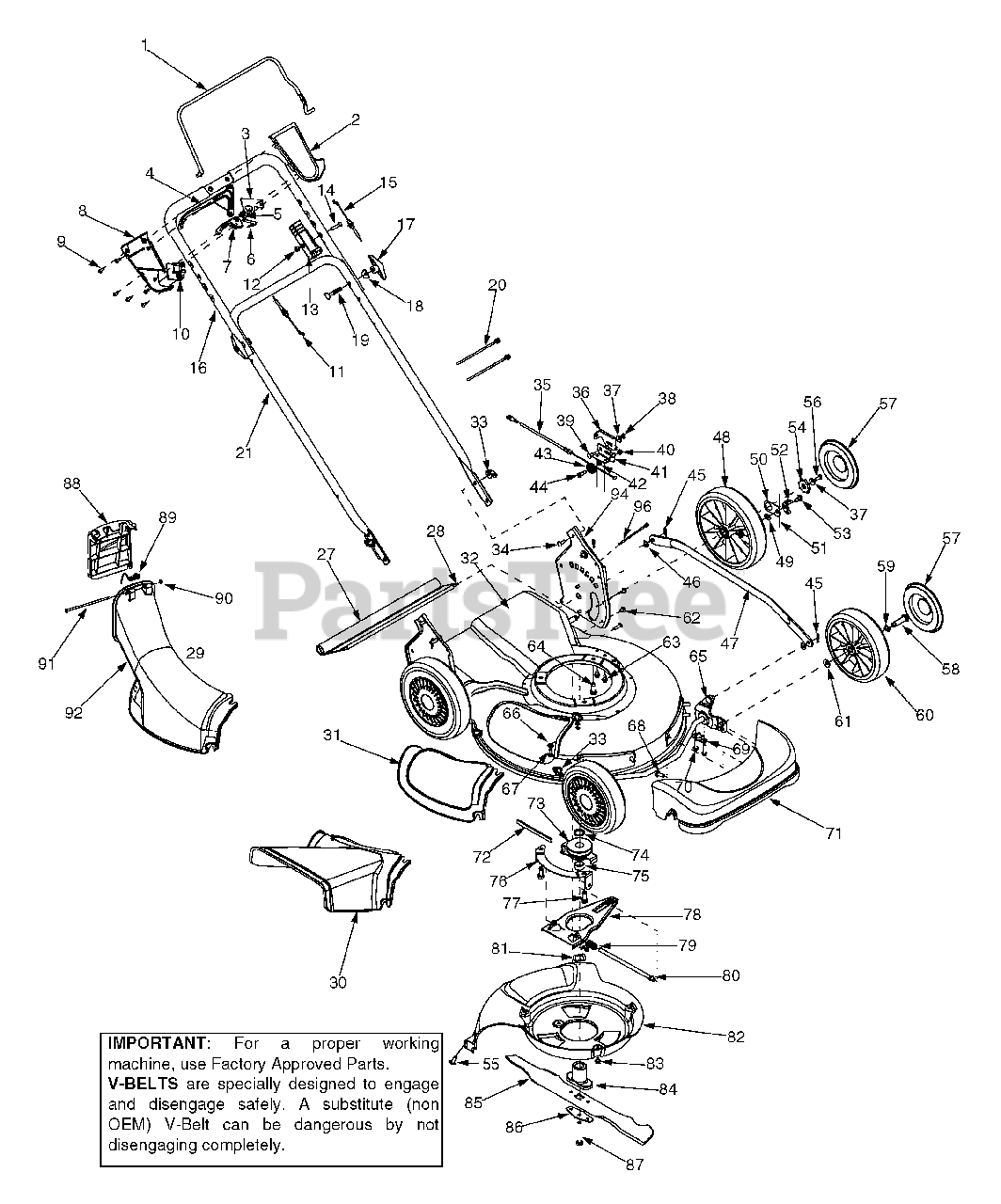

General Assembly Parts Diagram

  • Title

1

MTD 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

3

MTD 16864

6 Speed Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

4

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

5

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

6

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

7

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

8

MTD 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

9

MTD 710-1667A

C Sunk Tap Screw #10 x .75 Lg

$4.49

$

In Stock, Qty 13

0

10

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

11

MTD 746-0711B

Drive Cable 51.0
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

12

MTD 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

13

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

14

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

15

MTD 746-1131

Control Cable 46"
(Superseded to 946-1131)

$24.99

$

Usually ships in 3-6 days

0

16

MTD 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

17

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

18

MTD 736-0451

Saddle Washer .320 ID x .830 OD

$4.49

$

In Stock, Qty 11

0

19

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

20

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

21

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

27

MTD 731-1901A

Trail Shield

$40.99

$

In Stock, only 2 left!

0

28

MTD 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

29

MTD 631-0066

Chute Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

30

MTD 731-1832

Side Discharge Chute

$

$

Not available

31

MTD 731-1833A

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

32

MTD 782-0078B

Deck 21"

Variations

MTD 782-0078B-0638

DECK-21" W/O ICON - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0078B-0665

DECK-21" W/O ICON - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0078B-0689

DECK-21" W/O ICON - POLO GREEN (0689)

$

$

Not available

MTD 782-0078B-0716

DECK-21" W/O ICON - CUB YELLOW-99 (0716)

$

$

Not available

MTD 782-0078B-4015

DECK-21" W/O ICON - FIRE RED (4015)

$

$

Not available

MTD 782-0078B-0606

DECK-21" W/O ICON - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0078B-0629

DECK-21" W/O ICON - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0078B-0650

DECK-21" W/O ICON - RED METALLIC (0650)

$

$

Not available

MTD 782-0078B-0691

DECK-21" W/O ICON - BLACK JACK (0691)

$

$

Not available

MTD 782-0078B-0729

DECK-21" W/O ICON - STORM GRAY (0729)

$

$

Not available

MTD 782-0078B-4021

DECK-21" W/O ICON - CUB YELLOW 2 (4021)

$

$

Not available

MTD 782-0078B-4028

DECK-21" W/O ICON - SEARS YELLOW (4028)

$

$

Not available

$

$

33

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0703

Carriage Bolt 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

35

MTD 746-0939A

6 Speed Cable 53"
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

36

MTD 782-7574A

Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

MTD 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

39

MTD 710-0167

Carriage Screw 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

40

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

41

MTD 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

MTD 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

44

MTD 738-0924

Shoulder Screw .375 ID x 1/4-14
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

45

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

47

MTD 782-0565

Single Lever Control Arm
(Superseded to 782-0565-0637)

Variations

MTD 782-0565-0498

ARM-CONTROL SGL LV - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

MTD 782-0565-0637

ARM-CONTROL SGL LV - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

MTD 782-0565-0665

ARM-CONTROL SGL LV - YARDMAN GREEN (0665)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

48

MTD 734-2044

Wheel 9 x 2.125
(Superseded to 734-2044B)

$51.99

$

In Stock, only 2 left!

0

49

MTD 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

50

MTD 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

51

MTD 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

52

MTD 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

52

MTD 748-0188B

Pawl LH
(Superseded to 948-0188B)

$

$

Not available

53

MTD 738-0137A

Shld Screw .340 ID x .285 OD

$10.99

$

In Stock, Qty 10

0

54

MTD 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

55

MTD 710-0969

HL Screw #12 -16 x 1.00

$4.49

$

In Stock, only 2 left!

0

56

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

57

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

58

MTD 738-0102

Shoulder Screw .498 x 1.445

$9.99

$

In Stock, Qty 10

0

59

MTD 736-0504

Wave Washer .510 ID x .750 OD
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

60

MTD 734-2004A

Wheel 8 x 2.125
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

61

MTD 736-0105

Spring Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-1348

Screw 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

63

MTD 710-1652

Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

64

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

65

MTD 611-0064

Front Axle Assembly
(Superseded to 611-0064-0637)

Variations

MTD 611-0064-0498

Front Axle Assembly, Black - OLD CUB YELLOW (0498)

$97.99

$

Usually ships in 3-6 days

0

MTD 611-0064-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$97.99

$

Usually ships in 3-6 days

0

MTD 611-0064-0665

Front Axle Assembly, Black - YARDMAN GREEN (0665)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

66

MTD 736-0204

Flat Washer .344 ID x .62 OD

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

68

MTD 710-1242

Torx Screw

$4.99

$

In Stock, Qty 19

0

69

MTD 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

70

MTD 710-1241

Hex Washer Screw

$6.99

$

In Stock, Qty 18

0

71

MTD 731-1834

Front Axle Cover

$117.99

$

Usually ships in 3-6 days

0

72

MTD 754-0460

Belt 3/8 x 39.24
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 20+

0

73

MTD 656-0613

Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

74

MTD 750-1071

Sleeve Spacer .88 ID x 1.13 OD
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

75

MTD 750-1070

Sleeve Spacer .88 ID x 1.00 OD
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

76

MTD 782-7597

Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

77

MTD 710-0654A

Screw 3/8-18 x 1.0

$4.49

$

In Stock, only 4 left!

0

78

MTD 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

MTD 782-7596-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

79

MTD 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

80

MTD 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

81

MTD 736-0526

Wave Washer 1.38 ID x .88 OD

$6.99

$

Usually ships in 3-6 days

0

82

MTD 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

83

MTD 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 8

0

84

MTD 748-0377C

Blade Adapter Kit
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

85

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

86

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

87

MTD 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

88

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

89

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

90

MTD 726-0111

Push Cap

$

$

Not available

91

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

92

MTD 731-1713B

Discharge Chute
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

94

MTD 682-3052

Handle Bracket Assembly - RH

Variations

MTD 682-3052-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3052-0637

Handle Bracket Assembly - RH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3052-0716

No Longer Available BRACKET HANDLE RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3052-0650

No Longer Available BRACKET HANDLE RH - RED METALLIC (0650)

$

$

Not available

MTD 682-3052-0662

Handle Brkt. Ass'y. R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

94

MTD 682-3053

Handle Bracket Assembly - LH

Variations

MTD 682-3053-0498

No Longer Available BRACKET HA - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3053-0637

Handle Bracket Assembly - LH - POWDER BLACK (0637)

$

$

Not available

MTD 682-3053-0650

No Longer Available BRACKET HA - RED METALLIC (0650)

$

$

Not available

MTD 682-3053-0716

No Longer Available BRACKET HA - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-3053-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3053-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3053-0665

Handle Brkt. Ass'y. L.H. - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3053-0689

No Longer Available BRACKET HA - POLO GREEN (0689)

$

$

Not available

MTD 682-3053-4015

No Longer Available BRACKET HA - FIRE RED (4015)

$

$

Not available

$

$

95

MTD 682-7527

Cup Assembly (Part of #73)

$29.99

$

Usually ships in 3-6 days

0

96

MTD 725-0157

Cable Tie 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0
