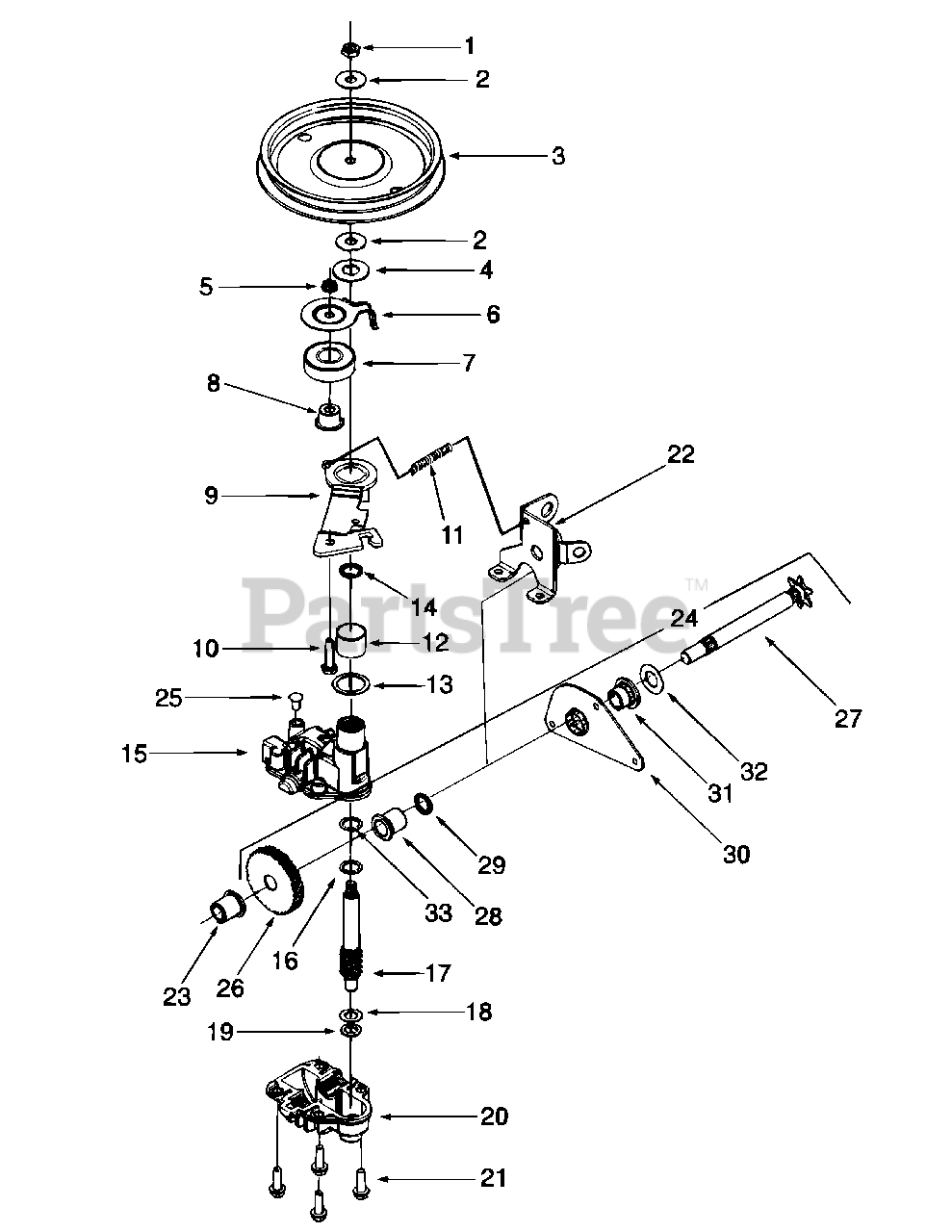

12A-978Q597 - Columbia 21" Walk-Behind Mower (2008) Transmission Assembly Parts Diagram

21" Walk-Behind Mower

Transmission Assembly Parts Diagram

  • Title

1

White Outdoor 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0425

Cupped Washer .325 ID x .930 OD x .04

$4.99

$

In Stock, Qty 13

0

3

White Outdoor 756-0656

Pulley

$36.99

$

Usually ships in 3-6 days

0

4

White Outdoor 736-3084

Fl. Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0896

Hex Ins Jam L-Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

6

White Outdoor 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

7

White Outdoor 741-0124

Ball Bearing 17 x 40 x 12 mm
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

8

White Outdoor 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

9

White Outdoor 682-0027A

Idler Bracket Ass’y
(Superseded to 982-0027A)

$

$

Not available

10

White Outdoor 710-0299

Hex Bolt 1/4-28 x 1" Lg

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 732-0849A

Extension Spring 0.33 OD x 1.25
(Superseded to 932-0849A)

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

13

White Outdoor 736-0570

Fl. Washer .885 x 1.145 x .030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

14

White Outdoor 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

15

White Outdoor 618-0253

Upper Housing Ass’y

$

$

Not available

16

White Outdoor 736-0616

Thrust Washer .510 ID x .750 OD x .033
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

17

White Outdoor 717-1487

Pinion Shaft 10 T
(Superseded to 917-1487)

$68.99

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0314

Thrust Washer .382 ID x .70 OD

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0569

Thrust Washer .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

20

White Outdoor 618-0252

Lower Housing Ass’y
(Superseded to 918-0252)

$42.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 782-7601A

Cable Bracket
(Superseded to 782-7601A-0637)

Variations

White Outdoor 782-7601A-0637

BRACKET. CABLE GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 741-0674

Bearing
(Superseded to 941-0674)

$8.99

$

Usually ships in 3-6 days

0

24

White Outdoor 611-0066

Shaft Ass’y
(Superseded to 911-0066)

$

$

Not available

25

White Outdoor 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 717-1469

Gear 34 T

$63.99

$

Usually ships in 3-6 days

0

27

White Outdoor 711-1168

Output Shaft 6 T

$31.99

$

Usually ships in 3-6 days

0

28

White Outdoor 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

30

White Outdoor 782-7595

Pivot Bracket

$26.99

$

Usually ships in 3-6 days

0

31

White Outdoor 741-0324A

Flange Bearing .506 ID

$7.99

$

In Stock, Qty 5

0

32

White Outdoor 736-0369

Washer, Flat .505 ID x 1.0

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 741-0690

Thrust Bearing .507 ID x .750 OD x .0625

$4.99

$

Usually ships in 3-6 days

0
