12A-976B597 - Columbia 21" Walk-Behind Mower (2009) Drive Assembly 976 Parts Diagram

21" Walk-Behind Mower

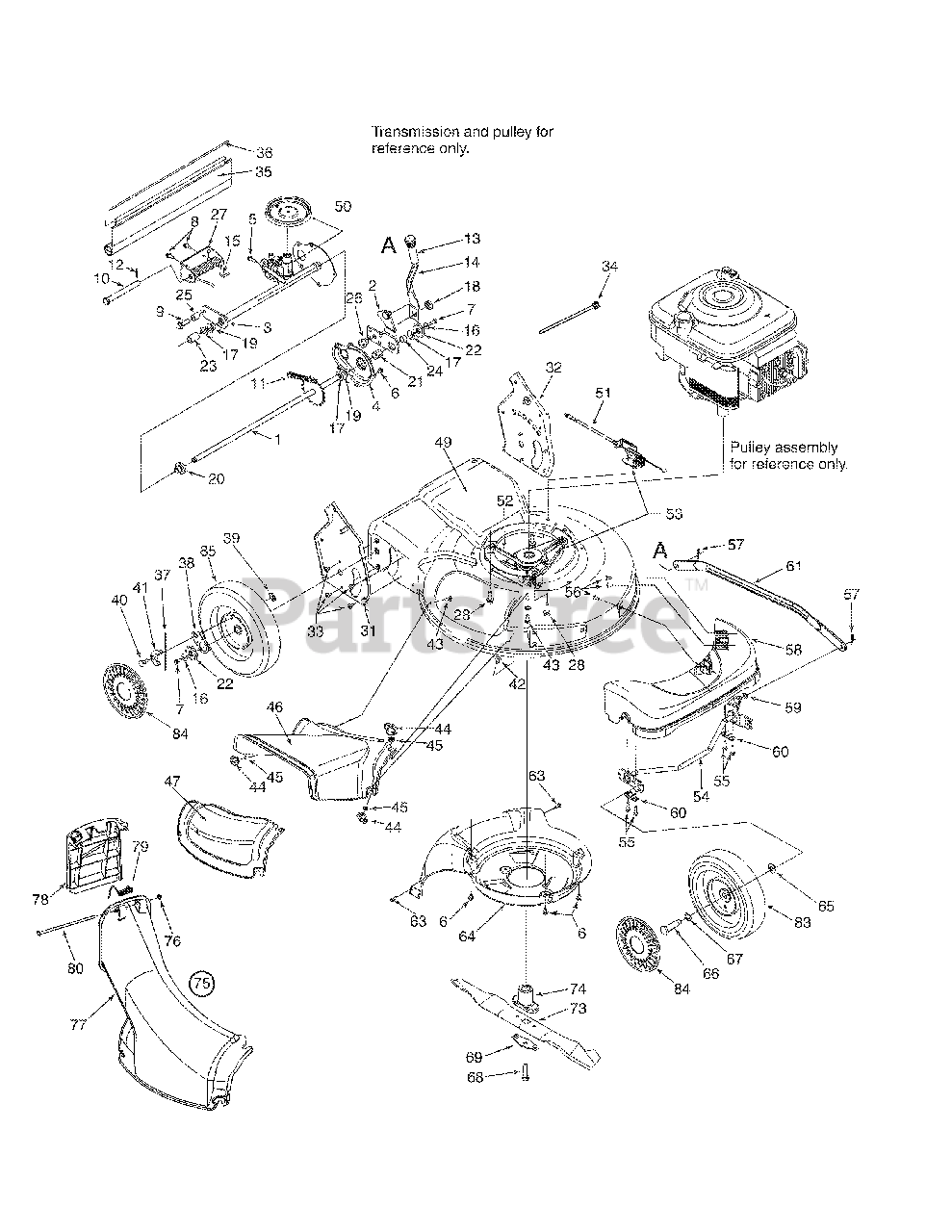

Drive Assembly 976 Parts Diagram

  • Title

1

White Outdoor 638-0012

Axle Ass’y 20T x 21.46" Lg.
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

2

White Outdoor 682-0531-0637

Pivot Arm Ass’y

$30.99

$

Usually ships in 3-6 days

0

3

White Outdoor 682-7526-0637

Trans Axle Ass’y

$131.99

$

Usually ships in 3-6 days

0

4

White Outdoor 682-7528-0637

Chain Cover

$

$

Not available

5

White Outdoor 710-0604A

Hex Wash HD Scr 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .38

$4.49

$

In Stock, Qty 7

0

7

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-1652

Hex Wash HD. TT Tap Scr. 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 911-0835

Clevis Pin .5" Dia. x 4.62" Lg.

$12.99

$

In Stock, only 3 left!

0

11

White Outdoor 913-0453

Chain, No. 48 End less .50 x 24 links

$12.99

$

In Stock, only 2 left!

0

12

White Outdoor 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

13

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

14

White Outdoor 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

15

White Outdoor 732-0832

RH Torsion Sprocket

$19.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0270

Cupped Wash. .25 ID x .88 OD x .062

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 936-0369

Washer, Flat .505 ID x 1.0
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 938-0529

Shoulder Nut .625 DIA. x .165

$11.99

$

In Stock, only 2 left!

0

19

White Outdoor 741-0324A

Flange Bearing .506 ID

$7.99

$

In Stock, Qty 5

0

20

White Outdoor 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$

$

Not available

21

White Outdoor 741-0978

Hex Sleeve Bearing .504 x .830 Lg.

$4.99

$

In Stock, only 3 left!

0

22

White Outdoor 948-0318

Ratchet Wheel

$10.99

$

In Stock, Qty 15

0

23

White Outdoor 950-0151

Spacer .55 ID x .75

$10.99

$

In Stock, Qty 20+

0

24

White Outdoor 750-0515

Sleeve .511 id x .70 od x .37" lg.

$4.49

$

In Stock, only 4 left!

0

25

White Outdoor 750-0807

Spacer .38 x .625" Lg.

$6.49

$

Usually ships in 3-6 days

0

26

White Outdoor 950-1056

Shoulder Spacer .385 ID x .715" Lg.

$7.49

$

Usually ships in 3-6 days

0

27

White Outdoor 782-0568-0637

Spring Bracket
(Superseded to 782-0568B-0637)

$

$

Not available

28

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-1237

Hex Wash Hd Screw 10-32 x 5/8

$4.49

$

Usually ships in 3-6 days

0

30

White Outdoor 751B213146

Clamp Casing - Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

31

White Outdoor 682-3052-0637

Handle Brkt. Ass’y RH

$

$

Not available

32

White Outdoor 682-3053-0637

Handle Brkt. Ass’y LH

$

$

Not available

33

White Outdoor 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

34

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 731-1901A

Rear Flap 17.25" Lg.

$40.99

$

In Stock, only 2 left!

0

36

White Outdoor 732-0842

Rear Flap Wire

$6.49

$

In Stock, Qty 6

0

37

White Outdoor 10622BP

Spring Nylon
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

38

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

39

White Outdoor 912-0414

Toplock Flat Weldnut 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 938-0137A

Shoulder Screw .340 x .285: 1/4-20
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

41

White Outdoor 948-0188B

Pawl LH (Not Shown)

$

$

Not available

41

White Outdoor 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

42

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0703

Carriage Bolt 1/4-10 x .75

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 731-1832

Side Chute

$

$

Not available

47

White Outdoor 931-1833A

Retainer Baffle

$44.99

$

In Stock, only 2 left!

0

49

White Outdoor 782-0078B-0606

Deck Ass’y (w/o logo)

$

$

Not available

50

White Outdoor 918-0263A

Transmission Ass’y

$

$

Not available

51

White Outdoor 746-0711B

SP Cable 51.0" Lg.
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

52

White Outdoor 954-0460

V-Belt 3/8 x 39.24" Lg.

$19.99

$

In Stock, Qty 20+

0

53

N/A

Pulley (6 speed Actuator)

Note: Refer to Pulley Assembly

$

$

Not available

54

White Outdoor 611-0064-0637

Axle Ass’y

$97.99

$

Usually ships in 3-6 days

0

55

White Outdoor 710-1241

Hex Wash. Hd. B-Tap Scr. 1/4 x 1.0"

$6.99

$

In Stock, Qty 16

0

56

White Outdoor 710-1242

Torx Hd. Scr. 5/16 x .75

$4.99

$

In Stock, Qty 19

0

57

White Outdoor 914-0104

Int. Cotter Pin 5/16 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 731-1834

Front Cover- Grey

$117.99

$

Usually ships in 3-6 days

0

59

White Outdoor 936-0286

Bowed Washer

$6.99

$

In Stock, only 2 left!

0

60

White Outdoor 741-0492A

Bush ing Block .505 dia.

$6.49

$

In Stock, Qty 9

0

61

White Outdoor 782-0565-0637

Single Lever Arm Control

$34.99

$

Usually ships in 3-6 days

0

63

White Outdoor 710-0895

Screw 1/4-15 X .75

$6.49

$

In Stock, Qty 10

0

64

White Outdoor 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

65

White Outdoor 736-0105

Cupped Wash .400 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 938-0102

Axle Bolt
(Superseded to 738-0102)

$

$

Not available

67

White Outdoor 936-0504

Wave Washer .51" ID

$4.49

$

In Stock, Qty 9

0

68

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

69

White Outdoor 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

73

White Outdoor 942-04276S

Blade 21" (Mulching)
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

74

White Outdoor 748-0377C

Blade Adapter (w/star)
(Superseded to 748-0377E)

$19.99

$

In Stock, only 1 left!

0

75

White Outdoor 631-0067

Chute Assembly

Note: Includes Ref No. 76, 77, 78, 79, 80

$83.99

$

Usually ships in 3-6 days

0

76

White Outdoor 726-0111

Push Cap .188 Rod

$

$

Not available

77

White Outdoor 931-0066

Top Chute

$115.99

$

Usually ships in 3-6 days

0

78

White Outdoor 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

79

White Outdoor 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

80

White Outdoor 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

83

White Outdoor 734-2004A

Front Wheel Ass'y 8 x 2.125 (Idle/Zag Ball Brg)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

84

White Outdoor 731-0981C

Hub Cap -Grey

$10.99

$

In Stock, only 2 left!

0

85

White Outdoor 734-2044

Rear Wheel Ass’y 9 x 2.125 Drive/Zag/Blk)
(Superseded to 734-2044B)

$51.99

$

In Stock, only 2 left!

0

86

White Outdoor 931-04526

Shroud - Yellow

$

$

Not available

87

White Outdoor 7510042823

Screw

$

$

Not available
