12A-959C401 - Yard-Man Walk-Behind Mower (1998) Drive Assembly (Models 959, 979 And E979) Parts Diagram

Walk-Behind Mower

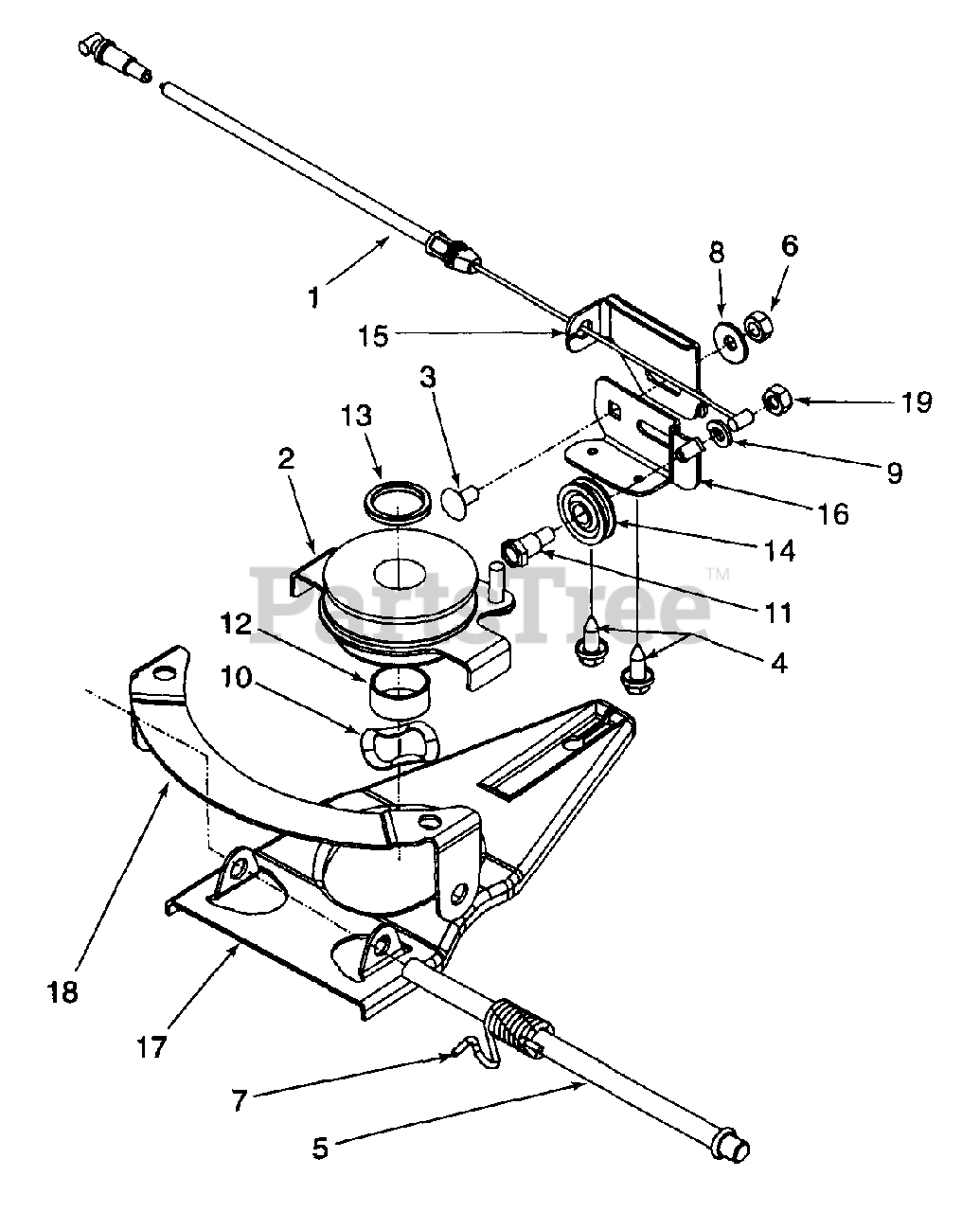

Drive Assembly (Models 959, 979 And E979) Parts Diagram

  • Title
1

MTD 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

2

MTD 656-0613

Pulley Ass'y Multi-Spd.
(Superseded to 956-0613A)

$72.99

$

Usually ships in 3-6 days

0

3

MTD 710-0167

Scr. 1/4-20 x .50 Carr.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0896

Scr. AB 1/4-14 x .625 Hxinwsh

$4.49

$

In Stock, Qty 20+

0

5

MTD 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

6

MTD 712-0287

Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

7

MTD 732-0807

Torsion Spring LH
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

8

MTD 736-0270

Bell Wash. .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0329

Lock Wash. 1/4 Reg Duty
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

10

MTD 736-0526

Wave Wash. 1.38 x .88 x .029

$6.99

$

Usually ships in 3-6 days

0

11

MTD 738-0924

Shld. Scr. .375 x 1/4-14AB
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

12

MTD 750-1070

Slev Spcr .88 ID x 1.00 OD x .48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

13

MTD 750-1071

Slev Spcr .88 ID x 1.13 ID x .12
(Superseded to 950-1071)

$4.49

$

In Stock, only 3 left!

0

14

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

15

MTD 782-7574-0665

6 Spd. Cable Adj. Bracket
(Superseded to 782-7574A-0637)

$

$

Not available

16

MTD 782-7575-0665

6 Spd. Cable Mt. Bracket
(Superseded to 782-7575-0637)

$

$

Not available

17

MTD 782-7596

6 Sp. Control Arm
(Superseded to 782-7596A)

Variations

MTD 782-7596-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 782-7597

6 Sp. Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

19

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0
