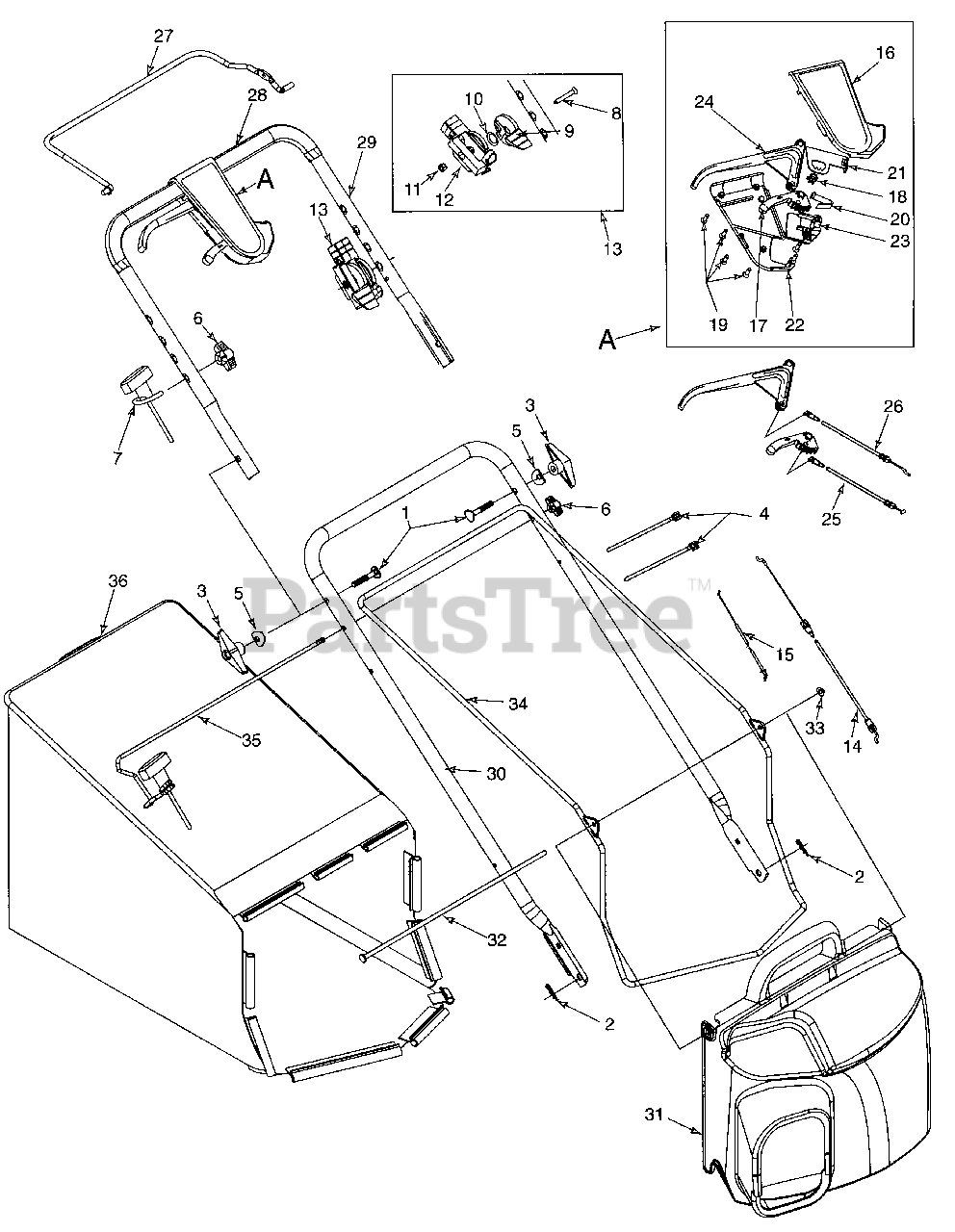

12A-959C401 - Yard-Man Walk-Behind Mower (1997) Handle and Grassbag Assembly Parts Diagram

Walk-Behind Mower

Handle and Grassbag Assembly Parts Diagram

  • Title
1

MTD 710-1174

Bolt Cur. Carr. 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

2

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 720-0241

Knob Ass'y Wingnut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

4

MTD 726-0240

Strap 4.3 Lg.
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

MTD 736-0451

Wash. Sad. .320 ID x .830 OD

$4.49

$

In Stock, Qty 7

0

6

MTD 720-0279

Knob Handle ERS - 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1205

Rope Guide Eyebolt

Note: For model 959 only

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0605

Screw 1/4-20 x 1.81

$4.49

$

In Stock, only 2 left!

0

9

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

10

MTD 736-0501

Spring Wash. Curved
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 712-0324

Nut 1/4-20 Top locknut Insert

$3.99

$

In Stock, Qty 16

0

12

MTD 646-0875

Housing, Throttle
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

13

MTD 811-00303

Throttle Control -
(Superseded to 811-0185)

Note: (Includes 8, 9, 10, 11 & 12)

$36.99

$

In Stock, only 1 left!

0

14

MTD 746-0557

Control Cable 47" Lg.
(Superseded to 946-0557)

$26.99

$

In Stock, only 1 left!

0

15

MTD 746-0841

Cable Throttle 60" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

16

MTD 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

17

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

18

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

19

MTD 710-0841

C Sunk Tap Screw #10 x .75 L

$4.49

$

Usually ships in 3-6 days

0

20

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

21

MTD 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

22

MTD 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

23

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

24

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

25

MTD 746-0939

6 Spd. Cable
(Superseded to 946-0939A)

Note: New Part

$33.99

$

In Stock, only 3 left!

0

26

MTD 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

27

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

28

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

29

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

?30

MTD 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

31

MTD 631-0071

Grassbag Cover w/Label

Note: For model 979 only; New Part

$103.99

$

Usually ships in 3-6 days

0

32

MTD 747-0939

Pivot Rod

Note: For model 979 only; New Part

$10.99

$

Usually ships in 3-6 days

0

33

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

34

MTD 747-0937

Frame - Grassbag
(Superseded to 747-0937-0637)

Note: For model 979 only; New Part

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

?35

MTD 747-0940

Rod, Support
(Superseded to 747-0940A-0637)

Note: For model 979 only; New Part

Variations

MTD 747-0940-0637

Grass Support Rod - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

MTD 664-0074

Grassbag
(Superseded to 964-0076A)

Note: For model 979 only; New Part

$98.99

$

Usually ships in 3-6 days

0
