12A-909J063 - Troy-Bilt Tuff-Cut 909J Walk-Behind Mower (2002) General Assembly Parts Diagram

Tuff-Cut 909J Walk-Behind Mower

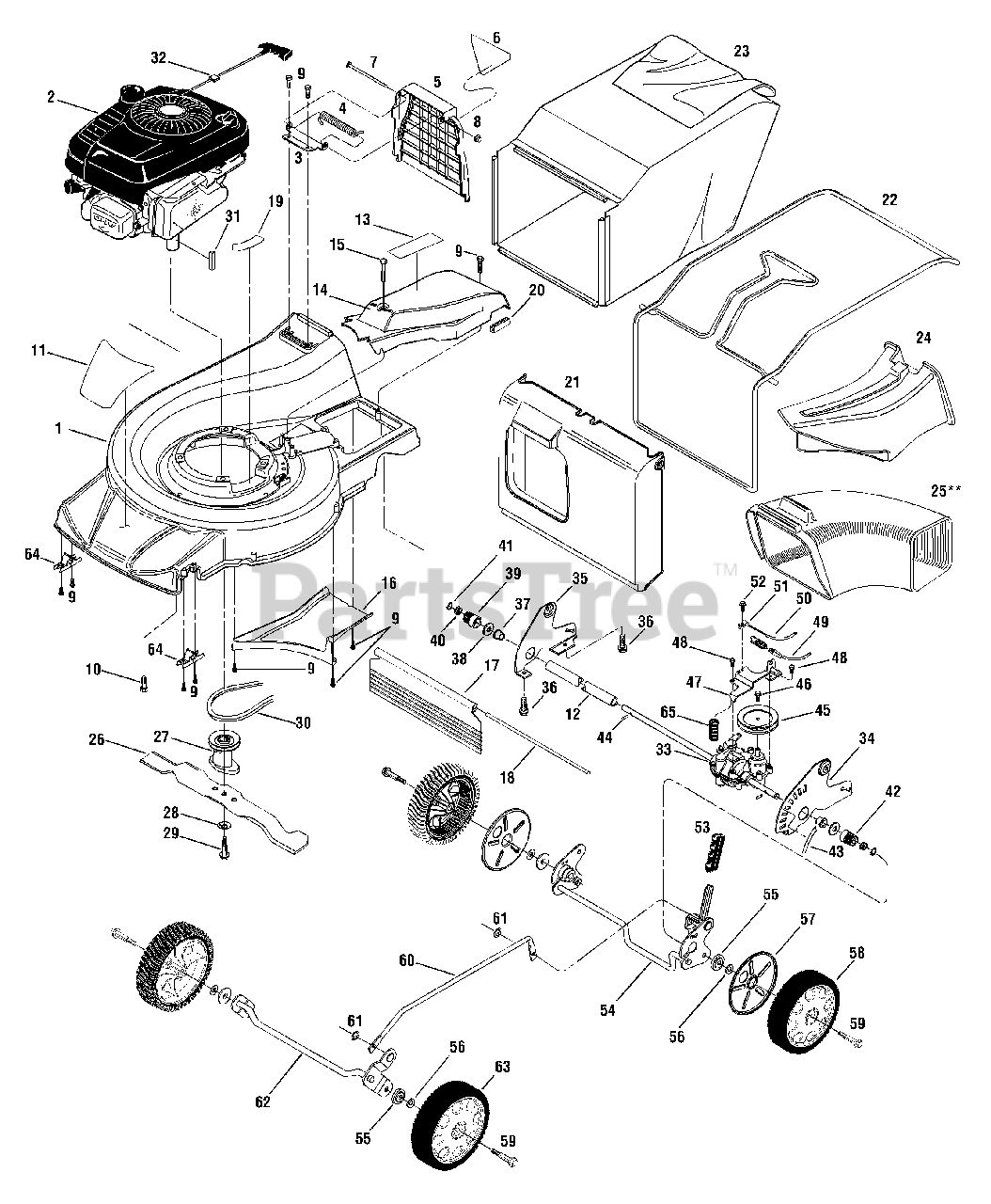

General Assembly Parts Diagram

  • Title

1

MTD 1918222

Mower Deck

$

$

Not available

2

Engine

Note: Order parts from your local authorized engine dealer. Refer to engine/model type nameplate on engine.

$

$

Not available

3

MTD 1917072001

Support Bracket

$

$

Not available

4

Troy-Bilt 1917045

Torsion Spring

$

$

Not available

5

Troy-Bilt 1918305

Discharge Outlet Cover

$

$

Not available

6

Troy-Bilt 777S30145

Decal - Warning
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1917086

Pin

$

$

Not available

8

Troy-Bilt 1727342

Flange Push Nut, 5/16 dia
(Superseded to 726-0135)

$6.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 1754128

Hex Hd. Flange Screw, 1/4-20 x 3/4, Self-Thrd.

$3.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1767610

Hex Hd. Screw, 3/8-16 x 1-1/4, Self-Thrd.

$

$

Not available

11

MTD 777D06222

Decal - Logo

$

$

Not available

12

Troy-Bilt 1918339

Spacer Tube, Plastic

$

$

Not available

13

Troy-Bilt 777S32021

Decal - Warning, Belt Cover

$

$

Not available

14

Troy-Bilt 1918223

Belt Cover

$

$

Not available

15

Troy-Bilt 1917088

Hex Hd. Flange Screw, 1/4-20 x 2-1/4, Self-Thrd.
(Superseded to 710-1206)

$7.49

$

In Stock, Qty 6

0

16

Troy-Bilt 1917002

Discharge Outlet Baffle

$

$

Not available

17

Troy-Bilt 1917071

Safety Flap
(Superseded to 731-04031)

$

$

Not available

18

Troy-Bilt 1917073

Flap Rod

$

$

Not available

19

MTD 777S32022

Decal - Danger, BBC Opening

$

$

Not available

20

MTD 1918284

Rubber Extrusion

$

$

Not available

21

MTD 1917029

Grass Catcher Door

$

$

Not available

22

MTD 1917030001

Grass Catcher Frame

$

$

Not available

23

Troy-Bilt 1918182

Grass Catcher Bag

$

$

Not available

24

MTD 1917084

Mulching Plug

$

$

Not available

25

Troy-Bilt 1917056

Side-Discharge Deflector
(Superseded to 1918361)

Note: Optional Equipment

$67.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 1917054

Mower Blade
(Superseded to 742-04042)

$62.99

$

In Stock, only 1 left!

0

27

MTD 1917017

Engine Pulley/Blade Coupler Assy.

$

$

Not available

28

Troy-Bilt GW-9928

Belleville Washer, 1/2"

$12.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1917060

Shoulder Screw, 3/8-24 x 1.65

$

$

Not available

30

Troy-Bilt 1917005

V-Belt

$

$

Not available

31

MTD GW-9302

Square Key, .188 x 1-1/4

$

$

Not available

32

Troy-Bilt 1746425

Rope Stop

$

$

Not available

33

Troy-Bilt 1917004

Transaxle

$

$

Not available

34

Troy-Bilt 1917038001

Handle Support Bracket, Left-Hand

$

$

Not available

35

MTD 1917018001

Handle Support Bracket, Right-Hand

$

$

Not available

36

Troy-Bilt 1723037

Hex Hd. Flange Screw, 3/8-16 x 3/4, Self-Thrd.
(Superseded to 710-0623)

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 1917014

Rear Axle Bearing

$3.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 1917079

Washer/Seal, Nylon

$

$

Not available

39

Troy-Bilt 1918323

Pinion Gear, Right-Hand

$

$

Not available

40

MTD 1909380

Shim, .016"

$

$

Not available

MTD 1909382

Shim, .062"

$

$

Not available

41

Troy-Bilt GW-9516

Snap-Ring

$4.49

$

In Stock, only 4 left!

0

42

MTD 1918322

Pinion Gear, Left-Hand

$

$

Not available

43

MTD 777I22012

Decal - Blade Cutting Height

$

$

Not available

44

MTD 1909044

Round Pin

$

$

Not available

45

MTD 1917003

Transaxle Pulley

$

$

Not available

46

Troy-Bilt 1186309

Hex Hd. Screw, 1/4-20 x 5/8, GR. 5

$

$

Not available

47

Troy-Bilt 1917009001

Cable Mounting Bracket

$

$

Not available

48

Troy-Bilt GW-9552

Hex Flange Hd. Screw, 1/4-20 x 1/2, Self-Thrd.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 1917032

Drive Control Cable
(Superseded to 1917032P)

$41.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 1917037

Speed Control Cable/Lever
(Superseded to 1917037099)

$73.99

$

Usually ships in 3-6 days

0

51

MTD 1715127

Cable Clamp

$

$

Not available

52

Troy-Bilt 1767754

Hex Washer Hd. Flange Screw, #10-24 x 1/2
(Superseded to 710-04460)

$

$

Not available

53

Troy-Bilt 720-0313

Lever Grip

$19.99

$

Usually ships in 3-6 days

0

54

MTD 1918224

Rear Axle Assembly

$

$

Not available

55

Troy-Bilt 1917074

Spacer

$

$

Not available

56

Troy-Bilt 1909311

Flat Washer, .406" ID

$

$

Not available

57

Troy-Bilt 1917083

Wheel Shield

$15.99

$

Usually ships in 3-6 days

0

58

MTD 1765750

Rear Wheel/Tire Assembly

$

$

Not available

59

MTD 1903416

Shoulder Screw, 3/8-16 x 2.42

$

$

Not available

60

Troy-Bilt 1917012001

Deck Height Adjust Linkage

$

$

Not available

61

Troy-Bilt 1185257

E-Clip
(Superseded to 916-0125)

$

$

Not available

62

MTD 1917010001

Front Axle Assembly

$

$

Not available

63

Troy-Bilt 1765740

Front Wheel/Tire Assembly
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 9

0

64

Troy-Bilt 1917015

Front Axle Bearing

$2.49

$

In Stock, only 2 left!

0

65

Troy-Bilt 1917068

Compression Spring

$

$

Not available

$

$

Not available
