12A-849K129 - Yard Machines Walk-Behind Mower (2001) (Home Depot) Transmission Assembly Parts Diagram

Walk-Behind Mower

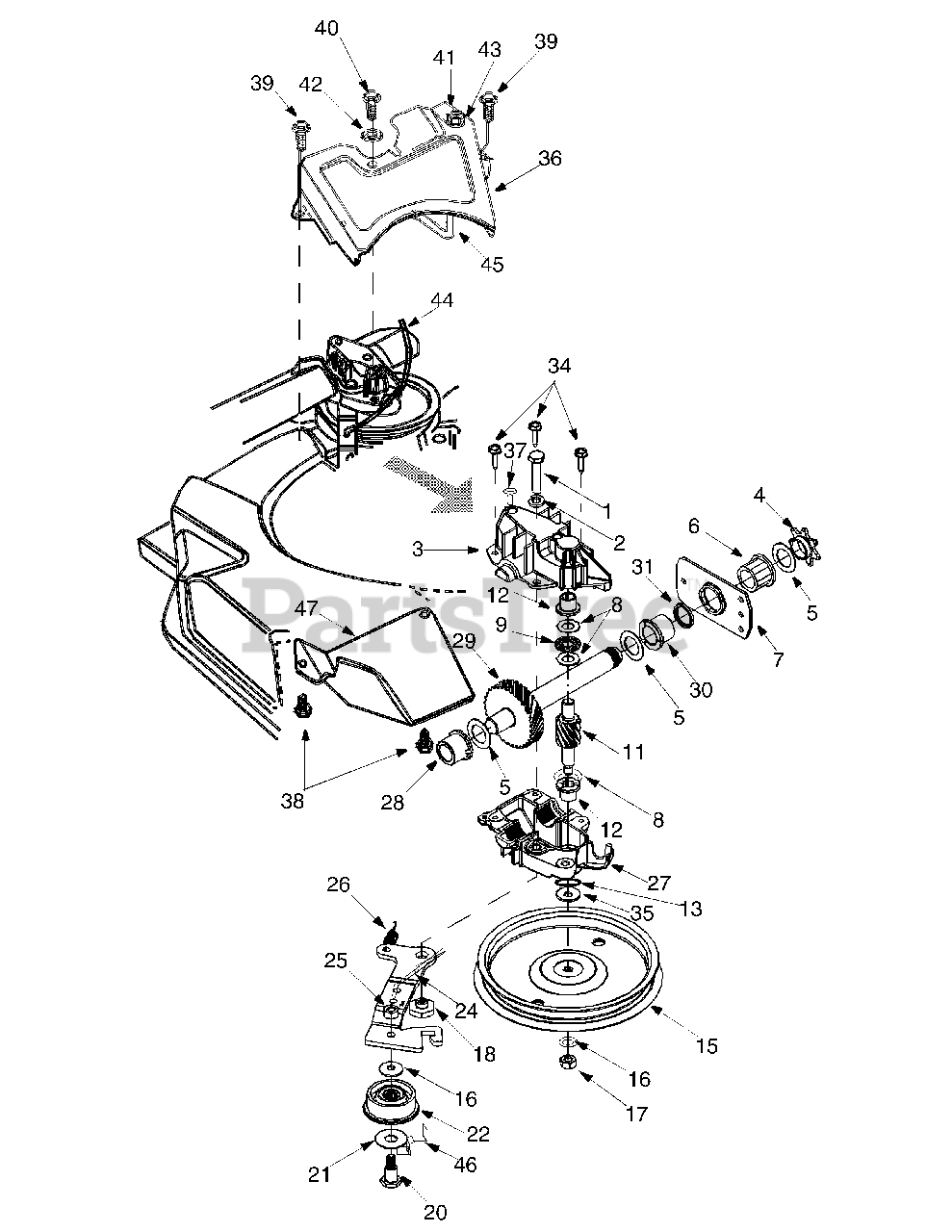

Transmission Assembly Parts Diagram

  • Title

1

MTD 710-1062

Hex Bolt, 1/4-20 x 1.25''

$6.49

$

Usually ships in 3-6 days

0

2

MTD 726-0329

Lock Washer

$

$

Currently unavailable

3

MTD 618-0053

Upper Housing

$

$

Not available

4

MTD 713-0400

#48 Sprocket 7T

$

$

Not available

5

MTD 736-0336

Flat Washer 5/8'' ID
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

MTD 741-0413

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

7

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

MTD 736-0314

Thrust Washer

$6.99

$

Usually ships in 3-6 days

0

9

MTD 741-0479

Thrust Bearing

$11.99

$

Usually ships in 3-6 days

0

11

MTD 717-1216

11T Helical Gear
(Superseded to 917-1216)

$

$

Not available

12

MTD 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

15

MTD 756-0330A

Flange Pulley

$

$

Not available

16

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0351

Hex Nut
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

MTD 738-0440

Shoulder Spacer

$5.99

$

In Stock, only 4 left!

0

20

MTD 738-0826

Shoulder Bolt

$12.99

$

Usually ships in 3-6 days

0

21

MTD 656-0008

FI-Idler Bracket Assembly
(Superseded to 956-0008)

$20.99

$

In Stock, only 2 left!

0

22

MTD 741-0556

Needle Bearing

$17.99

$

In Stock, only 3 left!

0

24

MTD 782-7570

Idler Bracket Assembly
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0

25

MTD 712-0138

Hex Patch Lock Nut

$6.99

$

Usually ships in 3-6 days

0

26

MTD 732-0357A

Extension Spring

$4.49

$

In Stock, only 3 left!

0

27

MTD 618-0054

Lower Housing

$

$

Not available

28

MTD 741-0415

Flange Bearing 0.56'' Dia
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 747-0616A

Shaft Assembly

$

$

Currently unavailable

30

MTD 741-0414

Flange Bearing

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal

$10.99

$

In Stock, only 1 left!

0

34

MTD 710-0589

AB Screw #10-16

$6.99

$

Usually ships in 3-6 days

0

35

MTD 736-0410

Hex Washer
(Superseded to 936-0410)

$

$

Not available

36

MTD 17718

Transmission Belt Guard

Variations

MTD 17718-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 17718-0638

No Longer Available GUARD-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17718-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17718-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

37

MTD 721-0325

Plug

$4.49

$

In Stock, only 4 left!

0

38

MTD 710-0653

Hex B-Tap Screw

$4.49

$

In Stock, Qty 8

0

39

MTD 710-0599

Hex AB Tap Screw

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0896

Hex B-Tap Screw

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0287

Hex Nut
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

42

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

43

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

MTD 746-0710A

Self-Propelled Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

45

MTD 747-0549

Self-Propelled Belt Guard

$

$

Not available

46

MTD 782-7569

Belt Guard

$7.49

$

Usually ships in 3-6 days

0

47

MTD 17064

Belt Cover

Variations

MTD 17064-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 717-0417B

Transmission Complete
(Superseded to 917-0417B)

Note: not shown

$234.99

$

Usually ships in 3-6 days

0
