12A-827A118 - Yard Machines Walk-Behind Mower (2000) (Sam's Club) General Assembly Parts Diagram

Walk-Behind Mower

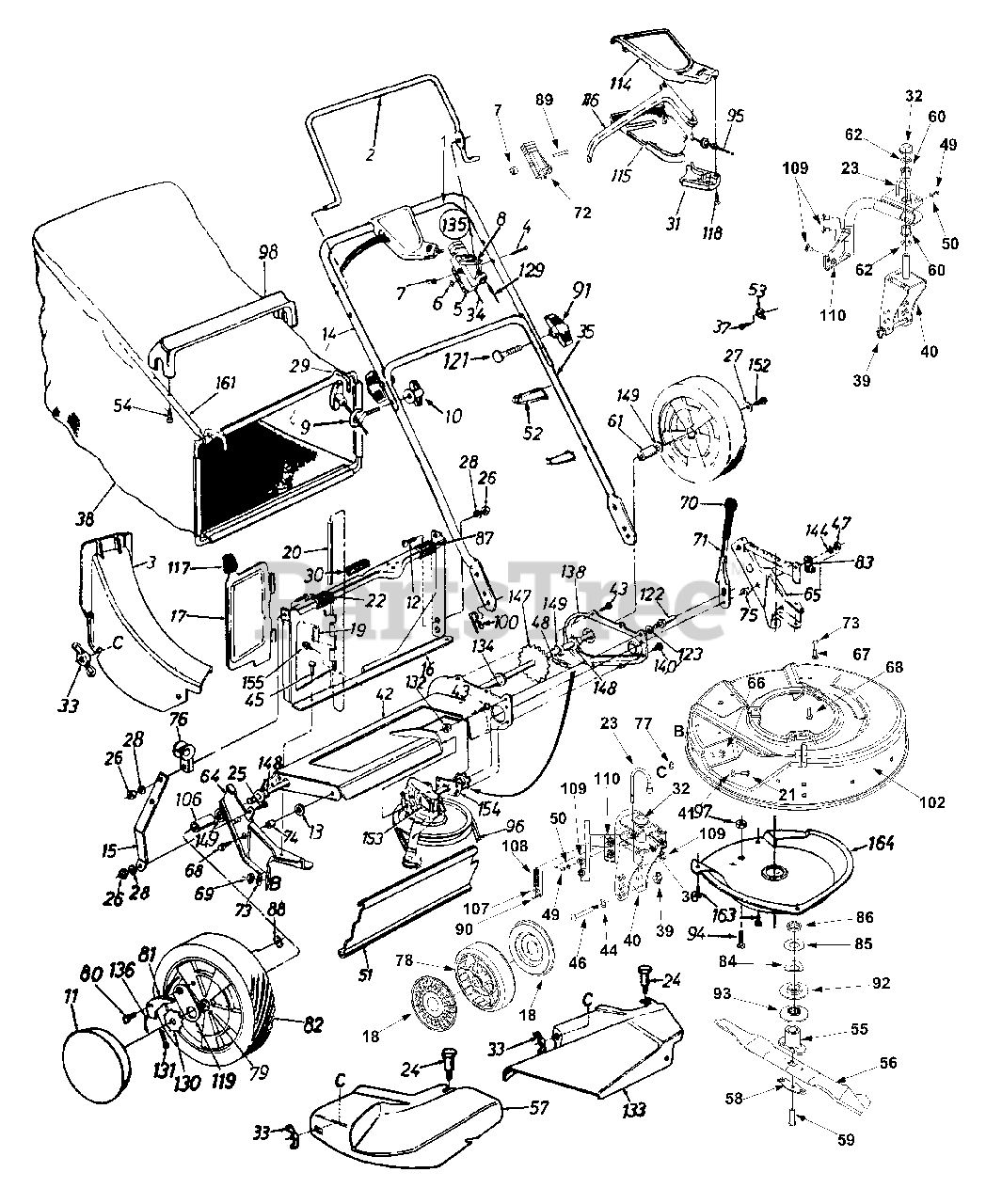

General Assembly Parts Diagram

  • Title

1

MTD 720-0294

Foam Handle
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

2

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

3

MTD 731-1023

Rear Discharge Chute Ass'y

$

$

Not available

4

MTD 710-0605

Oval C-Sunk Screw

Note: (If Equipped)

$4.49

$

In Stock, only 2 left!

0

5

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: (If Equipped)

$9.49

$

In Stock, only 3 left!

0

6

MTD 736-0501

Spring Washer .66"
(Superseded to 936-0501)

Note: (If Equipped)

$6.99

$

Usually ships in 3-6 days

0

7

MTD 712-0324

Hex L-Nut 1/4-20

Note: (If Equipped)

$3.99

$

In Stock, Qty 16

0

8

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: (If Equipped)

$8.49

$

In Stock, only 3 left!

0

9

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

10

MTD 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 731-1426

Hub Cap Spoke
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

12

MTD 710-0896

Truss Machine Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0258

Flat Washer .383" ID x 1" OD

$4.49

$

Usually ships in 3-6 days

0

14

MTD 749-0439C

Upper Handle
(Superseded to 749-0439E-0637)

Note: Models 820 thru 829

Variations

MTD 749-0439C-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

14

MTD 749-0438B

Upper handle
(Superseded to 749-0438D-0637)

Note: Models 810 thru 819

Variations

MTD 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 16129A

Panel Support Bracket
(Superseded to 16129A-0637)

Variations

MTD 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

16

MTD 16862

Rear Catcher Panel Ass'y

Variations

MTD 16862-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16862-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 16862-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16862-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16862-0662

No Longer Available PANEL ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16862-0665

No Longer Available PANEL ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 17095A

Rear Discharge Door

Variations

MTD 17095A-0637

Top Discharge Door - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 731-1886

Hub Cap Spoke w/Hole

$11.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0924

Truss Machine Screw 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

23

MTD 747-0924

Lock Pin

$20.99

$

In Stock, only 1 left!

0

24

MTD 738-0704

Shoulder Bolt .312 x .18

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

MTD 736-0270

Bell Washer 1/4"

Note: Models 820 thru 829

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0329

Lock Washer 1/4"
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

MTD 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

30

MTD 722-0139

Foam Strip

$

$

Not available

31

MTD 731-1059

SP Control Cover
(Superseded to 753-0833)

Note: Models 820 thru 829

$50.99

$

In Stock, only 2 left!

0

32

MTD 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

33

MTD 712-0397

Wing Nut w/ Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0674

Throttle Control Wire 61"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

36

MTD 682-9021A

Caster Ass'y LH

Variations

MTD 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

MTD 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

MTD 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

MTD 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

36

MTD 682-9020A

Caster Ass'y RH

Variations

MTD 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

MTD 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

MTD 682-9020A-0629

CASTER ASM-RH - SILVER FLAKE (0629)

$

$

Not available

MTD 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

MTD 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

MTD 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

MTD 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

37

MTD 710-1237

Hex Tap Screw #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

38

MTD 664-0082

Grass Bag
(Superseded to 964-0082)

$

$

Not available

39

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

40

MTD 682-9026

Caster Bracket Ass'y LH
(Superseded to 682-9026A)

Variations

MTD 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

MTD 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0637

BRACKET ASSY-WHEEL LH - POWDER BLACK (0637)

$85.99

$

In Stock, only 1 left!

0

MTD 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4033

BRACKET ASSY-WHL L - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

40

MTD 682-9024

Caster Bracket Ass'y RH

Variations

MTD 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

MTD 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0691

BRACKET CASTER - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0716

Caster Bracket, RH - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

MTD 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0637

BRACKET CASTER - POWDER BLACK (0637)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

41

MTD 736-0204

Flat Washer .344" ID x .62"

$4.49

$

In Stock, Qty 20+

0

42

MTD 17055B

Chain - Axle Ass'y

Note: Models 820 thru 829

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

43

MTD 710-0352

Hex Tap Screw 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

MTD 736-0232

Wave Washer

$4.99

$

In Stock, Qty 12

0

45

MTD 710-0776A

Hex Tap Screw 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 711-1146

Caster Axle
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

47

MTD 712-0296

Hex Lock Nut 3/8-24
(Superseded to 912-0296)

Note: Models 820 thru 829

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x 30 Links
(Superseded to 913-0353)

Note: Models 820 thru 829

$

$

Not available

49

MTD 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

50

MTD 736-0931

Flat Washer

$4.99

$

In Stock, only 1 left!

0

51

MTD 731-1488

Rear Flap

Note: Models 820 thru 829

$28.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

54

MTD 710-1025

Hex Screw #12 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

55

MTD 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 12

0

56

MTD 742-0641

21" Standard Blade
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

56

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

Note: Optional

$29.99

$

In Stock, Qty 20+

0

57

MTD 731-1343A

Mulching Plug

$

$

Not available

58

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

59

MTD 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

In Stock, only 1 left!

0

60

MTD 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

61

MTD 748-0190

Spacer .513" ID x .69"

Note: Models 820 thru 829

$6.49

$

In Stock, Qty 11

0

62

MTD 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

64

MTD 16136C

RH Handle Wheel Bracket Ass'y
(Superseded to 16136C-0637)

Variations

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 682-0532

LH Handle Wheel Bracket Ass'y

Variations

MTD 682-0532-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Tap Screw 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex Tap Screw 3/8-16

$4.49

$

In Stock, only 4 left!

0

69

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0606

Height Adjuster Lever

$

$

Not available

72

MTD 746-0883

Throttle Housing w/o Lever

$16.99

$

In Stock, only 3 left!

0

73

MTD 736-0242

Bell Washer 5/16"

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shoulder Spacer .50"

$

$

Not available

76

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

77

MTD 726-0233

Bolt Retainer

$4.49

$

In Stock, Qty 20+

0

78

MTD 734-1857

Front Wheel Ass'y Comp

$46.99

$

In Stock, Qty 8

0

79

MTD 741-0486B

Bearing 1/2" ID

$

$

Not available

80

MTD 738-0137

Shoulder Screw

$

$

Not available

81

MTD 748-0188B

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

MTD 734-2005

Rear Wheel Ass'y Comp
(Superseded to 753-08093)

Note: Models 820 thru 829

$45.99

$

In Stock, Qty 5

0

82

MTD 734-2004

Rear Wheel Ass'y Comp
(Superseded to 753-08093)

Note: Models 810 thru 819

$45.99

$

In Stock, Qty 5

0

83

MTD 726-0175

Clamp

$

$

Not available

84

MTD 736-0514

Flat Washer

Note: Models 820 thru 829

$

$

Not available

85

MTD 736-0513

Spring Washer .89" ID
(Superseded to 936-0513)

Note: Models 820 thru 829

$

$

Not available

86

MTD 748-0358

Crankshaft Spacer

Note: Models 820 thru 829

$

$

Not available

87

MTD 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

88

MTD 712-0414

Weld L-Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-1270

Screw 1/4-20 x 20

$4.49

$

Usually ships in 3-6 days

0

90

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

91

MTD 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

92

MTD 756-0962

Pulley Half-Upper

Note: Models 820 thru 829

$

$

Not available

93

MTD 756-0961

Pulley Half-Lower

Note: Models 820 thru 829

$

$

Not available

94

MTD 710-0578

Machine Screw 1/4-20

$4.49

$

Usually ships in 3-6 days

0

95

MTD 746-0710A

Drive Cable Models
(Superseded to 946-0710A)

Note: Models 820 thru 829

$40.99

$

In Stock, only 4 left!

0

96

MTD 754-0343

V-Belt Models
(Superseded to 954-0343)

Note: Models 820 thru 829

$29.99

$

In Stock, only 1 left!

0

97

MTD 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

98

MTD 731-0801

Bag Handle

$

$

Not available

100

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

102

MTD 782-0098

21" Deck

Note: Models 820 thru 829

Variations

MTD 782-0098-0667

No Longer Available DECK ASM - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

102

MTD 782-0112

21" Deck

Note: Models 810 thru 819

Variations

MTD 782-0112-0665

"No Longer Available DECK-21""" - YARDMAN GREEN (0665)

$

$

Not available

$

$

106

MTD 711-0313

Sleeve

$

$

Not available

107

MTD 736-0264

Flat Washer .330 ID x .630 OD

$6.99

$

In Stock, only 1 left!

0

108

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

109

MTD 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

110

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

114

MTD 731-1057

SP Control Cover
(Superseded to 753-0833)

Note: Models 820 thru 829

$50.99

$

In Stock, only 2 left!

0

115

MTD 731-1058

SP Control Cover
(Superseded to 753-0833)

Note: Models 820 thru 829

$50.99

$

In Stock, only 2 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

Note: Models 820 thru 829

$15.99

$

In Stock, only 1 left!

0

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

MTD 710-1667A

C Sunk Tap Screw #10-16 x .625

Note: Models 820 thru 829

$4.49

$

In Stock, Qty 13

0

119

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

121

MTD 710-1174

Curved Carriage Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

122

MTD 711-0805

Shoulder Pin 3/8-24 x 1.43"

$

$

Not available

123

MTD 736-0169

Lock Washer 3/8" ID

$3.99

$

In Stock, Qty 20+

0

129

MTD 746-0922

Control Cable
(Superseded to 946-0922)

$31.99

$

Usually ships in 3-6 days

0

130

MTD 748-0318

Ratchet Wheel 1.62" OD
(Superseded to 948-0318)

Note: Models 820 thru 829

$10.99

$

In Stock, Qty 16

0

131

MTD 714-0115

Cotter Pin

Note: Models 820 thru 829

$3.99

$

In Stock, only 2 left!

0

132

MTD 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

133

MTD 731-0884

Side Chute Deflector Ass'y

$

$

Not available

134

MTD 741-0522

Hex Flange Bearing

Note: Models 820 thru 829

$

$

Not available

135

MTD 811-00185

Throttle Box Comp
(Superseded to 811-0185)

Note: (If Equipped)

$36.99

$

In Stock, only 1 left!

0

136

MTD 10622B

Nylon Spring

Note: Models 820 thru 829

$5.49

$

In Stock, Qty 20+

0

138

MTD 17053A

Chain Cover

Note: Models 820 thru 829

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

MTD 710-0599

Hex Tap Screw 1/4-20 x .50"

Note: Models 820 thru 829

$4.49

$

In Stock, Qty 20+

0

144

MTD 736-0300

Flat Washer

Note: Models 820 thru 829

$4.49

$

In Stock, Qty 20+

0

147

MTD 738-0719A

Rear Shaft Ass'y
(Superseded to 938-0719A)

Note: Models 820 thru 829

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing .506" ID
(Superseded to 741-0324A)

Note: Models 820 thru 829

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Flat Washer .531" x .930"

Note: Models 820 thru 829

$4.49

$

In Stock, only 2 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

153

MTD 618-0055

Transmission Comp
(Superseded to 917-0417B)

Note: Models 820 thru 829

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

MTD 710-0429

Hex Tap Screw #10 x .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

161

MTD 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

163

MTD 710-0352

Hex Tap Screw 1/4 x .38"

$4.99

$

Usually ships in 3-6 days

0

164

MTD 782-7555

Mulching Baffle

Variations

MTD 782-7555-0637

No Longer Available BAFFLE-MUL - POWDER BLACK (0637)

$

$

Not available

$

$
