12A-827A118 - Yard Machines Walk-Behind Mower (1999) (Sam's Club) Drive Parts Diagram

Walk-Behind Mower

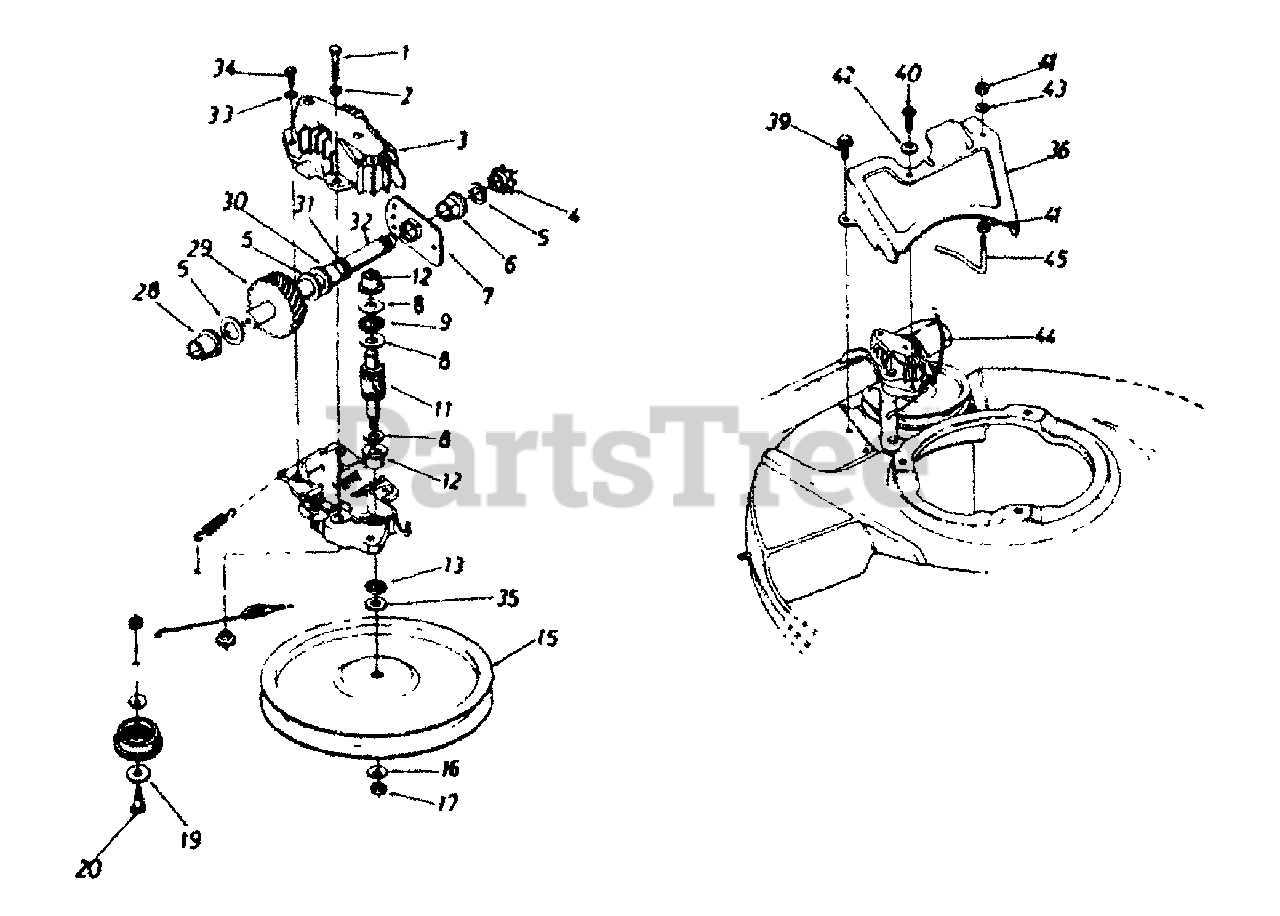

Drive Parts Diagram

  • Title

1

MTD 710-1062

Hex Bolt w/Patch 1/4-20 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

2

MTD 726-0329

L-Washer 1/4" ID

$

$

Currently unavailable

3

MTD 717-0418A

Upper Housing Half

$

$

Not available

4

MTD 713-0400

#46 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

MTD 736-0336

Flat Washer 5/8" ID x .030 OD
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

MTD 741-0413

Hex Flange Bearing .631" ID

$9.99

$

Usually ships in 3-6 days

0

7

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

MTD 736-0314

Thrust Washer .362" ID x .70" OD

$6.99

$

Usually ships in 3-6 days

0

9

MTD 741-0479

Thrust Bearing .375" ID x .812" OD

$11.99

$

Usually ships in 3-6 days

0

?10

MTD 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

11

MTD 717-1216

11 Tooth Helical Gear
(Superseded to 917-1216)

$

$

Not available

12

MTD 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

15

MTD 756-0330A

Pulley 5.06" ID

$

$

Not available

16

MTD 736-0270

Bell Washer .265" ID x .75" OD

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0351

Hex Nut 1/4-28 LH Thread
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

?18

MTD 738-0440

Shoulder Spacer .375"

$5.99

$

In Stock, only 4 left!

0

19

MTD 736-0344

Flat Washer .390" ID x 1.0" OD

$4.99

$

In Stock, Qty 20+

0

20

MTD 738-0826

Shoulder Bolt .375" x .40"

$12.99

$

In Stock, only 1 left!

0

?21

MTD 756-0558

Idler Pulley 1.50"
(Superseded to 956-0558)

$11.99

$

In Stock, Qty 5

0

?22

MTD 741-0556

Needle Bearing .375" x .31"

$17.99

$

In Stock, Qty 5

0

?23

MTD 736-0270

Bell Washer .265" ID x .75"

$3.99

$

In Stock, Qty 20+

0

?24

MTD 782-7570

Idler Bracket Ass'y
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0

?25

MTD 712-0138

Hex Lock Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

?26

MTD 732-0357A

Extension Spring 1.12"

$4.49

$

In Stock, Qty 13

0

?27

MTD 717-0419B

Lower Housing Half

$

$

Not available

28

MTD 741-0415

Flange Bearing .56"
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 717-0422A

33 Tooth Helical Gear
(Superseded to 717-0616A)

$

$

Not available

30

MTD 741-0414

Flange Bearing .629"

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal .625"

$10.99

$

In Stock, Qty 12

0

32

MTD 738-0607B

Gear Sprocket Shaft
(Superseded to 717-0616A)

$

$

Not available

33

MTD 736-0722

Lock Washer #10

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0436

Hex Tap Screw #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

MTD 736-0410

Hex Washer .26" x .88"
(Superseded to 936-0410)

$

$

Not available

36

MTD 17718

Transmission belt Guard

Variations

MTD 17718-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 17718-0638

No Longer Available GUARD-BELT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17718-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17718-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

$

$

39

MTD 710-0599

Hex Tap Screw 1/4 x .50"

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0896

Hex Tap Screw 1/4 x .62"

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

MTD 736-0270

Bell Washer .265" ID x .75"

$3.99

$

In Stock, Qty 20+

0

43

MTD 736-0329

Lock Washer 1/4" ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

44

MTD 746-0710A

SP Cable - 48"
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

45

MTD 747-0549

SP Belt Guard

$

$

Not available

MTD 618-0055

Transmission Complete
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
