12A-754B766 - Troy-Bilt Wide-Cut 33" Walk-Behind Mower (2005) Fuel Tank Assembly Parts Diagram

Wide-Cut 33" Walk-Behind Mower

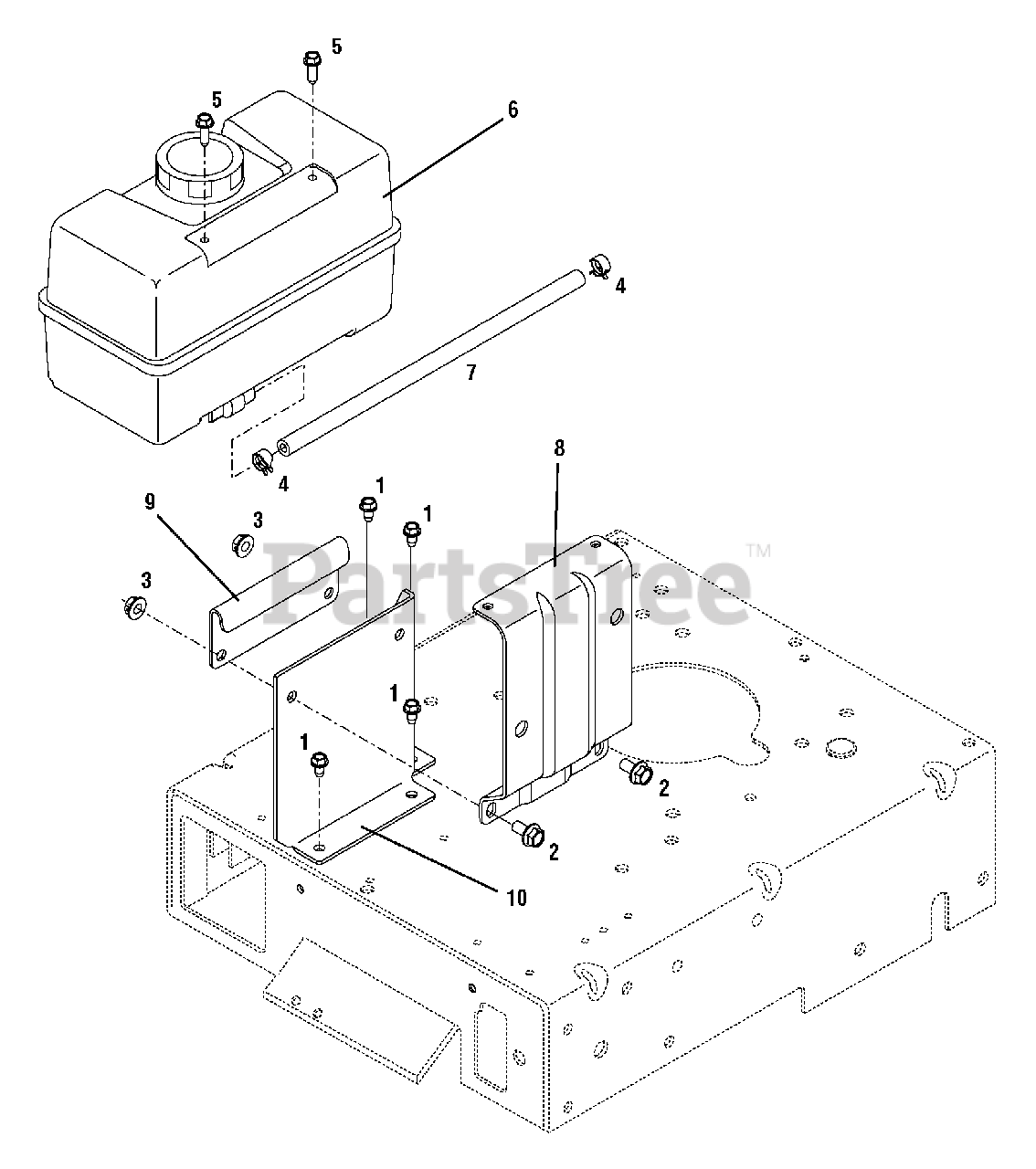

Fuel Tank Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0759

Hex Flange Screw, 5/16-18 x 5/8

$6.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-3004A

Flange Locknut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

5

MTD 751B095337

Screw, K80 x 3.59

$

$

Not available

6

Troy-Bilt 751B493337

Fuel Tank, 1 gal.
(Superseded to BS-691993)

Note: (Incl. Fuel Cap)

$166.99

$

In Stock, Qty 10

0

7

Troy-Bilt 751-0535

Fuel Line, 12"

$

$

Currently unavailable

8

Troy-Bilt 781-0497

Mounting Bracket, Fuel Tank

Variations

Troy-Bilt 781-0497-0483

BRACKET-TANK MTG - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 781-0497-0637

BRACKET-TANK MTG - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0497-0638

BRACKET-TANK MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

9

Troy-Bilt 781-0498

Support Bracket, Fuel Tank
(Superseded to 781-0498-0638)

Variations

Troy-Bilt 781-0498-0483

BRACKET-TANK SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 781-0498-0637

BRACKET-TANK SUPPO - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 781-0498-0638

BRACKET-TANK SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

10

Troy-Bilt 787-01123

Bracket, Fuel Tank
(Superseded to 787-01123-0637)

Variations

Troy-Bilt 787-01123-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$
