12A-588N141 - Yard Machines Walk-Behind Mower (2000) (W.S. Badcock Corporation) General Assembly Parts Diagram

Walk-Behind Mower

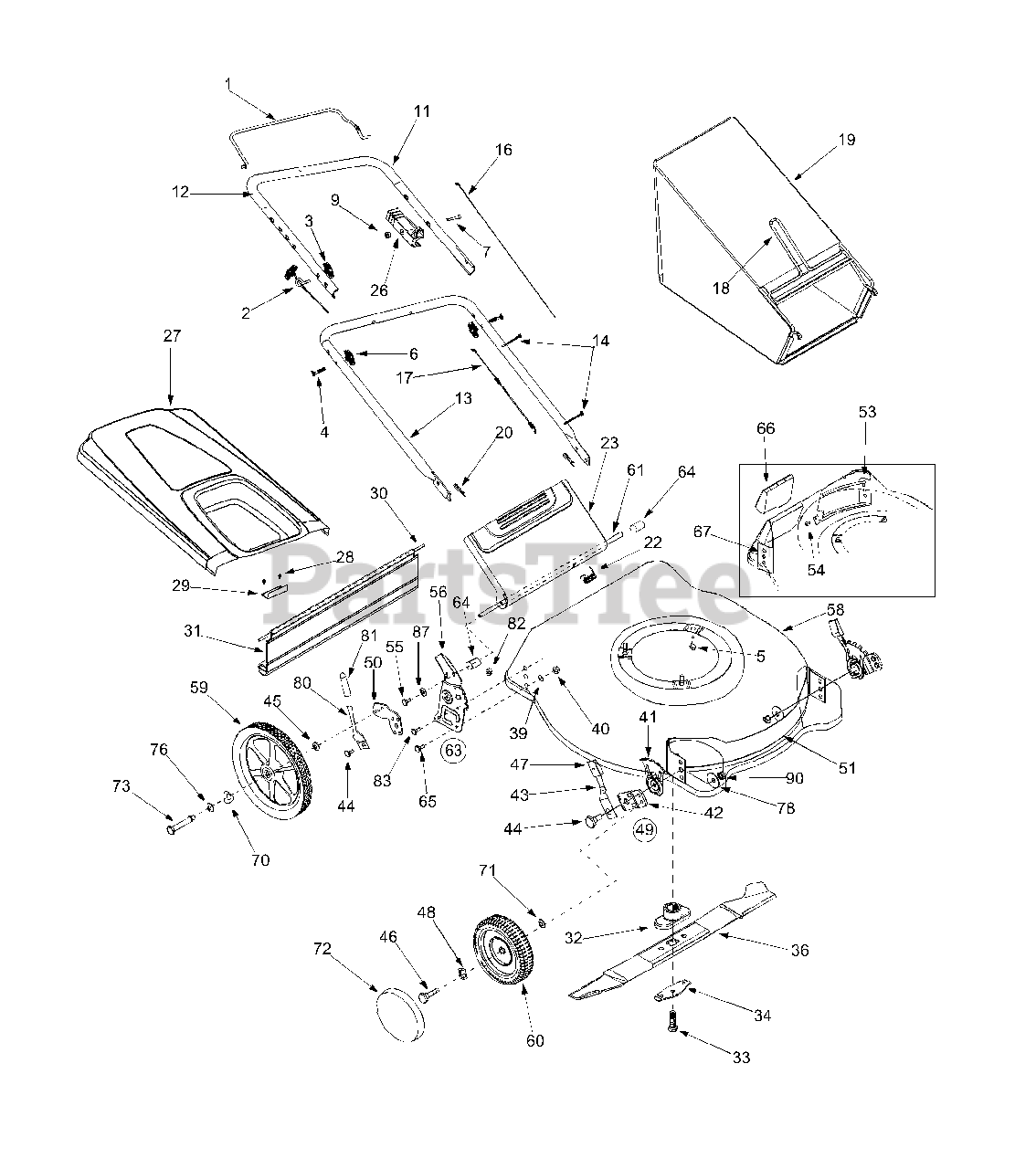

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Deluxe Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Carriage Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

5

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.00"

$4.49

$

In Stock, Qty 20+

0

6

MTD 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

7

MTD 710-1270

C-Sunk Screw 1/4-20 x 1.3"

$4.49

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

11

MTD 749-0438C

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-0550

Blade Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0551

Blade Control Cable - 43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

MTD 746-0553

Blade Control Cable - 36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0737

Blade Control Cable - 51"
(Superseded to 946-0737)

$28.99

$

In Stock, only 4 left!

0

MTD 746-0555

Blade Control Cable - 55"
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

17

MTD 746-0842

Throttle Cable - 51"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

MTD 746-0843

Throttle Cable - 55"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

MTD 746-0847

Throttle Cable - 42"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

18

MTD 747-0995A

Grass Catcher Frame
(Superseded to 747-0995A-0637)

Variations

MTD 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

19

MTD 664-0084

Grass Catcher Bag w/o Logo
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

MTD 664-0085

Grass Catcher Bag w/ Yellow Icon
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

MTD 664-0086

Grass Catcher Bag w/ Red Icon
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

20

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

22

MTD 732-0809

Door Spring
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

23

MTD 782-7599A

Grass Bag Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 746-0883

Throttle Housing

$16.99

$

In Stock, only 3 left!

0

27

MTD 731-0066

Hard Top w/ Logo

Note: If Equipped

$

$

Not available

MTD 731-0068

Hard To w/o Logo

Note: If Equipped

$

$

Not available

28

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

29

MTD 782-9050

Mounting Bracket
(Superseded to 782-9050-0637)

Note: If Equipped

Variations

MTD 782-9050-0637

BRACKET-MTG - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5

$3.99

$

In Stock, only 2 left!

0

34

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

36

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

21" Standard Blade
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

39

MTD 736-0356

Bell Washer .39 I.D. x 1.38 I.D.
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 732-0404

Front Wheel Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

MTD 738-0507B

Shoulder Bolt .5" x .357"

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0105

Bell Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 720-0190

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 736-0504

Wave Washer .510 x .750
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

49

MTD 14578

Height Adjuster Assembly - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Hgt Adj Assembly - L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

50

MTD 17488A

Pivot Bar - R.H.

$15.99

$

In Stock, only 3 left!

0

MTD 17489A

Pivot Bar - L.H.

$15.99

$

In Stock, only 1 left!

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Tap Screw 1/4-14 x .625.

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0599

Hew Washer Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

56

MTD 682-3056A

Handle Bracket - R.H.

Variations

MTD 682-3056A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057A

Handle Bracket - L.H.
(Superseded to 753-05922)

Note: (Not Shown)

Variations

MTD 682-3057A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

58

MTD 782-0310A

21" Deck

Variations

MTD 782-0310A-0483

Deck - Charcoal - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0310A-0606

Deck - Orange - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0310A-0629

Deck - Silver - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0310A-0638

Deck - MTD Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0310A-0662

Deck - Grey - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0310A-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0310A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 782-0310A-0691

Deck - Black - BLACK JACK (0691)

$

$

Not available

MTD 782-0310A-0717

No Longer Available DECK ASM - SILVER MIST (0717)

$

$

Not available

$

$

59

MTD 734-1860

Rear Wheel Assembly 14 x 2
(Superseded to 734-1860A)

$

$

Not available

60

MTD 734-1978

Front Wheel Assembly 8 x 2

$48.99

$

Usually ships in 3-6 days

0

61

MTD 747-0996

Chute Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

63

MTD 682-3058

Handle Bracket Assembly. - R.H.
(Superseded to 753-05922)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3059

Hdl Bracket Ass'y - L.H.
(Superseded to 753-05922)

Note: (Not Shown)

$114.99

$

Usually ships in 3-6 days

0

64

MTD 750-0434

Spacer .375 O.D. x .50 I.D. x 1.02"

$6.99

$

Usually ships in 3-6 days

0

65

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

66

MTD 782-5007A

Rear Mulch Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Rear Mulch Baffle
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

70

MTD 736-0182

Wave Washer

$4.49

$

In Stock, Qty 7

0

71

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

72

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

73

MTD 738-0481A

Rear Axle Bolt
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

76

MTD 736-0456

Flat Washer
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

78

MTD 736-0356

Bell Washer
(Superseded to 936-0356)

$

$

Not available

80

MTD 732-0866

Spring Lever, Rear

$

$

Not available

81

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

82

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

83

MTD 710-0896

Hex Washer Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

90

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0
