12A-588B062 - Yard Machines Walk-Behind Mower (1999) (Lowes) General Assembly Parts Diagram

Walk-Behind Mower

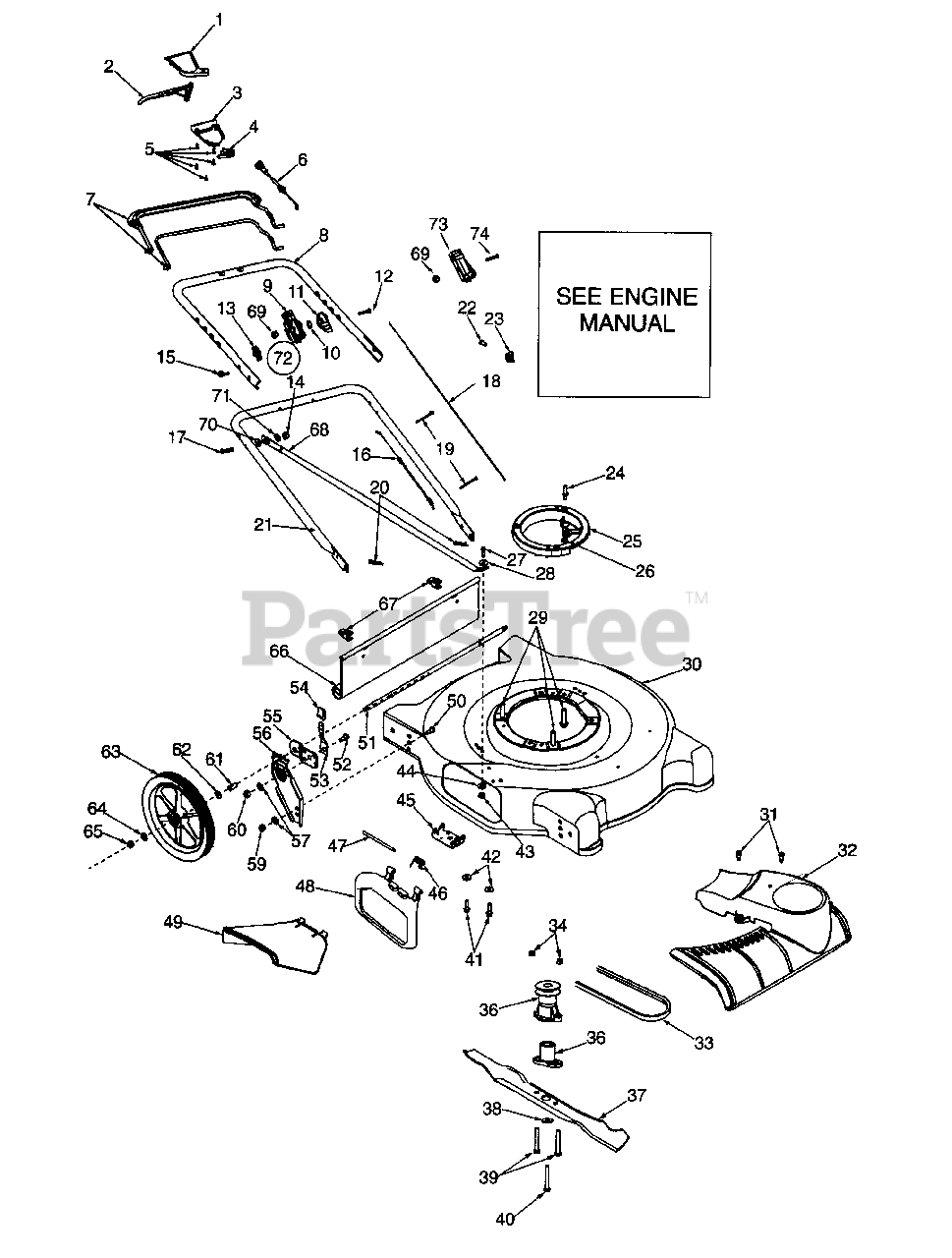

General Assembly Parts Diagram

  • Title

1

MTD 731-1057

Upper Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

2

MTD 731-0620

Drive Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

3

MTD 731-1058

Lower Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

4

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

5

MTD 710-1667

Screw # 10-16 x .625
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

6

MTD 746-0960

Drive Cable
(Superseded to 946-0960)

$49.99

$

Usually ships in 3-6 days

0

7

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Deluxe
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

8

MTD 749-0539C

Upper Handle
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539C-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

9

MTD 746-0875

Throttle Housing
(Superseded to 946-0875)

Note: (Optional)

$9.49

$

In Stock, only 3 left!

0

10

MTD 736-0501

Curved Washer .663 x.980 x.014
(Superseded to 936-0501)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 746-0876

Throttle Levers
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

12

MTD 710-0605

Screw Oval C-Sunk 1/4-20 x 1.81

Note: (Optional)

$4.49

$

In Stock, only 3 left!

0

13

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-0842

Throttle Cable: 51" B&S
(Superseded to 946-0671A)

Note: (Optional)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0847

Throttle Cable: 42" Tec
(Superseded to 946-1115)

Note: (Optional)

$28.99

$

In Stock, only 1 left!

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 746-0550

Control Cable: 39" B&S
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0737

Control Cable: 51" Tec
(Superseded to 946-0737)

$28.99

$

In Stock, only 4 left!

0

19

MTD 726-0240

Tie Cable
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

22

MTD 710-1237

Hex Screw: T: #10-32 x .625 B&S

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Screw: T: #10-32 x .625 Tec

$

$

Not available

23

MTD 751B213146

Cable Clamp B&S
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp Tec
(Superseded to TC-27793)

$1.99

$

In Stock, only 2 left!

0

24

MTD 711-1293

Pin-Belt Keeper

$4.99

$

Usually ships in 3-6 days

0

25

MTD 631-0075A

Engine Spacer
(Superseded to 631-0075B)

$

$

Not available

26

MTD 712-0271

Hex Nut 1/4-20 Thread

$4.49

$

In Stock, Qty 10

0

27

MTD 710-0751

Hex Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0270

Bell Washer .265 x

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-1008

Tapp Screw w/Hex Lock Wash

$5.49

$

In Stock, Qty 8

0

30

MTD 782-0079

Deck 22" SD

$

$

Not available

31

MTD 710-1650

Shoulder Screw TT

$4.99

$

In Stock, Qty 20+

0

32

MTD 731-1926

Trans Cover - Black w/Logo

$

$

Not available

MTD 731-1927

Trans Cover - Black wo/Logo

$

$

Not available

33

MTD 754-0466

V-Belt
(Superseded to 954-0466)

$31.99

$

Usually ships in 3-6 days

0

34

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

?35

MTD 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

36

MTD 753-0825

Blade Adapter Kit
(Superseded to 753-05151)

$67.99

$

Usually ships in 3-6 days

0

37

MTD 742-0642

Blade 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0742

Mulching Blade - 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

38

MTD 736-0452

Bell Washer .396 I.D. x 1.140 O.D. x

$4.99

$

In Stock, Qty 7

0

39

MTD 710-0606

Hex Screw 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

40

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

41

MTD 710-0599

Tapp Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0270

Bell Wash .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

44

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

45

MTD 782-7006

Hinged Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

46

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

47

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

48

MTD 731-1386A

Mulch Plug
(Superseded to 731-1386D)

$

$

Not available

49

MTD 731-1034

Chute Deflector
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

50

MTD 710-0793

Bolt 3/8-24 x .80

$

$

Not available

51

MTD 738-0878

Rear Axle

$

$

Not available

52

MTD 738-0507B

Shldr Screw .500 Dia x .434

$4.49

$

In Stock, only 4 left!

0

53

MTD 732-0404

Lever Spring
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

54

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

55

MTD 782-0519A

Small Pivot Bar- LH

$

$

Not available

MTD 782-0520A

Small Pivot Bar- RH

$

$

Not available

56

MTD 682-0517

Handle Bracket Assembly - LH
(Superseded to 682-0517-0637)

Variations

MTD 682-0517-0637

BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 682-0518

Handle Bracket Assembly - RH

Variations

MTD 682-0518-0637

Handle Brkt. Ass'y. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

?58

MTD 712-0328

Hex Nut 3/8-24
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

59

MTD 736-0331

Bell Washer .39 x 1.13 x .062

$3.99

$

In Stock, Qty 10

0

60

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

61

MTD 750-0151

Spacer
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

62

MTD 736-0504

Wave Washer .510 ID x .750 OD
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

63

MTD 734-1864

Wheel Complete 14 x 1.8 Grey Bar
(Superseded to 734-04030)

$76.99

$

In Stock, only 1 left!

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

Note: (2 per Wheel - Incl. w/No. 63; N/I)

$7.49

$

In Stock, only 1 left!

0

64

MTD 736-3050

Flat Washer .406 x .812 x .051

$4.49

$

In Stock, Qty 16

0

65

MTD 712-3020

Top Lock Jam Nut 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

66

MTD 731-1026

Rear Flap

$

$

Not available

67

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

68

MTD 749-0939

Strut - Handle

Variations

MTD 749-0939-0637

Strut - POWDER BLACK (0637)

$

$

Not available

MTD 749-0939-0638

No Longer Available STRUT-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0939-0662

No Longer Available STRUT-HAND - OYSTER GRAY (0662)

$

$

Not available

$

$

69

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

70

MTD 736-0451

Saddle Washer .20 ID x .83 OD

$4.49

$

In Stock, Qty 11

0

71

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

MTD 811-00185

Throttle Comp.
(Superseded to 811-0185)

Note: (Optional)

$36.99

$

In Stock, only 1 left!

0

73

MTD 746-0883

Throttle Hsg. w/o Lever

$16.99

$

In Stock, only 3 left!

0

74

MTD 710-1270

Scr. 1/4-20 x 1.31 Oval C-Sunk

$4.49

$

Usually ships in 3-6 days

0
