12A-569Q795 - MTD Pro Walk-Behind Mower (2007) General Assembly Parts Diagram

Pro Walk-Behind Mower

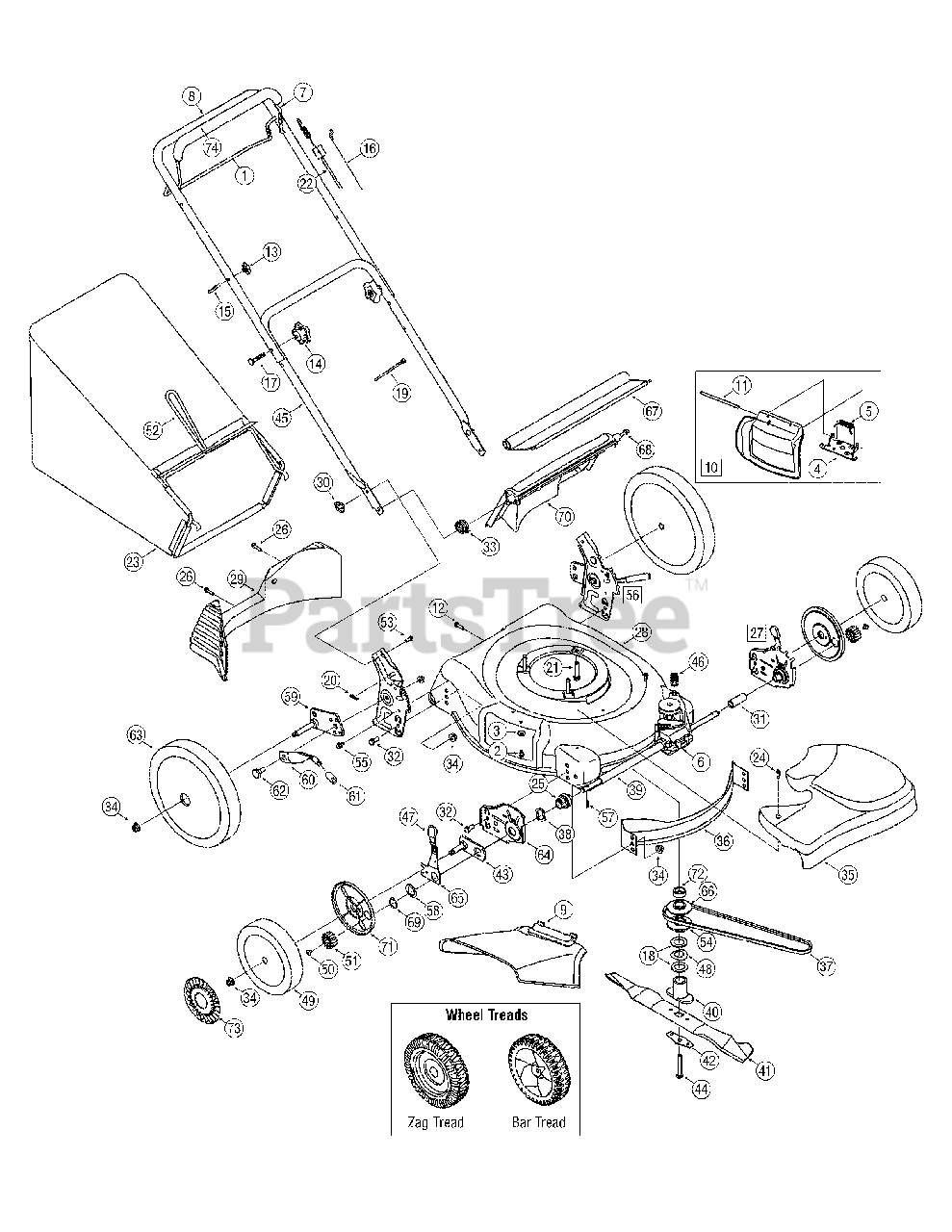

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

6

MTD 918-04376B

Transmission Assembly

$

$

Not available

7

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

8

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 987-02055

Mulch Plug Complete

$27.99

$

In Stock, Qty 8

0

11

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0286

Screw, Machine, 1/4-20 x .500

$4.49

$

Usually ships in 3-6 days

0

13

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

14

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 2 left!

0

16

MTD 946-1113

Control Cable - 37.750"
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 736-0250

Washer, Flat, 1.00 x 1.25 x .107

$4.49

$

In Stock, only 2 left!

0

19

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, only 3 left!

0

22

MTD 946-04203

Drive Cable - 51"

$48.99

$

In Stock, Qty 7

0

23

MTD 964-04007A

Grassbag Assembly

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 982-0015

Front Bearing Assembly

$31.99

$

Usually ships in 3-6 days

0

26

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

27

MTD 987-02194A

Height Adjustment Ass’y - RH

$66.99

$

Usually ships in 3-6 days

0

27

MTD 987-02193

Height Adjustment Ass’y - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

28

MTD 787-01278

21" Deck

Variations

MTD 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

MTD 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

MTD 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

MTD 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

31

MTD 750-04595

Slev. Spacer 1.4" Lg.

$4.99

$

In Stock, only 1 left!

0

32

MTD 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 16

0

33

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

MTD 931-05132A

Transmission Cover - Black

$47.99

$

Usually ships in 3-6 days

0

35

MTD 931-05021A

Transmission Cover - Yellow

$62.99

$

Usually ships in 3-6 days

0

36

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

MTD 954-0637A

V-Belt

$14.99

$

In Stock, Qty 20+

0

38

MTD 936-0447

Wave Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-04594

Sleeve Spacer 8.985" Lg.

$9.49

$

In Stock, only 1 left!

0

40

MTD 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

41

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

43

MTD 987-02044

Pivot Plate Assembly

$

$

Not available

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 3 left!

0

46

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 736-04173

Wash, Sprg, 1.005 x 1.825 x .048

$13.99

$

In Stock, only 2 left!

0

49

MTD 634-0190A

Front Wheel, 8 x 1.8, Bar, Gray

$40.99

$

In Stock, Qty 17

0

49

MTD 634-04100A

Front Wheel, 8 x 1.8, Bar, Yellow

$39.99

$

In Stock, Qty 17

0

50

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

51

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

54

MTD 956-04160

Pulley, Half

$20.99

$

Usually ships in 3-6 days

0

55

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 987-02280A

Handle Bracket Assembly - LH

$53.99

$

Usually ships in 3-6 days

0

56

MTD 987-02279A

Handle Bracket Assembly - RH

$53.99

$

Usually ships in 3-6 days

0

57

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 13

0

58

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

MTD 987-02335

Pivot Arm Assembly - RH

$27.99

$

Usually ships in 3-6 days

0

59

MTD 987-02336

Pivot Arm Assembly - LH

$

$

Not available

60

MTD 732-0866

Rear Spring Lever

$

$

Not available

61

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

62

MTD 938-0507B

Shoulder Scr.500 Dia. x.434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

63

MTD 734-04082

Rear Wheel, 12 x 1.8, Bar, Gray

$45.99

$

In Stock, only 2 left!

0

63

MTD 734-04089

Rear Wheel, 12 x 1.8, Bar, Yellow

$58.99

$

Usually ships in 3-6 days

0

64

MTD 787-01298A-0637

Height Adjuster Plate - RH

$19.99

$

Usually ships in 3-6 days

0

64

MTD 787-01299A-0637

Height Adjuster Plate - LH

$15.99

$

In Stock, only 1 left!

0

65

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

65

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

66

MTD 956-04161

Pulley, Half

$13.99

$

In Stock, only 1 left!

0

67

MTD 731-05642A

Rear Trailing Shield

$28.99

$

In Stock, Qty 9

0

68

MTD 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

69

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

70

MTD n/a

Rear Discharge Door

$

$

Currently unavailable

71

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

72

MTD 750-04438A

Spcr, Slev, 25mm x 1.375 x .620

$4.99

$

Usually ships in 3-6 days

0

73

MTD 731-0981C

Hub Cap

$10.99

$

Usually ships in 3-6 days

0

74

MTD 731-2626

Deluxe Bail Cover

$11.99

$

In Stock, only 2 left!

0
