12A-569Q755 - Yard-Man Walk-Behind Mower (2006) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

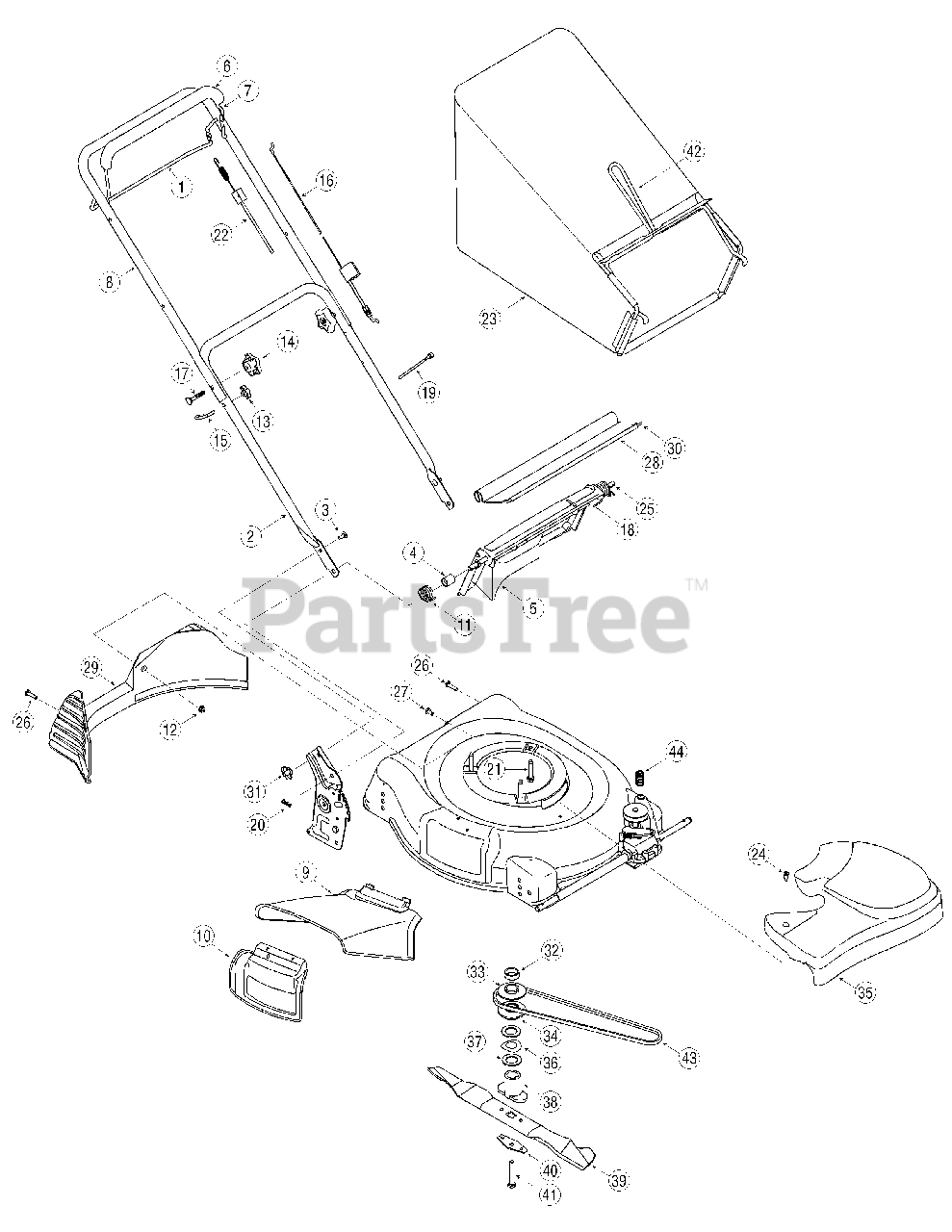

General Assembly Parts Diagram

  • Title
1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

3

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

4

MTD 750-04162

Spacer.375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

5

MTD 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

6

MTD 731-2626

Deluxe Bail Cover

$11.99

$

In Stock, only 2 left!

0

7

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

8

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

11

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

12

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-04072

Handle Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-1113

Control Cable - 37.75"
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

19

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, only 4 left!

0

22

MTD 746-04203

Drive Cable - 51"
(Superseded to 946-04203)

$48.99

$

In Stock, Qty 5

0

23

MTD 664-04027

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

26

MTD 710-04371

Screw, 1/4-15 x 1.25

$6.99

$

Usually ships in 3-6 days

0

27

MTD 710-0286

Screw, 1/4-20 x .500

$4.49

$

Usually ships in 3-6 days

0

28

MTD 731-04998

Rear Trailing Shield

$31.99

$

In Stock, Qty 7

0

29

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

32

MTD 750-04438A

Sleeve Spacer

$4.99

$

Usually ships in 3-6 days

0

33

MTD 756-04161

Upper Half Pulley
(Superseded to 956-04161)

$13.99

$

In Stock, only 1 left!

0

34

MTD 756-04160

Key Half Pulley
(Superseded to 956-04160)

$20.99

$

Usually ships in 3-6 days

0

35

MTD 731-05021A

Transmission Cover
(Superseded to 931-05021A)

$62.99

$

Usually ships in 3-6 days

0

36

MTD 736-04173

Sprg Washer, 1.005 x 1.825 x .048

$13.99

$

In Stock, only 2 left!

0

37

MTD 736-0250

Flat Washer, 1.00 x 1.75 x .107

$4.49

$

Usually ships in 3-6 days

0

38

MTD 748-04082

Blade Adapter w/ Star

$37.99

$

Usually ships in 3-6 days

0

39

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

40

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

41

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

42

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

43

MTD 754-04101

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

44

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0
