12A-569Q701 - Yard-Man Walk-Behind Mower (2006) Drive and Wheels Assembly Parts Diagram

Walk-Behind Mower

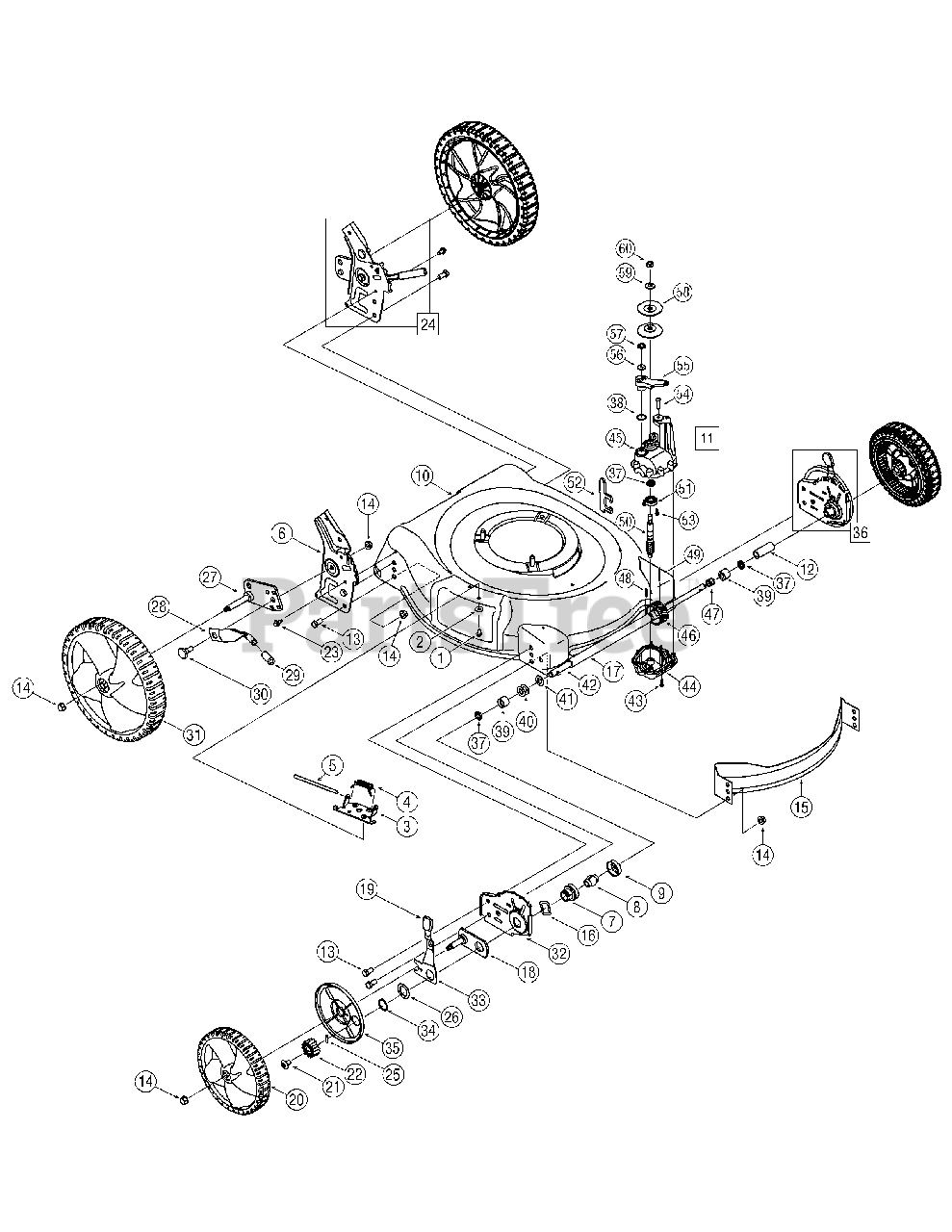

Drive and Wheels Assembly Parts Diagram

  • Title

1

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

4

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

5

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 687-02192

Handle Bracket - RH
(Superseded to 987-02056)

$

$

Not available

6

MTD 687-02191

Handle Bracket - LH

$

$

Not available

7

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

8

MTD 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

9

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

10

MTD 787-01278

21" Deck

Variations

MTD 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

MTD 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

MTD 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

MTD 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

MTD 618-04376

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

12

MTD 750-04595

Slev. Spacer 1.4" Lg.

$4.99

$

In Stock, only 1 left!

0

13

MTD 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

14

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

16

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

17

MTD 750-04594

Sleeve Spacer 8.985" Lg.

$9.49

$

In Stock, only 1 left!

0

18

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

19

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

20

MTD 634-04100

Front Wheel 8 x 1.8
(Superseded to 634-04100A)

$39.99

$

In Stock, Qty 17

0

21

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

22

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

22

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

23

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

24

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

24

MTD 687-02056

Handle Bracket Assembly - RH
(Superseded to 987-02056)

$

$

Not available

25

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

27

MTD 687-02039A

Pivot Arm Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

27

MTD 687-02040A

Pivot Arm Assembly - LH
(Superseded to 987-02336)

$

$

Not available

28

MTD 732-0866

Rear Spring Lever

$

$

Not available

29

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

30

MTD 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

31

MTD 734-04089

Rear Wheel, 12 x 1.8

$58.99

$

Usually ships in 3-6 days

0

32

MTD 787-01298

Height Adjuster Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

32

MTD 787-01299

Height Adjuster Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

33

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

33

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

34

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

35

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

36

MTD 687-02194

Height Adjustment Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

36

MTD 687-02193

Height Adjustment Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

37

MTD 721-04107

Oil Seal
(Superseded to 721-04107A)

$4.99

$

In Stock, only 4 left!

0

38

MTD 721-04110

O-ring

$

$

Not available

39

MTD 741-04106

Plastic Bushing

$

$

Not available

40

MTD 736-04224

Flat Washer

$3.99

$

Usually ships in 3-6 days

0

41

MTD 736-0572

Flat Washer
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

42

MTD 711-04429

Output Shaft

$

$

Not available

43

MTD 710-04329

Torx Screw

$4.99

$

In Stock, only 2 left!

0

44

MTD 731-04883

Lower Housing

$

$

Not available

45

MTD 731-04931A

Upper Housing

$

$

Not available

46

MTD 717-04156

28 Tooth Gear

$

$

Currently unavailable

47

MTD 732-04290

Compression Spring

$

$

Not available

48

MTD 715-0129

Spirol Pin

$4.99

$

In Stock, only 1 left!

0

49

MTD 715-04030

Dowel Pin

$

$

Not available

50

MTD 711-04317

Pinion Shaft

$

$

Not available

51

MTD 741-04116

Ball Bearing

$7.99

$

In Stock, only 1 left!

0

52

MTD 707-04409A

Shifter Fork

$

$

Currently unavailable

53

MTD 710-04374

Hex Screw

$3.99

$

In Stock, Qty 12

0

54

MTD 710-0969

Screw, #12-16 x 1.00

$4.49

$

In Stock, only 2 left!

0

55

MTD 731-04932

Clutch Lever

$

$

Not available

56

MTD 736-04178A

Slotted Washer

$9.99

$

Usually ships in 3-6 days

0

57

MTD 726-04043

Push Nut
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

58

MTD 756-04132

Pulley, 3.82 x.313 x.68

$

$

Not available

59

MTD 736-0105

Bell Washer.325 x.930 x.45

$4.49

$

In Stock, Qty 20+

0

60

MTD 712-0214

Hex Lock Nut, 3/8-24

$6.49

$

In Stock, only 3 left!

0
