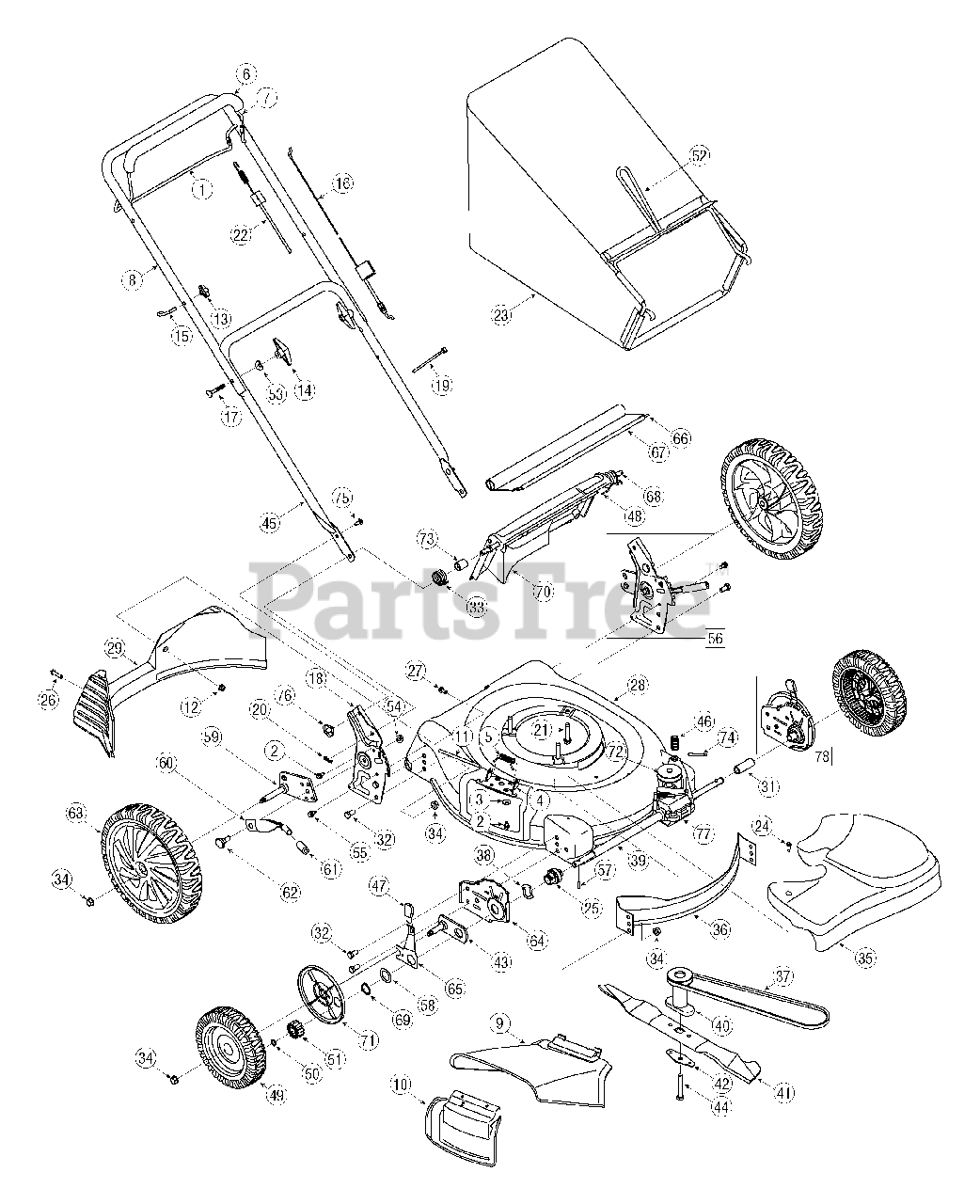

12A-569K730 - Huskee Walk-Behind Mower (2005) (Tractor Supply) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

MTD 731-2626

Deluxe Bail Cover

Note: If Equipped

$11.99

$

In Stock, only 2 left!

0

7

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

8

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

11

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, only 4 left!

0

MTD 746-04039

Control Cable - 56"
(Superseded to 946-04039)

$

$

Not available

MTD 746-1141

Control Cable - 58.25"
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 687-02033

Handle Bracket - RH
(Superseded to 987-02033)

$

$

Not available

MTD 687-02031

Handle Bracket - LH

$

$

Not available

19

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, Qty 20+

0

22

MTD 746-04112A

Drive Cable - 50.50"
(Superseded to 946-04112A)

$36.99

$

In Stock, Qty 10

0

23

MTD 664-04007

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 682-0015

Front Bearing Assembly
(Superseded to 982-0015)

$31.99

$

Usually ships in 3-6 days

0

26

MTD 710-04371

Screw, 1/4-15 x 1.25

$6.99

$

Usually ships in 3-6 days

0

27

MTD 710-0286

Screw, 1/4-20 x.500

$4.49

$

Usually ships in 3-6 days

0

28

MTD 787-01222

21" Deck
(Superseded to 753-05204)

Variations

MTD 787-01222-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01222-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 731-04150

Rear Baffle
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

30

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: (Not Shown)

$10.99

$

In Stock, only 2 left!

0

31

MTD 750-1166

Slev. Spacer 2.1" Lg.

$4.99

$

Usually ships in 3-6 days

0

32

MTD 710-0216

Hex Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 14

0

33

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

35

MTD 731-05065

Transmission Cover (Gray)
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

36

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

MTD 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

38

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-04178

Sleeve Spacer 9.04" Lg.

$

$

Not available

40

MTD 748-04015A

Blade Adapter w/ Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

41

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

43

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

46

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

49

MTD 734-2042

Front Wheel 8 x 2.125
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

50

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

51

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

54

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

55

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

MTD 687-02056

Handle Bracket Assembly - RH
(Superseded to 987-02056)

$

$

Not available

57

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

MTD 687-02039

Pivot Arm Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

MTD 687-02040

Pivot Arm Assembly - LH
(Superseded to 987-02336)

$

$

Not available

60

MTD 732-0866

Rear Spring Lever

$

$

Not available

61

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

62

MTD 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

63

MTD 734-04093

Rear Wheel, 12 x 2.125

$67.99

$

In Stock, only 2 left!

0

64

MTD 782-0512B

Height Adjuster Plate - RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

MTD 782-0511A

Height Adjuster Plate - LH
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

66

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

67

MTD 731-04998

Rear Trailing Shield

$31.99

$

In Stock, Qty 7

0

68

MTD 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

69

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

70

MTD 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

71

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

72

MTD 756-04017

Input Pulley

$28.99

$

Usually ships in 3-6 days

0

73

MTD 750-04162

Spacer.375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

74

MTD 715-04011

Roll Pin

$5.49

$

Usually ships in 3-6 days

0

75

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 20+

0

76

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

77

MTD 618-0657

Transmission Assembly
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

78

MTD 682-0512A

Height Adjustment Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-0511A

Height Adjustment Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0
