12A-568Q062 - Yard Machines Walk-Behind Mower (2000) (Lowes) Transmission Assembly Parts Diagram

Walk-Behind Mower

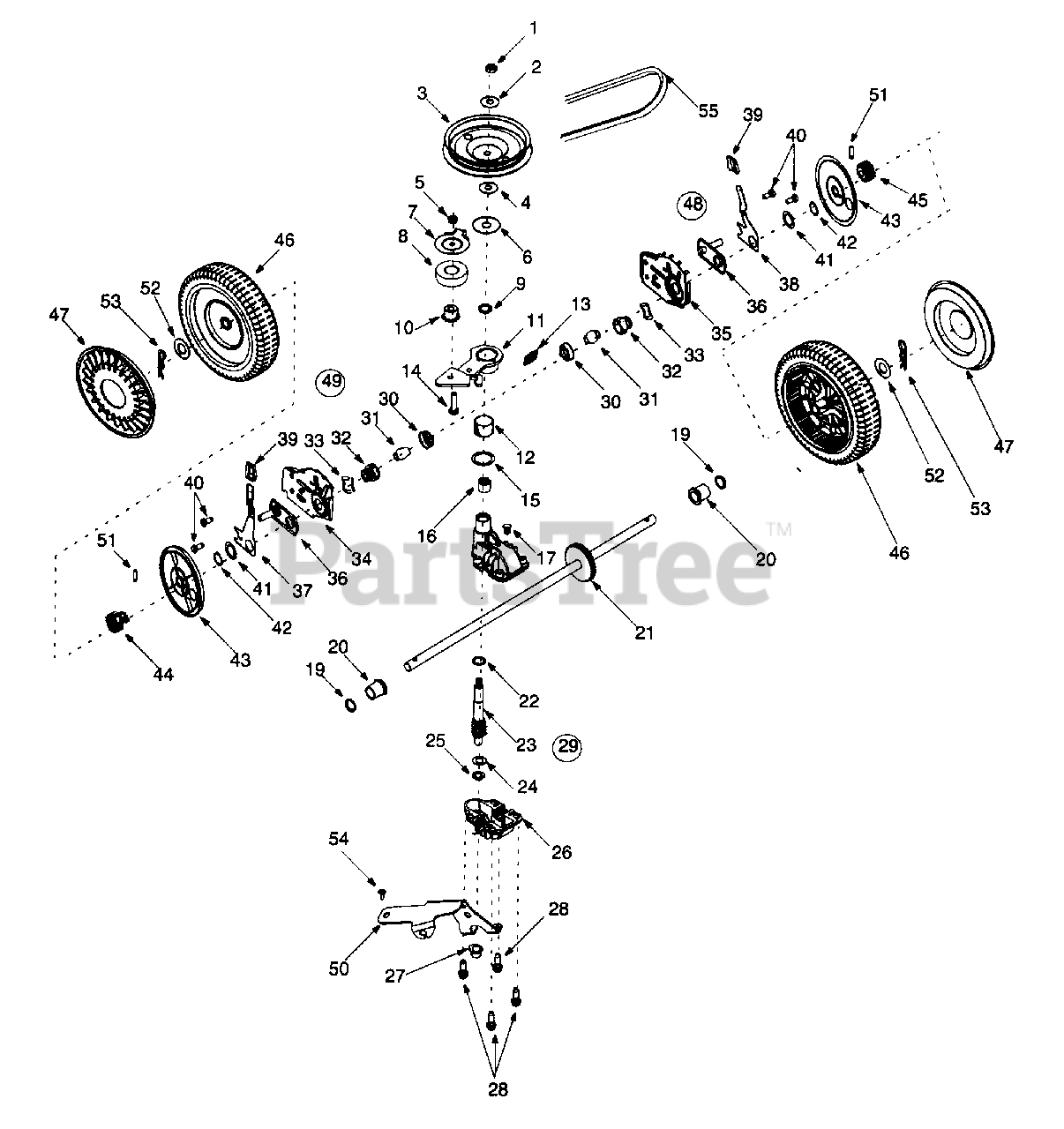

Transmission Assembly Parts Diagram

  • Title

1

MTD 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

2

MTD 736-0425

Bell Washer .325 x .930 x .045

$4.99

$

In Stock, Qty 13

0

3

MTD 756-1042

Pulley, 3.82 x .313 x .68
(Superseded to 656-0047)

$

$

Not available

4

MTD 736-0425

Bell Washer .325 x .930 x .045

$4.99

$

In Stock, Qty 13

0

5

MTD 712-0896

Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

6

MTD 736-0406

Flat Washer .442 x 1.38 x .060
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

7

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

8

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

9

MTD 721-0457

Oil Seal

$

$

Not available

10

MTD 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

11

MTD 682-0028

Idler Bracket Assembly
(Superseded to 682-0029)

$

$

Not available

12

MTD 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

13

MTD 732-0849A

Extension Spring
(Superseded to 932-0849A)

$4.49

$

In Stock, only 1 left!

0

14

MTD 710-0299

Hex Cap Screw 1/4-28 x 1.00

$4.49

$

Usually ships in 3-6 days

0

15

MTD 736-0570

Flat Washer .865 x 1.145 x .030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

16

MTD 741-0699

Needle Bearing .438 x .625 x .500

$

$

Not available

17

MTD 721-0325

Plug 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

?18

MTD 618-0300A

Upper Housing

$

$

Not available

19

MTD 721-0329

Oil Seal .500 x .687 x .094
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

21

MTD 611-0105

Output Shaft
(Superseded to 611-0105A)

$123.99

$

Usually ships in 3-6 days

0

22

MTD 736-0520

Flat Washer .504 x .700 x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

23

MTD 717-1492

Pinion Shaft 10T

$

$

Not available

24

MTD 736-0314

Thrust Washer .375 x .70 x .030

$6.99

$

Usually ships in 3-6 days

0

25

MTD 736-0569

Thrust Washer .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

26

MTD 618-0299A

Lower Housing

$

$

Not available

27

MTD 741-0672

Flange Bearing .378 x .531 x .370

$

$

Not available

28

MTD 710-1276

Hex Screw w/Washer 1/4-20 x .750

$4.49

$

Usually ships in 3-6 days

0

29

MTD 618-0298A

Transmission Assembly
(Superseded to 918-0298A)

Note: (Includes Ref. # 1 to Ref. #30)

$

$

Not available

30

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

31

MTD 741-0604

Bearing Sleeve .50 I.D.
(Superseded to 741-0604A)

$12.99

$

In Stock, Qty 12

0

32

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

33

MTD 736-0447

Wave Washer 1.5 x 1.0 x .029

$4.49

$

In Stock, Qty 20+

0

34

MTD 782-0512B

RH Height Adj. Plate
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

35

MTD 782-0511A

LH Height Adj. Plate
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 682-0509

Pivot Plate Assembly

$

$

Not available

37

MTD 732-0706

RH Front Lever

$15.99

$

In Stock, only 4 left!

0

38

MTD 732-0707

LH Front Lever

$15.99

$

In Stock, only 1 left!

0

39

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

41

MTD 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

42

MTD 716-0102

Snap Ring 1.0 dia.

$5.49

$

In Stock, Qty 20+

0

43

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

44

MTD 717-1534

Gear 14T RH FWD

$

$

Not available

45

MTD 717-1533

Gear 14T LH FWD

$12.99

$

In Stock, only 3 left!

0

46

MTD 734-1983

Wheel, 8x2 Black
(Superseded to 734-04223A)

$55.99

$

In Stock, Qty 20+

0

47

MTD 731-1426

Hubcap: Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

48

MTD 682-0512A

RH Height Adj. Complete
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

49

MTD 682-0511A

LH Height Adj. Complete
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

50

MTD 682-0030

Cable Idler Bracket

$

$

Not available

51

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-3013

Flat Washer 1/2 x 1.00 x .063

$4.49

$

In Stock, only 3 left!

0

53

MTD 714-0101

Cotter Pin .08 x 1.42

$4.99

$

In Stock, only 2 left!

0

54

MTD 738-1002

Screw

$4.49

$

In Stock, only 1 left!

0

55

MTD 754-0465

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0
