12A-567A796 - Yard-Man Walk-Behind Mower (2004) General Assembly A796 Parts Diagram

Walk-Behind Mower

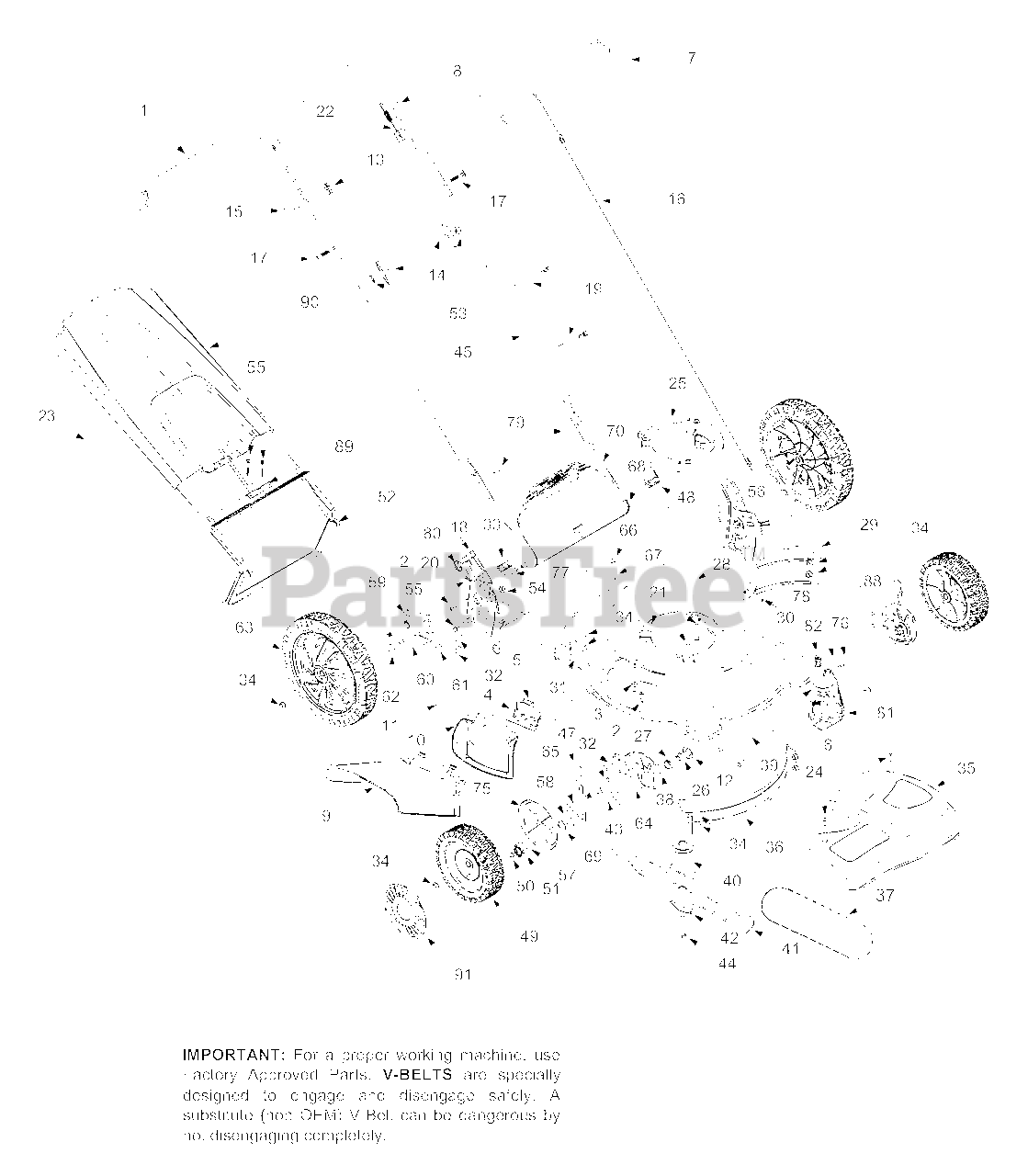

General Assembly A796 Parts Diagram

  • Title

1

MTD 747-1214

Lower Bail Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

MTD 756-04017

Input Pulley

$28.99

$

Usually ships in 3-6 days

0

7

MTD 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

8

MTD 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 987-02055

Mulch Plug Complete

$27.99

$

In Stock, Qty 10

0

11

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-04072A

Handle Knob

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-1114

Control Cable - 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 987-02033

RH Handle Bracket

$

$

Not available

18

MTD 987-02031

LH Handle Bracket

$

$

Not available

19

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1008

Self-Tapping Sems Screw

$5.49

$

In Stock, Qty 8

0

22

MTD 746-04112A

Drive Cable - 50.50"
(Superseded to 946-04112A)

$36.99

$

In Stock, Qty 10

0

23

MTD 964-04007A

Grassbag Assembly

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 631-0075B

Engine Spacer

$

$

Not available

26

MTD 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

27

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

28

MTD 787-01278-0665

21" Deck

$

$

Not available

29

MTD 782-5003A

LH Rear Baffle

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Screw AB: 1/4-14:.625

$8.49

$

In Stock, Qty 9

0

31

MTD 782-5004B

RH Rear Baffle

$24.99

$

Usually ships in 3-6 days

0

32

MTD 710-0216

Hex Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

33

MTD 932-04090

Torsion Spring RH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

35

MTD 931-04580

Transmission Cover (Yellow)

$

$

Not available

36

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

MTD 954-0637A

V-Belt

$14.99

$

In Stock, Qty 20+

0

38

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-04178

Sleeve Spacer 9.04" Lg.

$

$

Not available

40

MTD 948-04015A

Blade Adapter w/ Pulley

$65.99

$

Usually ships in 3-6 days

0

41

MTD 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

43

MTD 987-02044

Pivot Plate Assembly

$

$

Not available

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 2 left!

0

47

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-04089

Torsion Spring LH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

49

MTD 734-2042A

Wheel 8 x 2.125

$38.99

$

In Stock, Qty 12

0

50

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

51

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

MTD 717-1761

Gear 14T LH FWD

Note: (Not Shown)

$13.99

$

In Stock, only 4 left!

0

52

MTD 747-04080A-0637

Grass Bag Frame
(Superseded to 747-04080A)

$59.99

$

In Stock, Qty 5

0

53

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

54

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

55

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 987-02056

RH Handle Bracket Assembly

$

$

Not available

56

MTD 987-02057

LH Handle Bracket Assembly

$

$

Not available

57

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

MTD 987-02039A

Pivot Arm Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

59

MTD 987-02040A

Pivot Arm Assembly - LH
(Superseded to 987-02336)

$

$

Not available

60

MTD 732-0866

Rear Spring Lever

$

$

Not available

61

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

62

MTD 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, only 4 left!

0

63

MTD 734-04046

Wheel, 12 x 2.125

$72.99

$

Usually ships in 3-6 days

0

64

MTD 782-0512B-0637

Height Adjuster Plate - RH

$22.99

$

In Stock, only 1 left!

0

64

MTD 782-0511A-0637

Height Adjuster Plate - LH

$

$

Not available

65

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

65

MTD 732-0707

Front Lever - LH

Note: (Not Shown)

$15.99

$

In Stock, only 1 left!

0

66

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

67

MTD 731-04998

Rear Trailing Shield

$31.99

$

In Stock, Qty 7

0

68

MTD 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

69

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

70

MTD 931-04134

Rear Discharge Door

$

$

Not available

75

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

76

MTD 750-1166

Slev. Spacer 2.1" Lg.

$4.99

$

Usually ships in 3-6 days

0

77

MTD 750-04162

Spacer .375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

78

MTD 715-04011

Roll Pin

$5.49

$

Usually ships in 3-6 days

0

79

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

80

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

81

MTD 753-05465

Transmission Assembly

$245.99

$

Usually ships in 3-6 days

0

82

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

88

MTD 987-02194

Height Adjustment Assembly RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

88

MTD 987-02193

Height Adjustment Assembly LH
(Superseded to 987-02193A)

Note: (Not Shown)

$66.99

$

Usually ships in 3-6 days

0
