12A-565I401 - Yard-Man Walk-Behind Mower (2003) General Assembly (Plastic Rear Door) Parts Diagram

Walk-Behind Mower

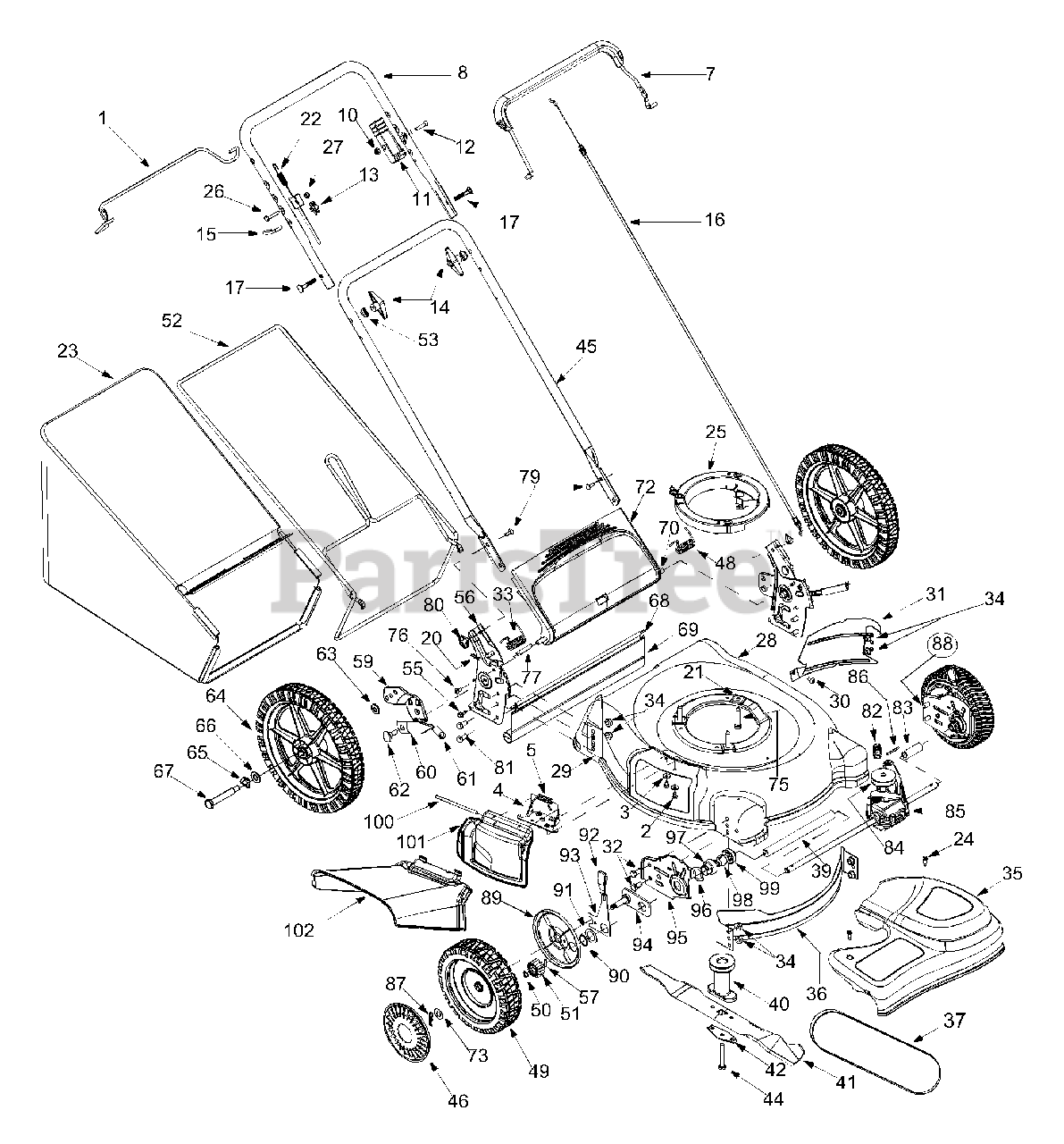

General Assembly (Plastic Rear Door) Parts Diagram

  • Title

1

MTD 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

MTD 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer .265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 782-7006

Hinged Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

5

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

MTD 712-3005

Lock Nut

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0

7

MTD 647-04014

Control Lever

$40.99

$

Usually ships in 3-6 days

0

8

MTD 749-1499

Upper Handle

Variations

MTD 749-1499-0637

No Longer Available HANDLE-UPPER SHORT - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 712-0324

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

11

MTD 746-0883

Throttle Housing

$16.99

$

In Stock, only 3 left!

0

12

MTD 710-1270

Oval C-Sunk Screw 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-0554

Control Cable: 40.5"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

16

MTD 746-0555

Control Cable: 55"
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

MTD 687-02034

RH Bracket Assembly

Note: Not shown

$

$

Not available

MTD 687-02032

LH Bracket Assembly
(Superseded to 987-02032)

Note: Not shown

$

$

Not available

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1008

Self-Tapping Sems Screw

$5.49

$

In Stock, Qty 8

0

22

MTD 746-04026

Drive Cable
(Superseded to 946-04026)

$53.99

$

In Stock, Qty 7

0

23

MTD 664-04011

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 631-0075B

Engine Spacer

$

$

Not available

26

MTD 710-0606

Hex Bolt 1/4-20 x 1.5

$5.49

$

In Stock, Qty 10

0

27

MTD 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

28

NA

21" Deck

$

$

Not available

29

MTD 782-5003

RH Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Screw AB: 1/4-14: .625

$8.49

$

In Stock, Qty 9

0

31

MTD 782-5004A

LH Rear Baffle
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

32

MTD 710-0216

Hex Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

33

MTD 732-04089

Torsion Spring
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-0431

Hex Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

35

MTD 731-2600

Transmission Cover (Yellow)
(Superseded to 931-04580)

$

$

Not available

36

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

MTD 712-0324

Hex Nut 1/4-20

Note: Not shown

$3.99

$

In Stock, Qty 16

0

39

NA

Axle: Front

$

$

Not available

40

MTD 748-04015

Blade Adapter w/ Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

41

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

MTD 710-0606

Hex Screw 1/4-20 x 1.50

Note: Not shown

$5.49

$

In Stock, Qty 10

0

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

46

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

MTD 712-0431

Flange Lock Nut
(Superseded to 912-0431)

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

48

MTD 732-04090

Torsion Spring
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

49

MTD 734-2042

Wheel 8 x 2
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

50

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

51

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

51

MTD 717-1762

Gear 14T RH FWD Not shown in illustration

$13.99

$

In Stock, only 3 left!

0

52

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

MTD 712-3005

Hex Flange Lock Nut 3/8-16

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0

55

MTD 710-0896

Hex Scr. w/Washer 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

56

MTD 687-02033

RH Handle Bracket
(Superseded to 987-02033)

$

$

Not available

56

MTD 687-02032

LH Handle Bracket
(Superseded to 987-02032)

$

$

Not available

57

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

MTD 710-0286

Pan Head Screw

Note: Not shown

$4.49

$

Usually ships in 3-6 days

0

59

MTD 17488A

RH Pivot Bar

$15.99

$

In Stock, only 3 left!

0

59

MTD 17489A

LH Pivot Bar Not shown in illustration

$15.99

$

In Stock, only 1 left!

0

60

MTD 732-0866

Height Adj. Lever

$

$

Not available

61

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

62

MTD 738-0507B

Shoulder Scr .500 Dia. x .434

$4.49

$

In Stock, only 4 left!

0

63

MTD 736-0105

Washer .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

64

MTD 734-2043

Wheel, 14 x 2.125

$

$

Not available

65

MTD 736-0182

Spring Washer .50 I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 7

0

66

MTD 736-0272

Flat Washer

$4.99

$

In Stock, Qty 20+

0

67

MTD 738-0481A

Shoulder Screw
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

68

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

69

MTD 731-1236

Rear Trailing Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

70

MTD 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

MTD 732-04090

Torsion Spring
(Superseded to 732-04090A)

Note: Not shown

$7.99

$

Usually ships in 3-6 days

0

72

MTD 731-04134

Rear Discharge Door
(Superseded to 931-04134)

$

$

Not available

73

MTD 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

75

MTD 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

76

MTD 710-0286

Machine Screw

$4.49

$

Usually ships in 3-6 days

0

77

MTD 750-04162

Spacer .375 x .50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

MTD 738-1002

Shoulder Screw 1/4-14

Note: Not shown

$4.49

$

In Stock, only 1 left!

0

79

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

80

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

81

MTD 710-0216

Hex Bolt 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 15

0

82

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

83

MTD 750-1165

Slev. Spacer RH
(Superseded to 750-1210)

$

$

Not available

83

MTD 750-1166

Slev. Spacer LH Not shown in illustration

$4.99

$

Usually ships in 3-6 days

0

84

MTD 756-1231

Input Pulley

$

$

Not available

85

MTD 618-0657

Transmission Assembly
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

86

MTD 715-0169

Roll Pin

$

$

Not available

87

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

88

MTD 682-0512A

Height Adjustment Assembly RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

88

MTD 682-0511A

Height Adjustment Assembly LH Not shown in illustration
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

89

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

90

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

91

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

92

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

93

MTD 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

93

MTD 732-0707

Front Lever LH Not shown in illustration

$15.99

$

In Stock, only 1 left!

0

94

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

95

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

95

MTD 782-0511A

Height Adj. Plate LH Not shown in illustration
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

96

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

97

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

98

MTD 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

99

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

100

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

101

MTD 687-02055

Mulch Plug Comp.
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

102

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0
