12A-565H136 - Yard Machines Walk-Behind Mower (1999) (Homebase) General Assembly Parts Diagram

Walk-Behind Mower

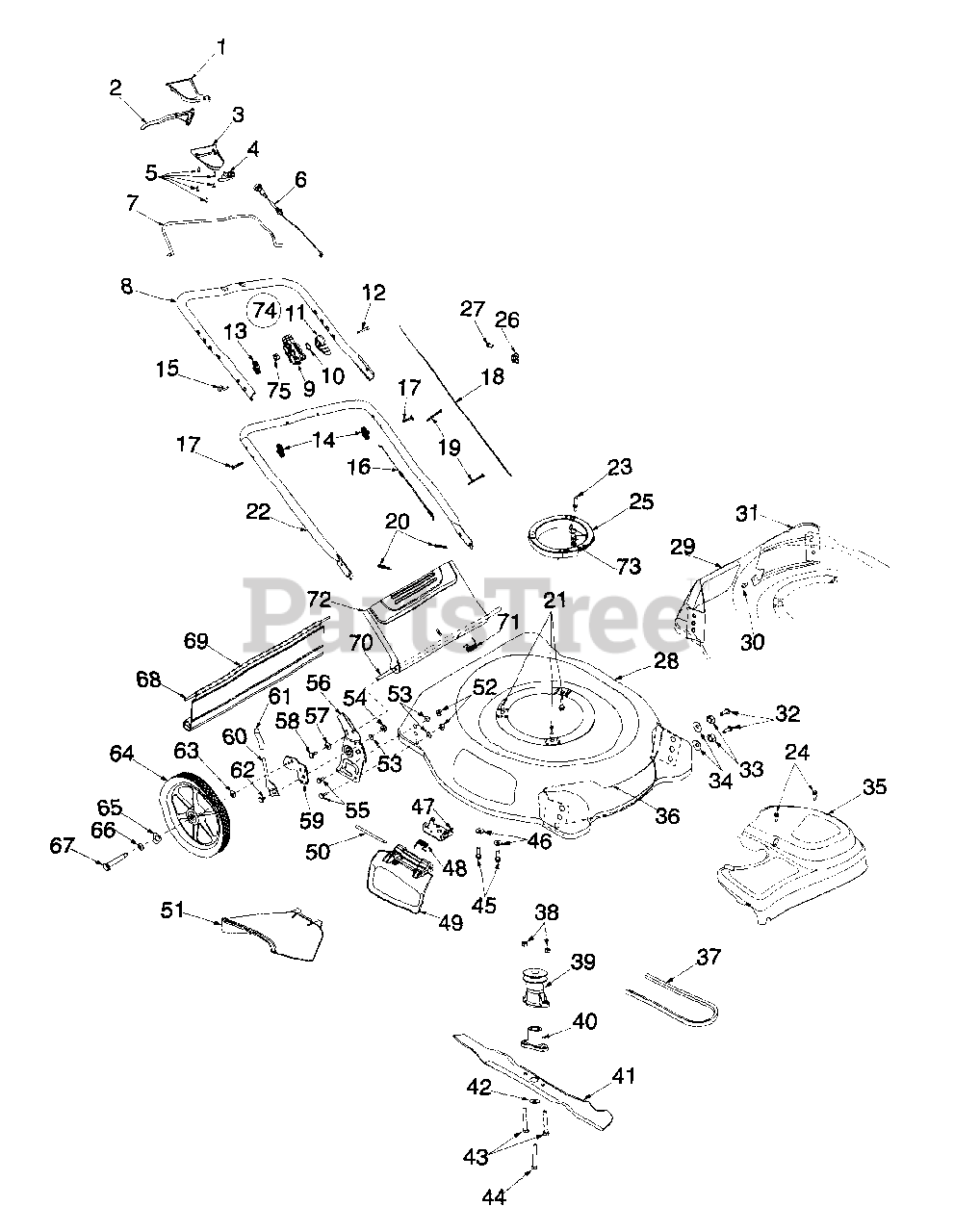

General Assembly Parts Diagram

  • Title

1

MTD 731-1057

Upper Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

2

MTD 731-0620

Drive Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

3

MTD 731-1058

Lower Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

4

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

5

MTD 710-1667

Screw #10-16 x .625
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

6

MTD 746-0960

Drive Cable
(Superseded to 946-0960)

$49.99

$

Usually ships in 3-6 days

0

7

MTD 747-0824

Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Deluxe Control Lever
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

8

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

9

MTD 746-0875

Throttle Hsg.
(Superseded to 946-0875)

Note: (Optional)

$9.49

$

In Stock, only 3 left!

0

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

10

MTD 736-0501

Curved Washer .663 x .980 x .014
(Superseded to 936-0501)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

11

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: (Optional)

$8.49

$

In Stock, only 2 left!

0

12

MTD 710-0605

Screw Oval C-Sunk 1/4-20 x 1.81

Note: (Used w/746-0875). (Optional)

$4.49

$

In Stock, only 3 left!

0

11

MTD 710-1270

Screw Oval C-Sunk 1/4-20 x 1.31

Note: (Used w/746-0883)

$4.49

$

Usually ships in 3-6 days

0

13

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0276

Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

15

MTD 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-0843

Throttle Cable: 55"
(Superseded to 946-0671A)

Note: B&S. (Optional)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0847

Throttle Cable: 42"
(Superseded to 946-1115)

Note: Tec. (Optional)

$28.99

$

In Stock, only 1 left!

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 746-0550

Control Cable: 39"
(Superseded to 946-0550)

Note: B&S

$21.99

$

In Stock, only 3 left!

0

MTD 746-0737

Control Cable: 51"
(Superseded to 946-0737)

Note: Tec

$28.99

$

In Stock, only 4 left!

0

19

MTD 726-0240

Tie Cable
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1008

Tapp Screw w/ Hex Lock Wash

$5.49

$

In Stock, Qty 8

0

22

MTD 749-0907A

Handle - Lower
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

23

MTD 711-1293

Pin-Belt Keeper

$4.99

$

Usually ships in 3-6 days

0

24

MTD 7510042824

Screw #12 x .457
(Superseded to 710-1650)

$4.99

$

In Stock, Qty 20+

0

25

MTD 631-0075

Engine Spacer
(Superseded to 631-0075B)

$

$

Not available

26

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: (B&S). (Optional)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp
(Superseded to TC-27793)

Note: (Tec). (Optional)

$1.99

$

In Stock, only 2 left!

0

27

MTD 710-1237

Hex Screw: T: #10-32 x .625 Lg.

Note: (B&S). (Optional)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Screw: #10-32 x .38 Lg.

Note: (Tec). (Optional)

$

$

Not available

28

MTD 782-0082A

21" RD Deck

Variations

MTD 782-0082A-0638

No Longer Available DECK 21 RD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0082A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 782-0082A-0650

No Longer Available DECK 21 RD - RED METALLIC (0650)

$

$

Not available

MTD 782-0082A-0662

No Longer Available DECK 21 RD - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0082A-0665

No Longer Available DECK 21 RD - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0082A-0667

No Longer Available DECK 21 RD - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 782-0082A-0689

No Longer Available DECK 21 RD - POLO GREEN (0689)

$

$

Not available

MTD 782-0082A-0691

No Longer Available DECK 21 RD - BLACK JACK (0691)

$

$

Not available

MTD 782-0082A-0698

No Longer Available - HUNTER GREEN (0698)

$

$

Not available

MTD 782-0082A-0709

"No Longer Available DECK 21""RD" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

29

MTD 782-5004

Rear Baffle Right
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Scr:AB:1/4-14:.625: Trustrx

$8.49

$

In Stock, Qty 9

0

31

MTD 782-5003

Rear Baffle Left
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

32

MTD 710-0216

Hex Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

33

MTD 736-0331

Bell Wash .39 x 1.13 x .062

$3.99

$

In Stock, Qty 10

0

34

MTD 712-3005

Hex Nut 3/8-16 (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

35

MTD 731-1936A

Trans Cover - Black
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

MTD 731-1937A

Trans Cover - Yellow
(Superseded to 931-04580)

$

$

Not available

MTD 731-2101A

Trans Cover - Gray

$

$

Not available

36

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 754-0465

V Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 20+

0

38

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

39

MTD 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

40

MTD 753-0825

Blade Adapter Kit
(Superseded to 753-05151)

Note: (Inc), Ref. 38,42,43,44)

$67.99

$

Usually ships in 3-6 days

0

41

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0452

Bell Washer .396 I.D. x 1.140 O.D. x .095

$4.99

$

In Stock, Qty 7

0

43

MTD 710-0606

Hex Screw 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 710-0599

Tapp Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0270

Bell Wash .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

47

MTD 782-7006

Hinged Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

48

MTD 732-0731

Torsion Spring .290 ID x 1.95
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

49

MTD 682-7000

Mulch Plug Ass'y.

$

$

Not available

50

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

51

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

52

MTD 712-3005

Hex Nut 3/8-16 (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

53

MTD 736-0356

Bell Wash .39 ID x 1.38 OD
(Superseded to 936-0356)

$

$

Not available

54

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

55

MTD 710-1652

Hex Screw w/wash 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

56

MTD 682-3056A

Handle Bracket Ass'y RH

Variations

MTD 682-3056A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3056A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

MTD 682-3057A

Handle Bracket Ass'y LH
(Superseded to 753-05922)

Variations

MTD 682-3057A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

MTD 682-3057A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

57

MTD 736-0270

Bell Wash .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

58

MTD 710-0599

Hex Screw TT 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

59

MTD 17488A

Pivot Bar RH

$15.99

$

In Stock, only 3 left!

0

MTD 17489A

Pivot Bar LH

$15.99

$

In Stock, only 1 left!

0

60

MTD 732-0866

Height Adj Lever

$

$

Not available

61

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

62

MTD 738-0507B

Shldr Screw .500 Dia x .434

$4.49

$

In Stock, only 4 left!

0

63

MTD 736-0105

Wash. .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

64

MTD 734-1860

Wheel Comp. 14 x 2 Yellow Link Tread
(Superseded to 734-1860A)

$

$

Not available

MTD 734-1861

Wheel Comp. 14 x 2 Gray Link Tread

$70.99

$

Usually ships in 3-6 days

0

MTD 734-1864

Wheel Comp. 14 x 1.8 Gray Bar Tread
(Superseded to 734-04030)

$76.99

$

In Stock, only 1 left!

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

Note: N/I. (2 per Wheel - Incl. w/No. 64 )

$7.49

$

In Stock, only 1 left!

0

65

MTD 736-0182

Spring Washer .50 ID x 1.0 OD

$4.49

$

In Stock, Qty 7

0

66

MTD 736-0456

Flat Washer .510 x 1.373 x .04
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

67

MTD 738-0481

Shldr Screw .500 x 2.62 3/8-16
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

68

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

69

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

70

MTD 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

71

MTD 732-0809

Torsion Spring
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

72

MTD 782-7599A

RD Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 712-0271

Hex Nut 1/4-20 Thread

$4.49

$

In Stock, Qty 10

0

74

MTD 811-00185

Throttle Comp.
(Superseded to 811-0185)

Note: (Inc. Ref. 9,10,11,12,75 ). (Optional)

$36.99

$

In Stock, only 1 left!

0

75

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0
