12A-565H136 - Yard Machines Walk-Behind Mower (1999) (Homebase) Accessories Electric Start (Opt.) & Grass Catcher Parts Diagram

Walk-Behind Mower

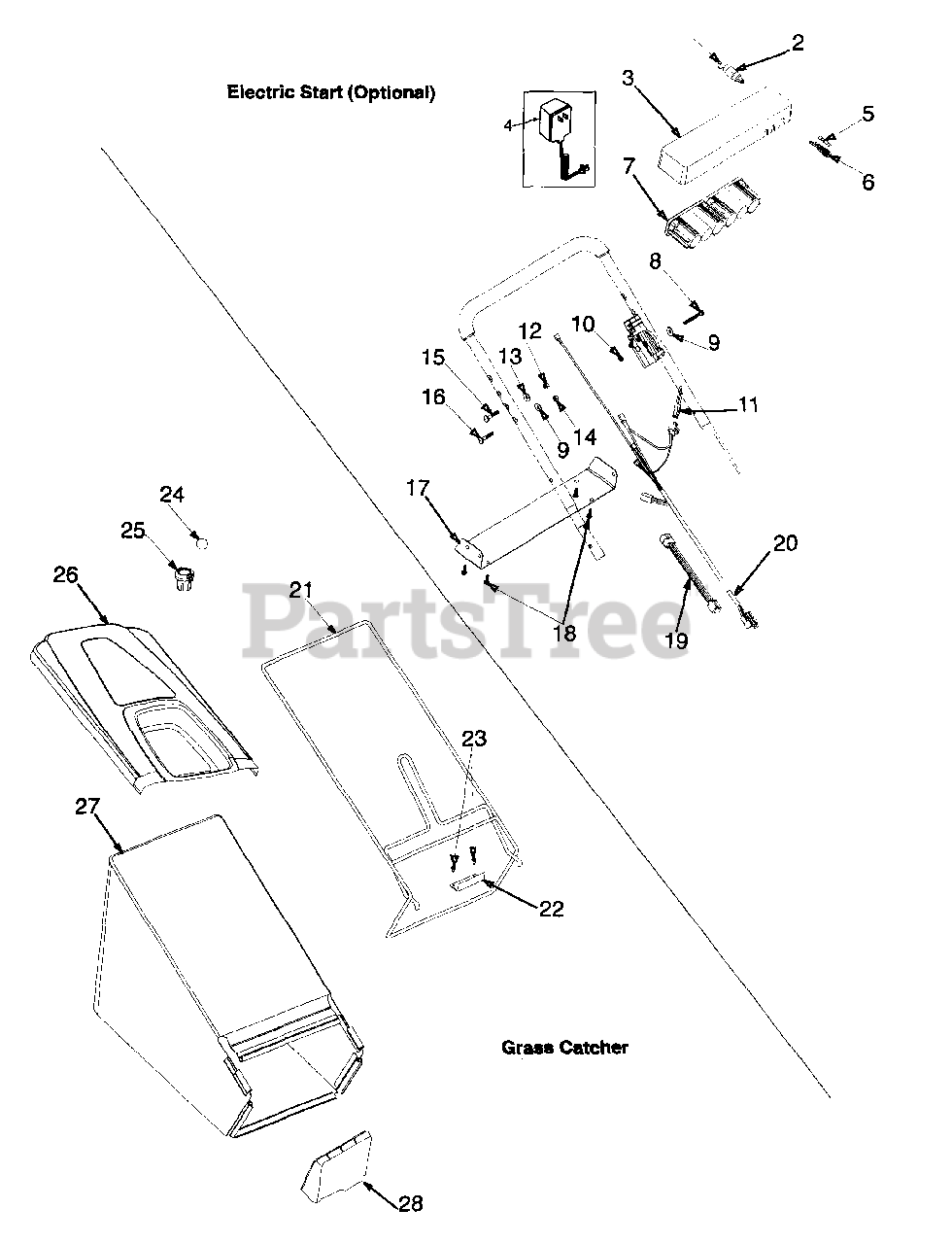

Accessories Electric Start (Opt.) & Grass Catcher Parts Diagram

  • Title

?1

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

2

MTD 725-0873

Key Switch
(Superseded to 925-0873)

$

$

Not available

3

MTD 731-0891A

Battery Tray

$

$

Not available

4

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

5

MTD 725-0298

Fuse 7.5 Amp
(Superseded to 925-0298)

$

$

Not available

6

MTD 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

7

MTD 725-1276

Battery 12V
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

8

MTD 710-0501

Hex Screw:1/4-20:2.0

$7.49

$

Usually ships in 3-6 days

0

9

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0329

Special Hex Nut 5/16-18

$

$

Not available

11

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

12

MTD 712-0267

Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell Wash .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

MTD 710-1250

Carriage Bolt 5/16-18 x 1

$4.99

$

In Stock, Qty 5

0

16

MTD 710-0111

Carriage Screw

$3.99

$

Usually ships in 3-6 days

0

17

MTD 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

MTD 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0969

Tapp Screw

$4.49

$

In Stock, only 2 left!

0

19

MTD 725-1538

Harness Extension

$

$

Not available

20

MTD 725-1442

Harness
(Superseded to 925-1442)

$

$

Not available

21

MTD 747-0995A

Catcher Frame
(Superseded to 747-0995A-0637)

Variations

MTD 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

22

MTD 782-9050

Mounting Bracket
(Superseded to 782-9050-0637)

Variations

MTD 782-9050-0637

BRACKET-MTG - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0896

Hex Screw 1/4 -14 .625

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-1644

Flow Ball

$

$

Not available

25

MTD 631-0060

Indicator Flow Assembly
(Superseded to 931-0060)

$

$

Not available

26

MTD 731-0066

Hard Top Cover w/Logo

$

$

Not available

MTD 731-0068

Hard Top Cover

$

$

Not available

MTD 631-0077

Hard Top Asm. w/Flow Indicator

$

$

Not available

MTD 631-0078

Hard Top Asm. w/Flow Ind. & Icon
(Superseded to 731-0066)

$

$

Not available

27

MTD 664-0084

Grass Bag
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

MTD 664-0085

Grass Bag w/Logo
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

28

MTD 782-5007A

Mulcher Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0
