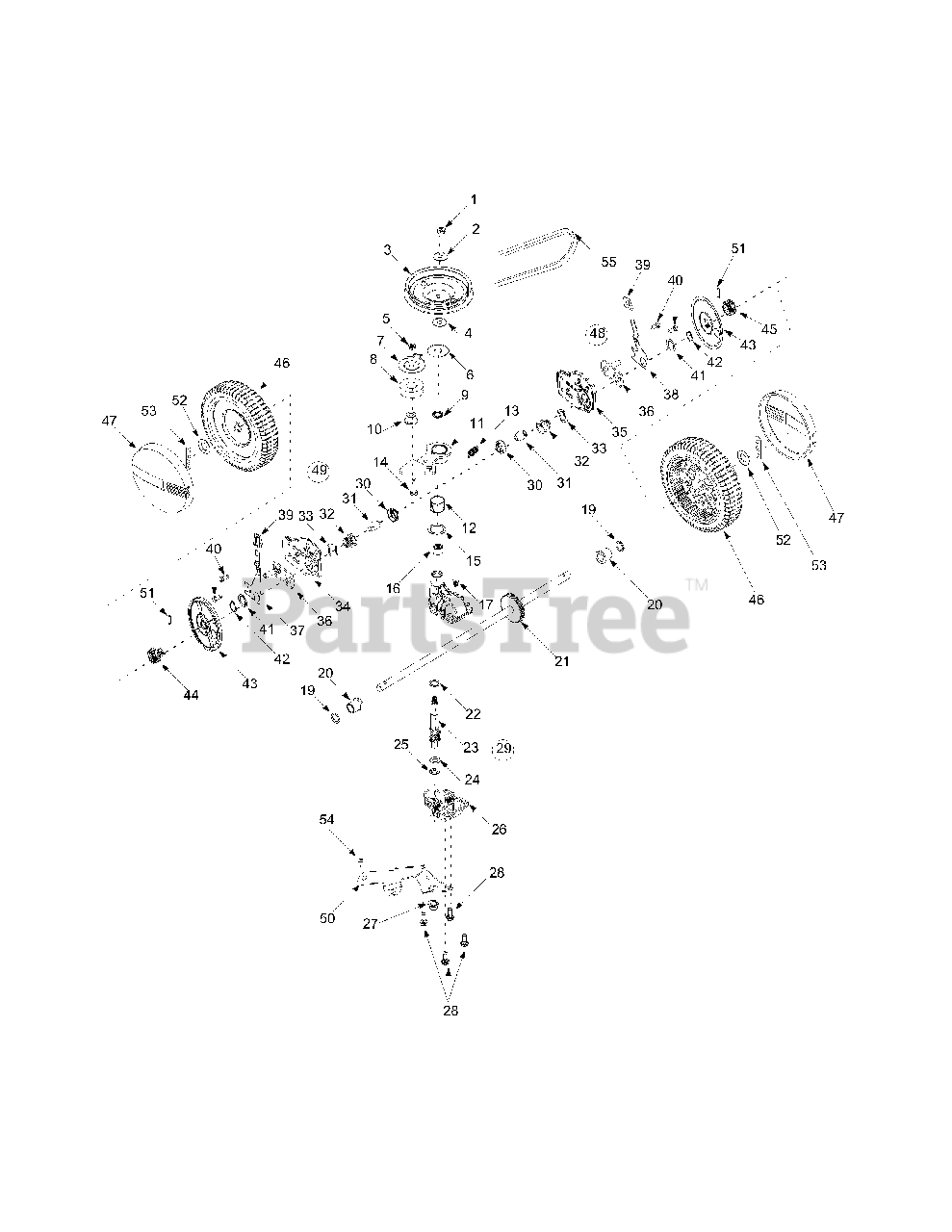

12A-558Q401 - Yard-Man Walk-Behind Mower (2000) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

MTD 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

2

MTD 936-0425

Bell Washer .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

3

MTD 656-0047

Pulley 3.82 x .313 x .68

$

$

Not available

4

MTD 936-0425

Bell Washer .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

5

MTD 712-0896

Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

6

MTD 936-0406

Flat Washer .442 x 1.38 x .060

$6.99

$

In Stock, Qty 11

0

7

MTD 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

8

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

9

MTD 721-0457

Oil Seal

$

$

Not available

10

MTD 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

11

MTD 682-0028

Idler Bracket Assembly
(Superseded to 682-0029)

$

$

Not available

12

MTD 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

13

MTD 932-0849A

Flat Washer .504 x .700 x.030

$4.49

$

In Stock, only 1 left!

0

14

MTD 710-0299

Hex Cap Screw 1/4-28 x 1.00

$4.49

$

Usually ships in 3-6 days

0

15

MTD 936-0570

Flat Washer .865 x 1.145 x .030

$5.99

$

Usually ships in 3-6 days

0

16

MTD 741-0699

Needle Bearing .438 x .625 x .500

$

$

Not available

17

MTD 721-0325

Plug 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

18

MTD 618-0300A

Upper Housing

$

$

Not available

19

MTD 921-0329

Oil Seal .500 x .687 x .094

$10.99

$

Usually ships in 3-6 days

0

20

MTD 941-0673

Flange Bearing

$6.49

$

In Stock, only 2 left!

0

21

MTD 611-0105A

Output Shaft

$123.99

$

Usually ships in 3-6 days

0

22

MTD 936-0520

Flat Washer .504 x .700 x .030

$5.99

$

Usually ships in 3-6 days

0

23

MTD 717-1492

Pinion Shaft 10T

$

$

Not available

24

MTD 936-0314

Thrust Washer .375 x .70 x .030
(Superseded to 736-0314)

$

$

Not available

25

MTD 936-0569

Thrust Washer .388 x .625 x .062

$

$

Not available

26

MTD 618-0299A

Lower Housing

$

$

Not available

27

MTD 741-0672

Flange Bearing .378 x .531 x .370

$

$

Not available

28

MTD 710-1276

Hex Screw Washer 1/4-20 x .750

$4.49

$

Usually ships in 3-6 days

0

29

MTD 918-0298A

Transmission Assembly

$

$

Not available

30

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

31

MTD 741-0604A

Bearing Sleeve .50 I.D.

$12.99

$

In Stock, Qty 12

0

32

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

33

MTD 936-0447

Wave Washer 1.5 x 1.0 x .029
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

34

MTD 782-0512B-0637

RH Height Adjuster Plate

$22.99

$

In Stock, only 1 left!

0

35

MTD 782-0511A-0637

LH Height Adjuster Plate

$

$

Not available

36

NLA

Pivot Plate Assembly

Note: 682-0509

$

$

Not available

37

MTD 732-0706

RH Front Lever

$15.99

$

In Stock, only 4 left!

0

38

MTD 732-0707

LH Front Lever

$15.99

$

In Stock, only 1 left!

0

39

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

41

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

42

MTD 916-0102

Snap Ring 1.0 Dia.
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

43

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

44

MTD 717-1534

Gear 14T RH FWD

$

$

Not available

45

MTD 717-1533

Gear 14T LH FWD

$12.99

$

In Stock, only 3 left!

0

46

MTD 734-04223A

Wheel, 8x2

$55.99

$

In Stock, Qty 20+

0

47

MTD 731-1426B

Hubcap

$8.99

$

Usually ships in 3-6 days

0

48

MTD 987-02194

RH Height Adj. Complete
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

49

MTD 987-02193

LH Height Adj. Complete
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

50

MTD 682-0030

Cable Idler Bracket

$

$

Not available

51

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

52

MTD 936-3013

Flat Washer 1/2 x 1.00 x .063
(Superseded to 736-3013)

$4.49

$

In Stock, only 3 left!

0

53

MTD 914-0101

Cotter Pin .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

54

MTD 738-1002

Screw

$4.49

$

In Stock, only 1 left!

0

55

MTD 954-04032B

Belt

$25.99

$

In Stock, Qty 13

0
