12A-46MZ231 - Huskee Walk-Behind Mower (2009) (Tractor Supply) General Assembly Parts Diagram

Walk-Behind Mower

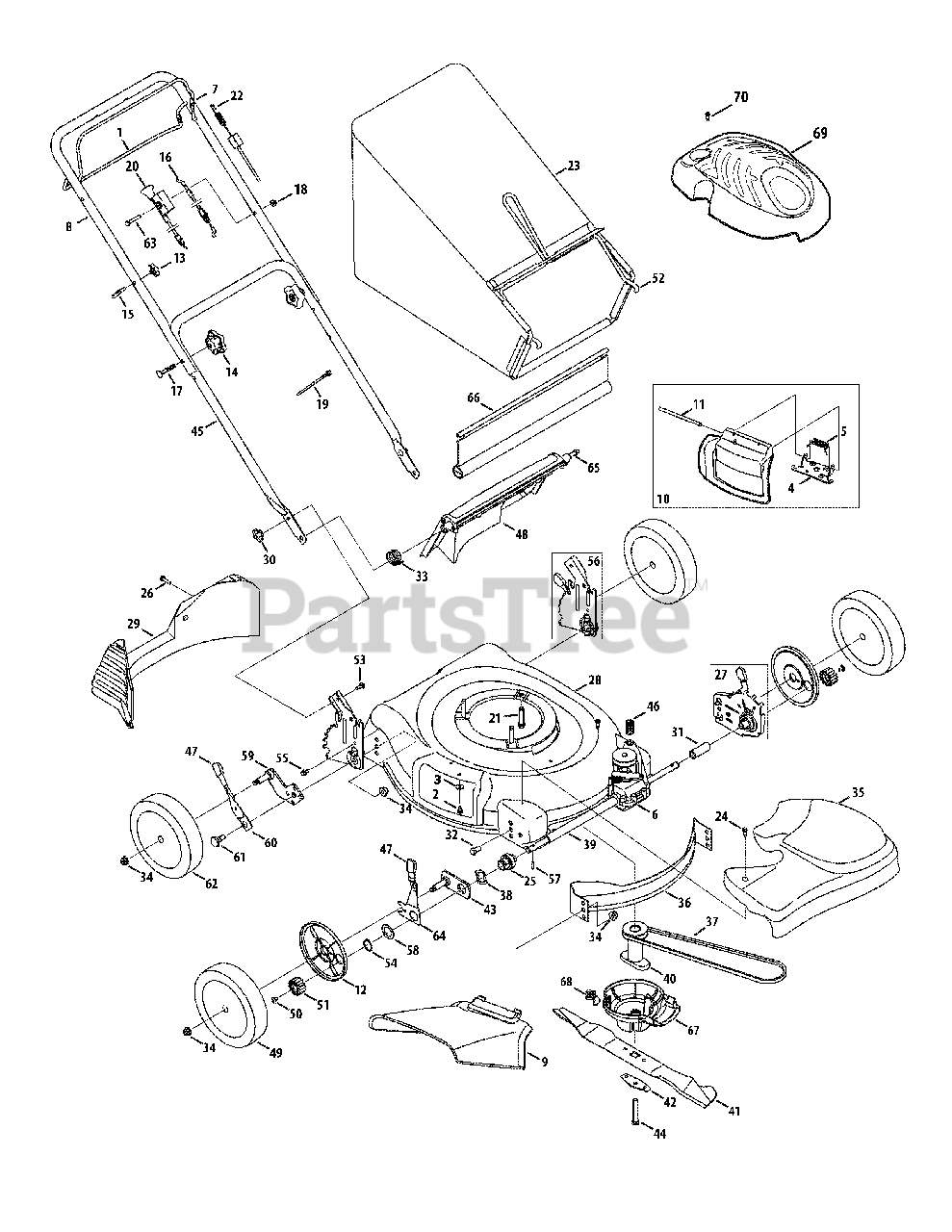

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

MTD 918-04376A

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

7

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 1 left!

0

8

MTD 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 987-02055

Mulch Plug Complete

$27.99

$

In Stock, Qty 10

0

11

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-04299

Control Cable
(Superseded to 946-04299)

$28.99

$

In Stock, Qty 5

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

19

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 746-04239A

Choke Cable

$49.99

$

Usually ships in 3-6 days

0

21

MTD 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, only 4 left!

0

22

MTD 746-04303

Drive Cable
(Superseded to 946-04303)

$34.99

$

In Stock, only 1 left!

0

23

MTD 964-04007A

Grassbag

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 987-02347

Front Bearing Assembly

$17.99

$

In Stock, only 3 left!

0

26

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 18

0

27

MTD 987-02194A

Height Adjustment Ass’y - RH

$66.99

$

Usually ships in 3-6 days

0

27

MTD 987-02193A

Height Adjustment Ass’y - LH

$66.99

$

Usually ships in 3-6 days

0

28

MTD 787-01278-0638

21" Deck

$

$

Not available

29

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

31

MTD 750-04595

Slev. Spacer 1.4" Lg.

$4.99

$

In Stock, only 1 left!

0

32

MTD 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

33

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

MTD 931-05013A

Transmission Cover

$52.99

$

Usually ships in 3-6 days

0

36

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

MTD 954-0637A

V-Belt

$14.99

$

In Stock, Qty 20+

0

38

MTD 936-0447

Wave Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-04594

Sleeve Spacer 8.985" Lg.

$9.49

$

In Stock, only 1 left!

0

40

MTD 948-04015A

One Piece Blade Adapter

$65.99

$

Usually ships in 3-6 days

0

41

MTD 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

43

MTD 987-02334

Pivot Plate Assembly

$9.99

$

In Stock, Qty 5

0

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 2 left!

0

46

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 731-06847

Rear Discharge Door

$28.99

$

Usually ships in 3-6 days

0

49

MTD 634-0190

Front Wheel
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 17

0

50

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

51

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

54

MTD 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

55

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 987-02271A

Handle Bracket Assembly - RH

$

$

Not available

56

MTD 987-02270A

Handle Bracket Assembly - LH

$38.99

$

In Stock, only 1 left!

0

57

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

MTD 987-02333

Pivot Arm Assembly - RH

$17.99

$

In Stock, only 1 left!

0

59

MTD 987-02332

Pivot Arm Assembly - LH

$18.99

$

Usually ships in 3-6 days

0

60

MTD 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

61

MTD 738-04266

Shoulder Scr.500 Dia. x.434

$6.49

$

Usually ships in 3-6 days

0

62

MTD 734-1987

Rear Wheel

$23.99

$

In Stock, Qty 5

0

63

MTD 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

64

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

64

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

65

MTD 747-04587

Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

66

MTD 731-05642A

Rear Trailing Shield

$28.99

$

In Stock, Qty 9

0

67

MTD 931-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

Usually ships in 3-6 days

0

68

MTD 787-01593

Engine Baffle Bracket

$5.99

$

In Stock, Qty 5

0

69

MTD 731-06265

Engine Shroud
(Superseded to 731-06265A)

$33.99

$

Usually ships in 3-6 days

0

70

MTD 710-04744

Screw, HL, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0
