12A-469S204 - MTD Gold Walk-Behind Mower (2008) (Ace Hardware) General Assembly Parts Diagram

Gold Walk-Behind Mower

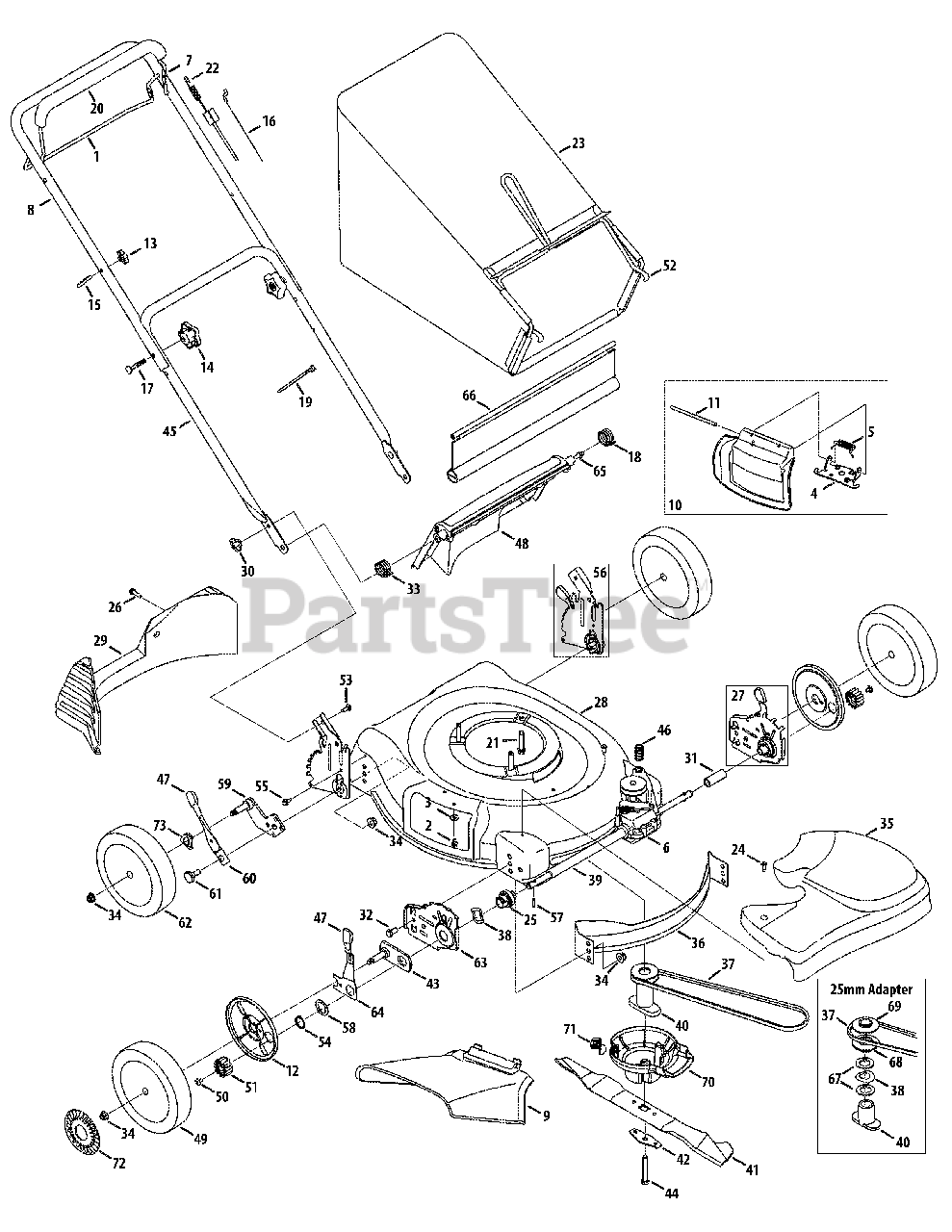

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer .265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

MTD 618-04376A

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

7

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

8

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

11

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

13

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

14

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

16

MTD 746-1132

Control Cable - 40.75''
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

19

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

MTD 731-2626

Bail Cover

Note: (If Equipped)

$11.99

$

In Stock, only 2 left!

0

21

MTD 710-0654A

Self - Tapping Sems Screw

$4.49

$

In Stock, only 3 left!

0

22

MTD 746-04203

Drive Cable - 51''
(Superseded to 946-04203)

$48.99

$

In Stock, Qty 7

0

23

MTD 664-04007A

Grassbag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw #12-24

$4.99

$

In Stock, Qty 20+

0

25

MTD 687-02347

Front Bearing Assembly
(Superseded to 987-02347)

$17.99

$

In Stock, only 3 left!

0

26

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

27

MTD 687-02194A

Height Adjustment Assembly - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

27

MTD 687-02193A

Height Adjustment Assembly - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

28

MTD 787-01278

21'' Deck

Variations

MTD 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

MTD 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

MTD 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

MTD 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

31

MTD 750-04595

Sleeve Spacer 1.4''

$4.99

$

In Stock, only 1 left!

0

32

MTD 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

33

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

MTD 731-05013A

Transmission Cover - Black
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

35

MTD 731-05250

Transmission Cover - Gray
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

36

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

MTD 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

38

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-04594

Sleeve Spacer 8.985''

$9.49

$

In Stock, only 1 left!

0

40

MTD 748-04015A

One Piece Blade Adapter
(Superseded to 948-04015A)

$65.99

$

In Stock, only 1 left!

0

40

MTD 748-04082

Blade Adapter, 25mm

Note: (If Equipped)

$37.99

$

Usually ships in 3-6 days

0

41

MTD 742-0741

21'' Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

43

MTD 687-02334

Pivot Plate Assembly
(Superseded to 987-02334)

$9.99

$

In Stock, Qty 5

0

44

MTD 710-1257

Hex Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 2 left!

0

45

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

46

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 731-05865

Rear Discharge Door
(Superseded to 731-06847)

$28.99

$

Usually ships in 3-6 days

0

49

MTD 734-2042

Front Wheel, 8 x 2.125, Zag
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

50

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

51

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

MTD 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

54

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

55

MTD 710-1652

TT Screw w/Washer 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

56

MTD 687-02271A

Handle Bracket Assembly - RH
(Superseded to 987-02271A)

$

$

Not available

56

MTD 687-02270A

Handle Bracket Assembly - LH
(Superseded to 987-02270A)

$38.99

$

In Stock, only 1 left!

0

57

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

58

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

MTD 687-02333

Pivot Arm Assembly - RH
(Superseded to 987-02333)

$17.99

$

In Stock, only 1 left!

0

59

MTD 687-02332

Pivot Arm Assembly - LH
(Superseded to 987-02332)

$18.99

$

Usually ships in 3-6 days

0

60

MTD 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

61

MTD 738-04266

Shoulder Screw .500 Dia x .434

$6.49

$

Usually ships in 3-6 days

0

62

MTD 734-2004A

Rear Wheel, 8 x 2.125, Zag w/BB
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

63

MTD 734-2005A

Rear Wheel, 8 x 2.125, Zag
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

63

MTD 782-01298

Height Adjuster Plate - RH

$

$

Currently unavailable

63

MTD 782-01299

Height Adjuster Plate - LH

$

$

Currently unavailable

64

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

64

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

65

MTD 747-04587

Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

66

MTD 731-05642

Rear Trailing Shield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

67

MTD 736-0277

Washer, Flat, 1.031 x 1.620 x .095

Note: (If Equipped)

$4.49

$

In Stock, only 1 left!

0

68

MTD 756-04160

Pulley, Half
(Superseded to 956-04160)

Note: (If Equipped)

$20.99

$

Usually ships in 3-6 days

0

69

MTD 756-04161

Pulley, Half
(Superseded to 956-04161)

Note: (If Equipped)

$13.99

$

In Stock, only 1 left!

0

70

MTD 731-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 2 left!

0

71

MTD 787-01593

Engine Baffle Bracket

$5.99

$

In Stock, Qty 5

0

72

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: (If Equipped)

$10.99

$

Usually ships in 3-6 days

0

73

MTD 736-0504

Washer, Wave .510 x .750 x .017
(Superseded to 936-0504)

Note: (If Equipped)

$4.49

$

In Stock, Qty 10

0
