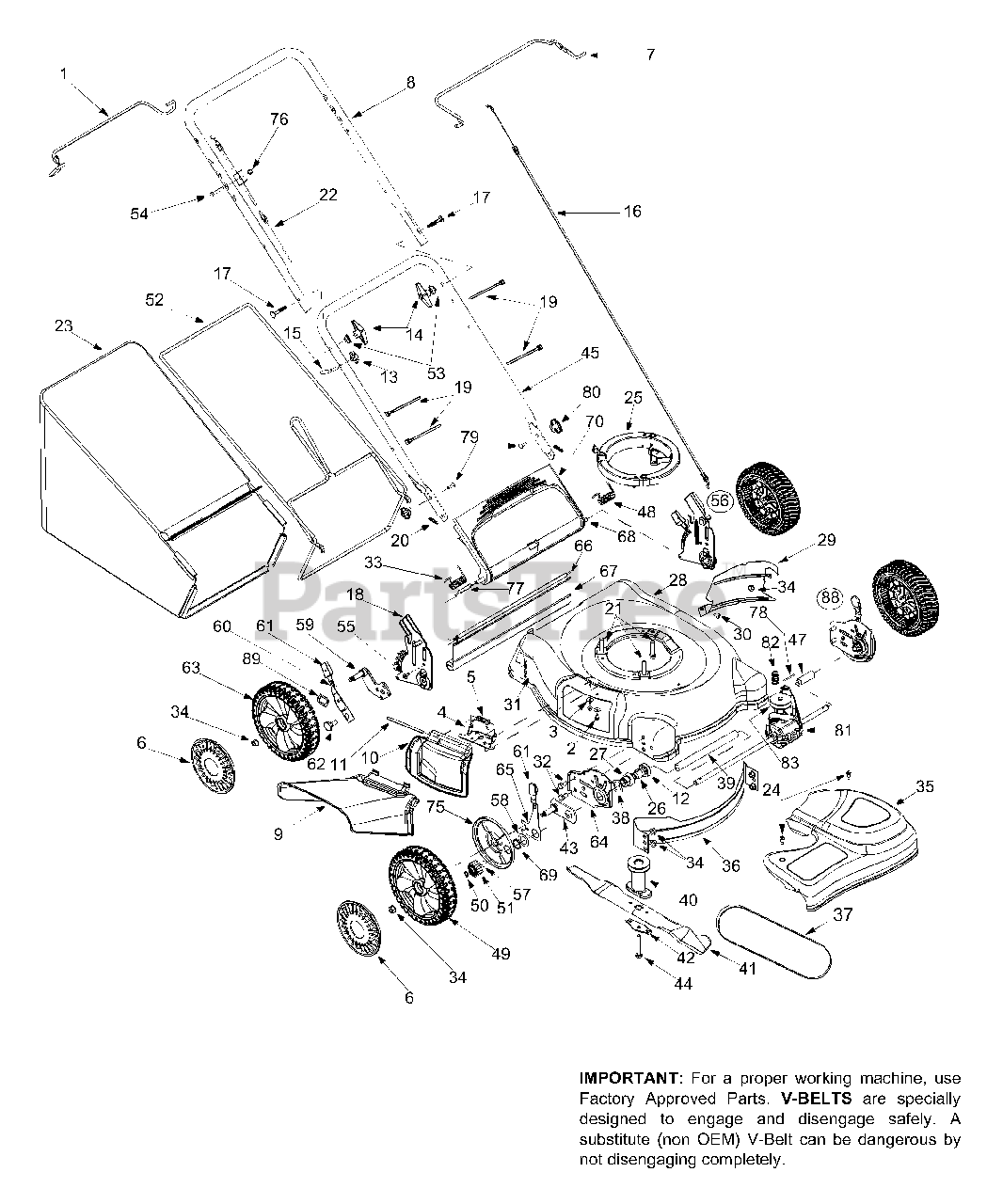

12A-469P701 - Yard-Man Walk-Behind Mower (2004) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Lower Bail Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

MTD 731-1426A

Hub Cap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

7

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

8

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

MTD 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

MTD 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

11

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

13

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

15

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, only 4 left!

0

17

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

MTD 787-01144

RH Handle Bracket
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 787-01143

LH Handle Bracket
(Superseded to 753-05994)

Note: Not Shown

$82.99

$

Usually ships in 3-6 days

0

19

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1008

Self-Tapping Sems Screw

$5.49

$

In Stock, Qty 7

0

22

MTD 746-04026

Drive Cable
(Superseded to 946-04026)

$53.99

$

In Stock, Qty 7

0

23

MTD 664-04027

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

MTD 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

MTD 631-0075B

Engine Spacer

$

$

Not available

26

MTD 741-0604A

Bearing Sleeve

$12.99

$

In Stock, Qty 12

0

27

MTD 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

28

MTD 787-01106

21" Deck

$

$

Currently unavailable

29

MTD 782-5003

LH Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-1017

Screw AB: 1/4-14:.625

$8.49

$

In Stock, Qty 9

0

31

MTD 782-5004A

RH Rear Baffle
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

32

MTD 710-0216

Hex Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 14

0

33

MTD 732-04090

Torsion Spring RH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

34

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

35

MTD 731-04580

Transmission Cover (Yellow)
(Superseded to 931-04580)

$

$

Not available

36

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

38

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-04178

Sleeve Spacer 9.04" Lg.

$

$

Not available

40

MTD 748-04015A

Blade Adapter w/ Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

41

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

43

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

44

MTD 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

47

MTD 750-1166

Slev. Spacer 2.1" Lg.

$4.99

$

Usually ships in 3-6 days

0

48

MTD 732-04089

Torsion Spring LH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

49

MTD 734-2042

Front Wheel
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

50

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

51

MTD 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH FWD

Note: Not Shown

$13.99

$

In Stock, only 4 left!

0

52

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

53

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

54

MTD 710-0606

Hex Screw 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

55

MTD 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 687-02068

RH Handle Bracket Assembly
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 687-02069

LH Handle Bracket Assembly
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

57

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

MTD 687-02071

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

60

MTD 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

61

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

62

MTD 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, Qty 20+

0

63

MTD 734-2004A

Rear Wheel
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

64

MTD 782-0512B

Height Adjuster Plate - RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

MTD 782-0511A

Height Adjuster Plate - LH
(Superseded to 782-0511A-0637)

Note: Not Shown

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever - LH

Note: Not Shown

$15.99

$

In Stock, only 1 left!

0

66

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

67

MTD 731-1236

Rear Trailing Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

68

MTD 747-04035

Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

69

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

70

MTD 731-04134

Rear Discharge Door
(Superseded to 931-04134)

$

$

Not available

75

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

76

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

77

MTD 750-04162

Spacer.375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

78

MTD 715-04011

Roll Pin

$5.49

$

Usually ships in 3-6 days

0

79

MTD 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 20+

0

80

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

81

MTD 618-0657

Transmission Assembly
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

82

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

83

MTD 756-04017

Input Pulley

$28.99

$

Usually ships in 3-6 days

0

88

MTD 682-0512A

Height Adjustment Assembly RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-0511A

Height Adjustment Assembly LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

89

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0
