12A-468C132 - Yard Machines Walk-Behind Mower (2001) (Central Tractor) Shroud Chart Parts Diagram

Walk-Behind Mower

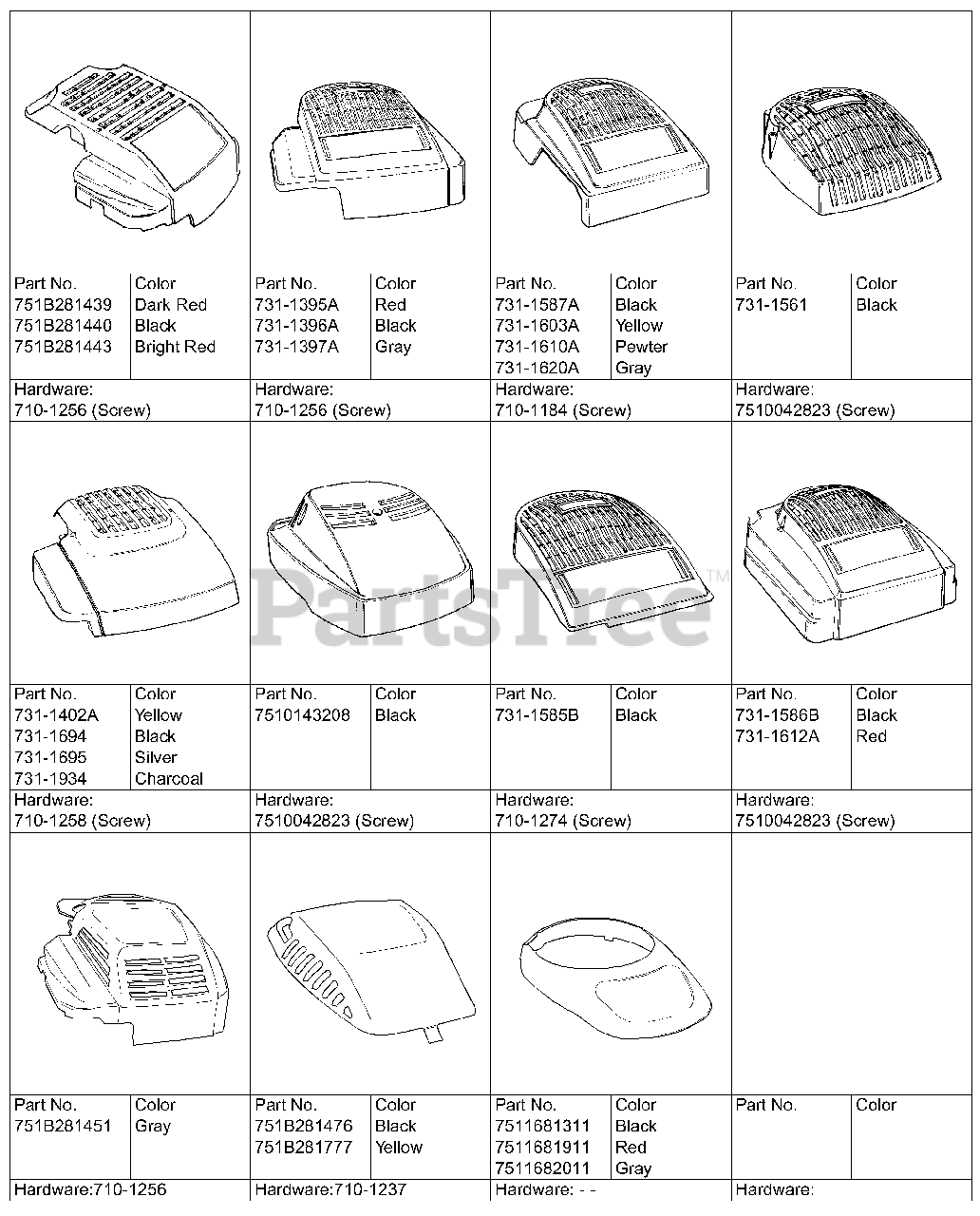

Shroud Chart Parts Diagram

  • Title
751B281439

MTD 751B281439

No Longer Available SHROUD

$

$

Not available

751B281440

MTD 751B281440

SHROUD ENG-BLACK-T

$

$

Not available

751B281443

MTD 751B281443

No Longer Available SHROUD

$

$

Not available

710-1256

MTD 710-1256

SCREW-PAN HD PHILS

$5.99

$

In Stock, only 2 left!

0

731-1395A

MTD 731-1395A

No Longer Available

$

$

Not available

731-1396A

MTD 731-1396A

SHROUD-ENGINE BLAC

$

$

Not available

731-1397A

MTD 731-1397A

USE 731-1396A SHROUD-ENGINE B
(Superseded to 731-1396A)

$

$

Not available

710-1256

MTD 710-1256

SCREW-PAN HD PHILS

$5.99

$

In Stock, only 2 left!

0

731-1587A

MTD 731-1587A

No Longer Available SHRD-ENG-Q

$

$

Not available

731-1603A

MTD 731-1603A

No Longer Available

$

$

Not available

731-1610A

MTD 731-1610A

No Longer Available SHROUD-ENG

$

$

Not available

731-1620A

MTD 731-1620A

No Longer Available SHROUD-ENG

$

$

Not available

710-1184

MTD 710-1184

No Longer Available PAN SCREW

$

$

Not available

731-1561

MTD 731-1561

No Longer Available SHROUD-ENG

$

$

Not available

731-1402A

MTD 731-1402A

No Longer Available

$

$

Not available

731-1694

MTD 731-1694

No Longer Available SHRD:ENG:B

$

$

Not available

731-1695

MTD 731-1695

No Longer Available SHROUD-ENG

$

$

Not available

731-1934

MTD 731-1934

SHROUD ENGINE

$

$

Not available

710-1258

MTD 710-1258

No Longer Available

$

$

Not available

7510143208

MTD 7510143208

No Longer Available SHROUD ENG

$

$

Not available

7510042823

MTD 7510042823

SCREW-SHLDR

$

$

Not available

731-1585B

MTD 731-1585B

No Longer Available SHRD-ENG-V

$

$

Not available

710-1274

MTD 710-1274

USE 910-1274 SCREW-PAN #10-32
(Superseded to 910-1274)

$

$

Not available

731-1586B

MTD 731-1586B

No Longer Available SHRD-ENG-V

$

$

Not available

731-1612A

MTD 731-1612A

No Longer Available

$

$

Not available

7510042823

MTD 7510042823

SCREW-SHLDR

$

$

Not available

751B281451

MTD 751B281451

SHROUD-ENG-XTL-GRAY

$

$

Not available

710-1256

MTD 710-1256

SCREW-PAN HD PHILS

$5.99

$

In Stock, only 2 left!

0

751B281476

MTD 751B281476

SHROUD-ENGINE BLAC

$

$

Not available

751B281777

MTD 751B281777

USE 751B281476 SHROUD-ENGINE
(Superseded to 751B281476)

$

$

Not available

710-1237

MTD 710-1237

SCREW-TAP

$4.49

$

Usually ships in 3-6 days

0

7511681311

MTD 7511681311

No Longer Available SHROUD-ENG

$

$

Not available

7511681911

MTD 7511681911

Engine Shroud Tecumseh; Red; Tecumseh Red

$

$

Currently unavailable

7511682011

MTD 7511682011

No Longer Available SHROUD-ENG

$

$

Not available
