12A-466N063 - Troy-Bilt Tuff-Cut 210 Walk-Behind Mower (2002) General Assembly Parts Diagram

Tuff-Cut 210 Walk-Behind Mower

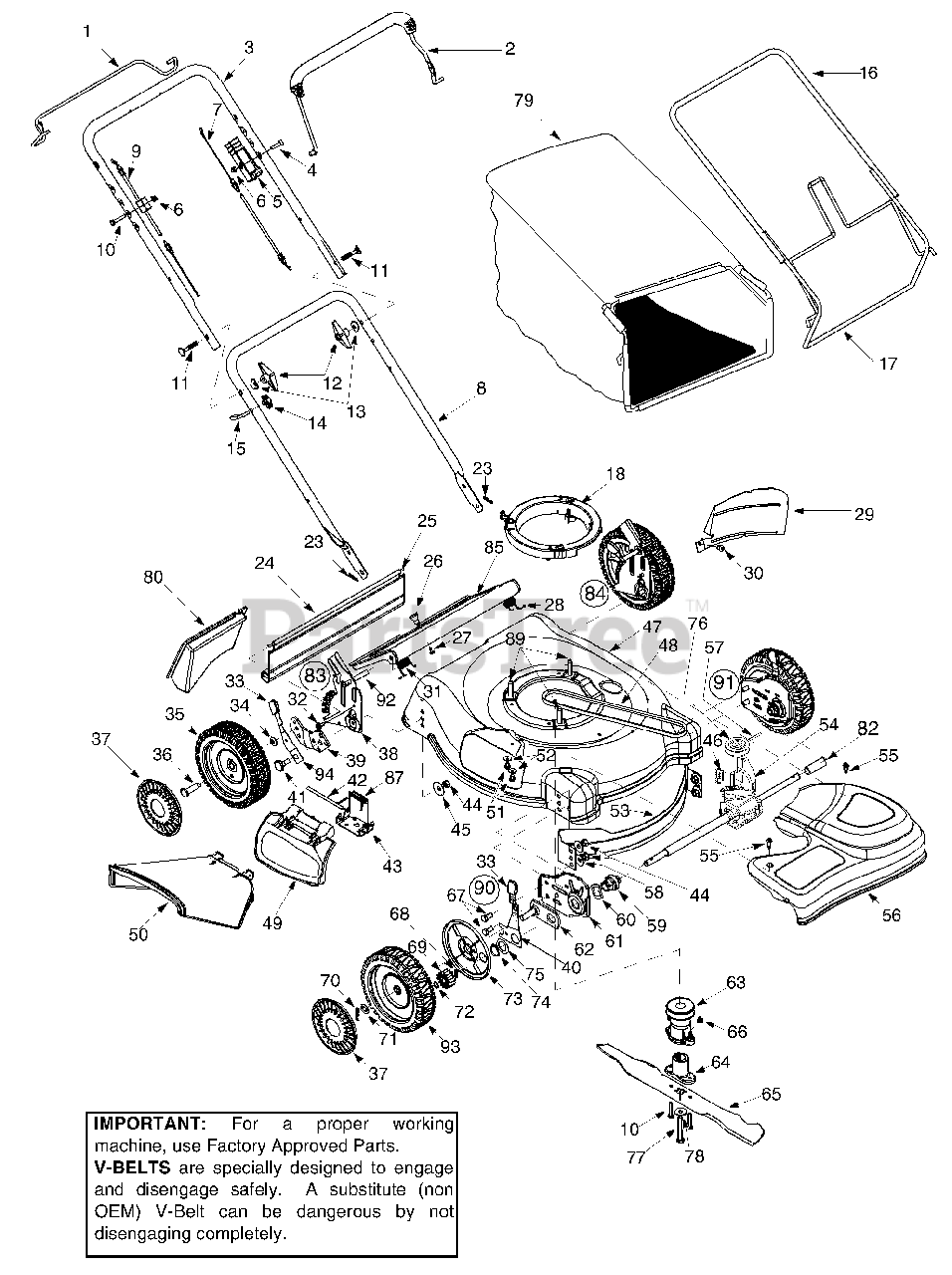

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-2136

Lower Bail Handle
(Superseded to 747-2136-0637)

Variations

Troy-Bilt 747-2136-0637

BAIL-DRIVE 21" UND - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 647-0004

Blade Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 749-1501

Upper Handle

Variations

Troy-Bilt 749-1501-0637

HANDLE-UPPER LONG - POWDER BLACK (0637)

$

$

Not available

$

$

4

Troy-Bilt 710-1270

Oval C-Sunk Scr. 1/4-20 x 1.31"

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

7

Troy-Bilt 746-0551

Control Cable: 43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 746-1146

Drive Cable
(Superseded to 946-04026)

$53.99

$

In Stock, Qty 7

0

10

Troy-Bilt 710-0606

Hex Screw 1/4-20 x 1.5"

$5.49

$

In Stock, Qty 9

0

11

Troy-Bilt 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 764-0310

Grass Catcher Frame: Rear
(Superseded to 764-0310A-0637)

Variations

Troy-Bilt 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 764-0311

Grass Catcher Frame: Front
(Superseded to 764-0311-0637)

Variations

Troy-Bilt 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

18

Troy-Bilt 631-0075B

Engine Spacer Assembly

$

$

Not available

23

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

25

Troy-Bilt 732-0700

Wire: Trail Shield
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 720-0275

Knob

$

$

Not available

27

Troy-Bilt 710-0192

Scr. Tr. Mach. #10-24 x 0.380"

$3.99

$

In Stock, Qty 12

0

28

Troy-Bilt 732-0677

Torsion Spring LH
(Superseded to 932-0677)

$

$

Not available

29

Troy-Bilt 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

Troy-Bilt 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 782-5004

Rear Baffle RH
(Superseded to 782-5004B)

Variations

Troy-Bilt 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 710-1017

Scr. AB 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

31

Troy-Bilt 732-0678

Torsion Spring RH

$8.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 710-0896

Hex Scr. w/ Wash. 1/4-14 x 0.62"

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 736-0105

Bell Washer .375 x .870

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 734-2004A

Wheel: Rear
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

36

Troy-Bilt 738-0102

Shoulder Screw

$9.99

$

In Stock, Qty 10

0

37

Troy-Bilt 731-0981A

Hubcap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 682-0513

Handle Bracket Assembly LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 682-0514

Handle Bracket Assembly RH
(Superseded to 682-0516-0637)

$

$

Not available

39

Troy-Bilt 14766

Pivot Bar LH

$19.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 14765

Pivot Bar RH

$19.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

40

Troy-Bilt 732-0707

Front Lever LH

$15.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 782-7006

Mounting Bracket

Variations

Troy-Bilt 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 712-0798

Hex Nut

$4.49

$

In Stock, only 2 left!

0

45

Troy-Bilt 736-0356

Flat Washer
(Superseded to 936-0356)

$

$

Not available

46

Troy-Bilt 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

MTD 782-0082A

3-in-1 Deck: 21"

Variations

Troy-Bilt 782-0082A-0638

DECK 21" RD FWD (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 782-0082A-0637

21" RD DECK - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 782-0082A-0650

DECK 21" RD FWD (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 782-0082A-0662

DECK 21" RD FWD (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 782-0082A-0665

DECK 21" RD FWD (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 782-0082A-0667

DECK 21" RD FWD MID BLUE - MIDNIGHT BLUE (0667)

$

$

Not available

Troy-Bilt 782-0082A-0689

DECK 21" RD FWD (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 782-0082A-0691

DECK 21" RD FWD (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 782-0082A-0698

DECK 21" RD FWD - HUNTER GREEN (0698)

$

$

Not available

Troy-Bilt 782-0082A-0709

DECK 21"RD - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

48

Troy-Bilt 754-0637

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

49

MTD 731-1404A

Mulch Plug
(Superseded to 682-7000)

$

$

Not available

50

Troy-Bilt 731-1409

Discharge Deflector SD
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

51

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

52

Troy-Bilt 736-0270

Bell Washer 0.265" x 0.75"

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

Troy-Bilt 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

54

Troy-Bilt 753-05465

Transmission Assembly Complete

Note: Replaces 618-0657

$245.99

$

Usually ships in 3-6 days

0

54

MTD 732-1039

Spring, Extension

Note: Not shown

$

$

Not available

55

Troy-Bilt 7510042824

Screw #12 x 0.457"
(Superseded to 710-1650)

$4.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 731-2601

Front Drive Cover
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 715-0169

Roll Pin

$

$

Not available

58

Troy-Bilt 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

59

Troy-Bilt 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

60

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

Troy-Bilt 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

61

Troy-Bilt 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

Troy-Bilt 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

62

MTD 682-0509

Pivot Plate Assembly

$

$

Not available

63

Troy-Bilt 756-1146A

Drive Pulley

$57.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 748-0411

Blade Adapter
(Superseded to 753-05151)

$67.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 742-0741

Mulching Blade w/ Star: 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 17

0

67

Troy-Bilt 710-0216

Hex Screw

$4.49

$

In Stock, Qty 16

0

68

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

69

Troy-Bilt 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

69

Troy-Bilt 717-1761

Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

70

Troy-Bilt 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

71

Troy-Bilt 736-3013

Flat Washer

$4.49

$

In Stock, only 3 left!

0

72

Troy-Bilt 716-0865

Snap Ring

$4.49

$

In Stock, only 1 left!

0

73

Troy-Bilt 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

74

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

75

Troy-Bilt 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

76

Troy-Bilt 756-1231

Input Pulley

$

$

Not available

77

Troy-Bilt 710-1257

Hex Bolt

$7.99

$

In Stock, only 1 left!

0

78

Troy-Bilt 736-0452

Bell Washer

$4.99

$

In Stock, Qty 7

0

79

Troy-Bilt 664-0176

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 782-5007C

PLUG-MULCHING BAFFLE

$52.99

$

In Stock, only 1 left!

0

82

Troy-Bilt 750-1166

Slev. Spacer LH

$4.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 750-1165

Slev. Spacer RH
(Superseded to 750-1210)

$

$

Not available

83

Troy-Bilt 682-0516A

Height Adj. Assembly RH Complete
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 682-0515A

Height Adj. Assembly LH Complete
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 782-7000

RD Chute Door

Variations

Troy-Bilt 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

Troy-Bilt 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 782-7000-0674

REAR DISCHARGE DOOR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

87

Troy-Bilt 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

Note: (Not shown)

$3.99

$

In Stock, only 2 left!

0

89

Troy-Bilt 710-1008

TT Screw

$5.49

$

In Stock, Qty 9

0

90

Troy-Bilt 682-0512A

Height Adj. Assembly RH Complete
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

91

Troy-Bilt 682-0511A

Height Adj. Assembly LH Complete
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 710-1248

Weld Pin

$

$

Currently unavailable

93

Troy-Bilt 734-2042

Wheel:Front
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

94

Troy-Bilt 732-0417A

Spring Lever

$

$

Not available
