12A-465E790 - White Outdoor 21" Walk-Behind Mower (2005) General Assembly Parts Diagram

21" Walk-Behind Mower

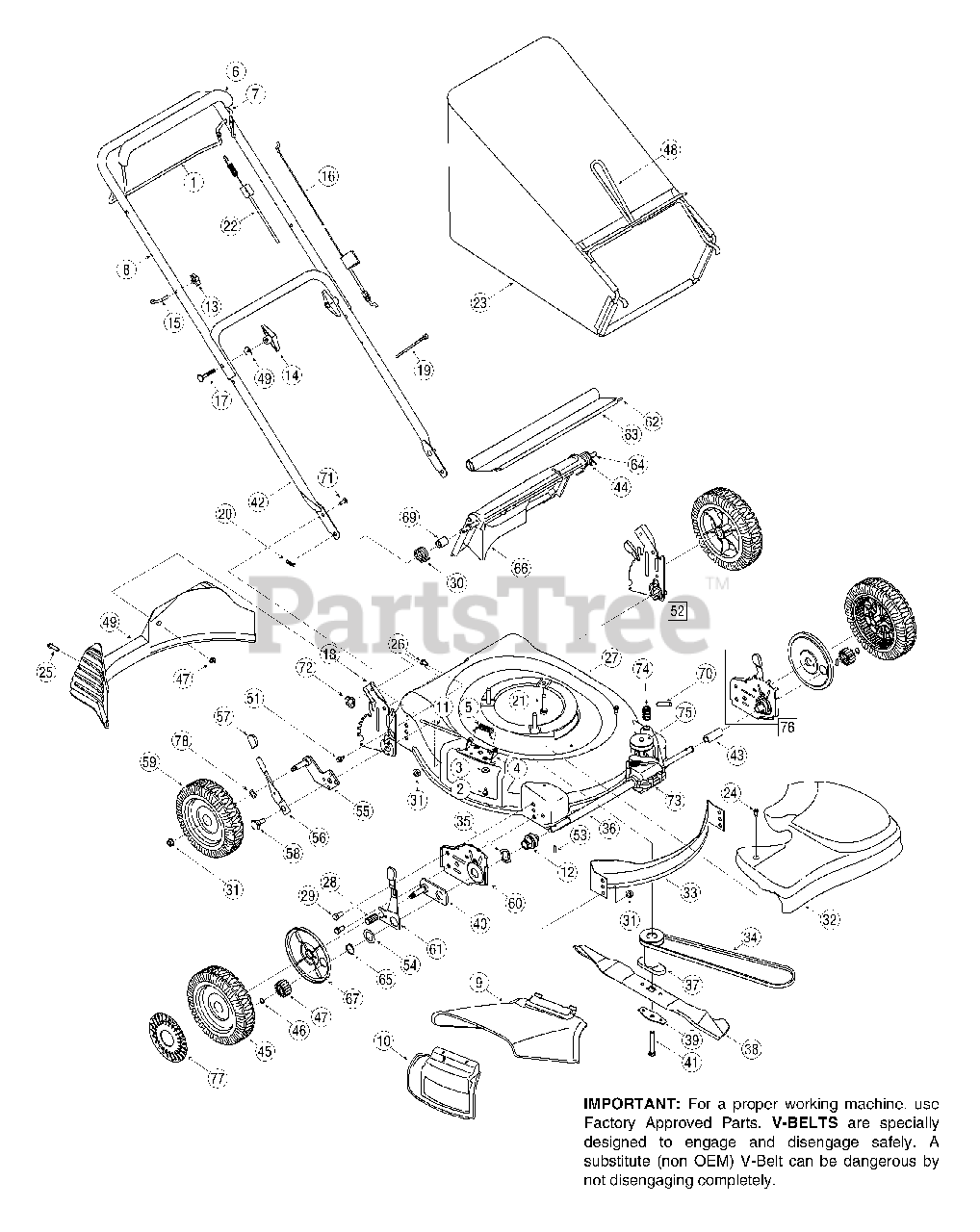

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1214

Lower Bail Handle

$22.99

$

In Stock, Qty 5

0

2

White Outdoor 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 736-0270

Bell Washer.265 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

6

White Outdoor 731-04859

Snap-On Bail Cover

$11.99

$

Usually ships in 3-6 days

0

7

White Outdoor 747-1161A

Blade Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

8

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

9

White Outdoor 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

White Outdoor 687-02055

Mulch Plug Complete
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

11

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 682-0015

Bearing Assembly
(Superseded to 982-0015)

$31.99

$

Usually ships in 3-6 days

0

13

White Outdoor 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

14

White Outdoor 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

16

White Outdoor 746-1114

Control Cable - 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

17

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

White Outdoor 787-01144A

RH Handle Bracket
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01143A

LH Handle Bracket
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

19

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, only 3 left!

0

22

White Outdoor 746-04112A

Drive Cable
(Superseded to 946-04112A)

$36.99

$

In Stock, Qty 10

0

23

White Outdoor 664-04034

Grassbag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

White Outdoor 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-0286

Machnined Screw 1/4-20

$4.49

$

Usually ships in 3-6 days

0

26

White Outdoor 710-04371

Hex Lock Screw 1/4-15

$6.99

$

Usually ships in 3-6 days

0

27

White Outdoor 787-01222

21" Deck
(Superseded to 753-05204)

Variations

White Outdoor 787-01222-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 787-01222-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

White Outdoor 731-04150

Rear Baffle 21" Rd.
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

29

White Outdoor 710-0216

Hex Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 16

0

30

White Outdoor 732-04090A

Torsion Spring RH

$7.99

$

Usually ships in 3-6 days

0

31

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 731-05065

Transmission Cover (Gray)
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

33

White Outdoor 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

34

White Outdoor 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 750-04178

Sleeve Spacer 9.04" Lg.

$

$

Not available

37

White Outdoor 748-04015A

Blade Adapter w/ Pulley
(Superseded to 948-04015A)

$65.99

$

In Stock, only 1 left!

0

38

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

40

White Outdoor 687-02044

Pivot Plate Assembly
(Superseded to 987-02044)

$

$

Not available

41

White Outdoor 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 2 left!

0

42

White Outdoor 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

White Outdoor 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

43

White Outdoor 750-1166

Slev. Spacer 2.1" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 732-04089A

Torsion Spring LH

$7.99

$

Usually ships in 3-6 days

0

45

White Outdoor 734-2042

Front Wheel 8x2.125 Gear Gray
(Superseded to 734-2042A)

$38.99

$

In Stock, Qty 12

0

46

White Outdoor 716-0865

Snap Ring

$4.49

$

In Stock, only 1 left!

0

47

White Outdoor 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

White Outdoor 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

48

White Outdoor 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

White Outdoor 747-04080-0637

FRAME GRASS BAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

49

White Outdoor 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

50

White Outdoor 710-0606

Hex Screw 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

51

White Outdoor 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 687-02068

RH Handle Bracket Assembly
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 687-02069

LH Handle Bracket Assembly
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

53

White Outdoor 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

54

White Outdoor 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

55

White Outdoor 687-02071

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

White Outdoor 687-02070

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

56

White Outdoor 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

57

White Outdoor 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

58

White Outdoor 738-0507B

Shoulder Scr.500 Dia. x.434

$4.49

$

In Stock, only 4 left!

0

59

White Outdoor 734-2004A

Rear Wheel 8x2.125 Gray
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

60

White Outdoor 782-0512B

Height Adjuster Plate - RH
(Superseded to 782-0512B-0637)

Variations

White Outdoor 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

White Outdoor 782-0511A

Height Adjuster Plate - LH
(Superseded to 782-0511A-0637)

Variations

White Outdoor 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

61

White Outdoor 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

White Outdoor 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

62

White Outdoor 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

63

White Outdoor 731-04998

Trail Shield

$31.99

$

In Stock, Qty 6

0

64

White Outdoor 747-04035

Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

65

White Outdoor 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

66

White Outdoor 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

67

White Outdoor 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

68

White Outdoor 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

69

White Outdoor 750-04162

Spacer.375 x.50 x 1.02" Lg.
(Superseded to 950-04162)

$

$

Not available

70

White Outdoor 715-04011

Roll Pin

$5.49

$

Usually ships in 3-6 days

0

71

White Outdoor 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

72

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

73

White Outdoor 618-0657

Transmission Assembly
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

74

White Outdoor 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

75

White Outdoor 756-04017

Input Pulley

$28.99

$

Usually ships in 3-6 days

0

76

White Outdoor 682-0512A

Height Adjustment Assembly RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-0511A

Height Adjustment Assembly LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

77

White Outdoor 731-0981A

Hub Cap - Radial Spoke Gray
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

78

White Outdoor 736-0504

Wave Washer .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0
