12A-459K352 - Yard Machines Walk-Behind Mower (2000) (Walmart) Rear Bagger Assembly - Electric Start (Optional) Parts Diagram

Walk-Behind Mower

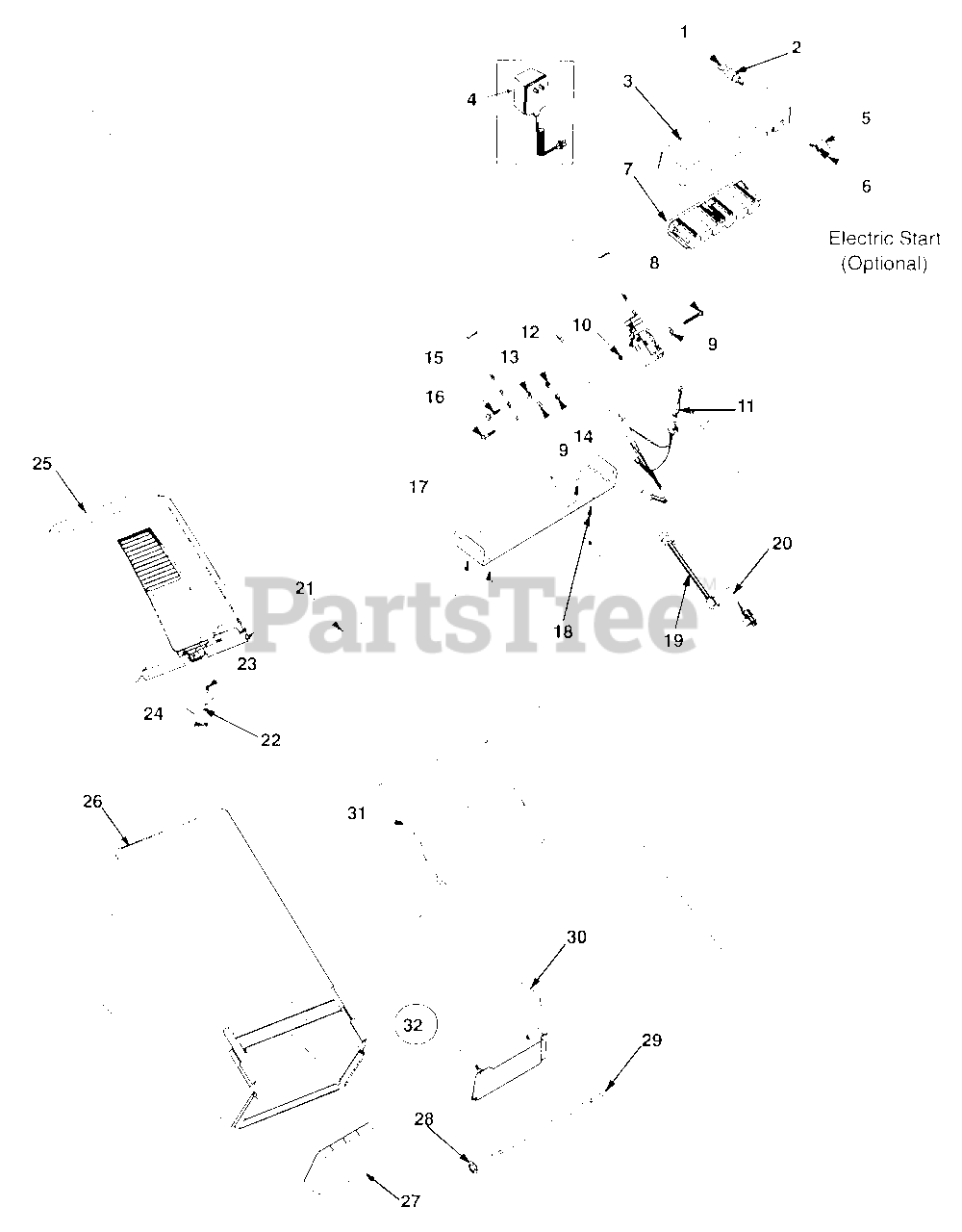

Rear Bagger Assembly - Electric Start (Optional) Parts Diagram

  • Title

1

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

2

MTD 725-0873

Key Switch
(Superseded to 925-0873)

$

$

Not available

3

MTD 731-0891A

Battery Tray

$

$

Not available

4

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

5

MTD 725-0298

Fuse 7.5 Amp
(Superseded to 925-0298)

$

$

Not available

6

MTD 725-1428

Fuse Holder
(Superseded to 925-1428)

$

$

Not available

7

MTD 725-1276

Battery 12V
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

8

MTD 710-0501

Hex Screw: 1/4-20:2.0

$7.49

$

Usually ships in 3-6 days

0

9

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0329

Special Hex Nut 5/16-18

$

$

Not available

11

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

12

MTD 712-0267

Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Bell Wash .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

MTD 710-1250

Carriage Bolt 5/16-18 x 1

$4.99

$

In Stock, Qty 5

0

16

MTD 710-0111

Carriage Screw

$3.99

$

Usually ships in 3-6 days

0

17

MTD 782-9012

Lower Battery Tray
(Superseded to 782-9012-0637)

Variations

MTD 782-9012-0637

BATTERY TRAY - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0969

Tapp Screw

$4.49

$

In Stock, only 2 left!

0

19

MTD 725-1538

Harness Extension

$

$

Not available

20

MTD 725-1442

Harness
(Superseded to 925-1442)

$

$

Not available

21

MTD 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

22

MTD 782-9011

Mounting Bracket
(Superseded to 782-9011-0637)

Variations

MTD 782-9011-0637

BRACKET-MTG - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

23

MTD 710-0286

Hex Screw 1/4 -20 x .5

$4.49

$

Usually ships in 3-6 days

0

24

MTD 712-0324

Hex Nylon L-Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

25

MTD 731-1322A

Hardtop Cover w/o Logo: Econo: Blk.
(Superseded to 731-1876)

$

$

Not available

MTD 731-1876

Hardtop Cover w/Logo: Econo: Blk.

$

$

Not available

MTD 764-0433

Grassbag for Hardtop Assy
(Superseded to 964-0433)

$

$

Not available

26

MTD 764-0476A

Grass Bag: Soft Top w/ Logo
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

MTD 764-0309

Grass Bag: Econo: Soft Top w/o Logo
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

27

MTD 782-5007A

Mulcher Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

28

MTD 726-0201

Nut: Spd. .3125 ID

$6.99

$

Usually ships in 3-6 days

0

29

MTD 711-0996

Rod

$45.99

$

Usually ships in 3-6 days

0

30

MTD 731-1405

Side Discharge Adapter
(Superseded to 731-1405A)

$

$

Not available

31

MTD 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 190-104-000

Chute Deflector Complete

$

$

Not available
