12A-453E700 - Yard Machines Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

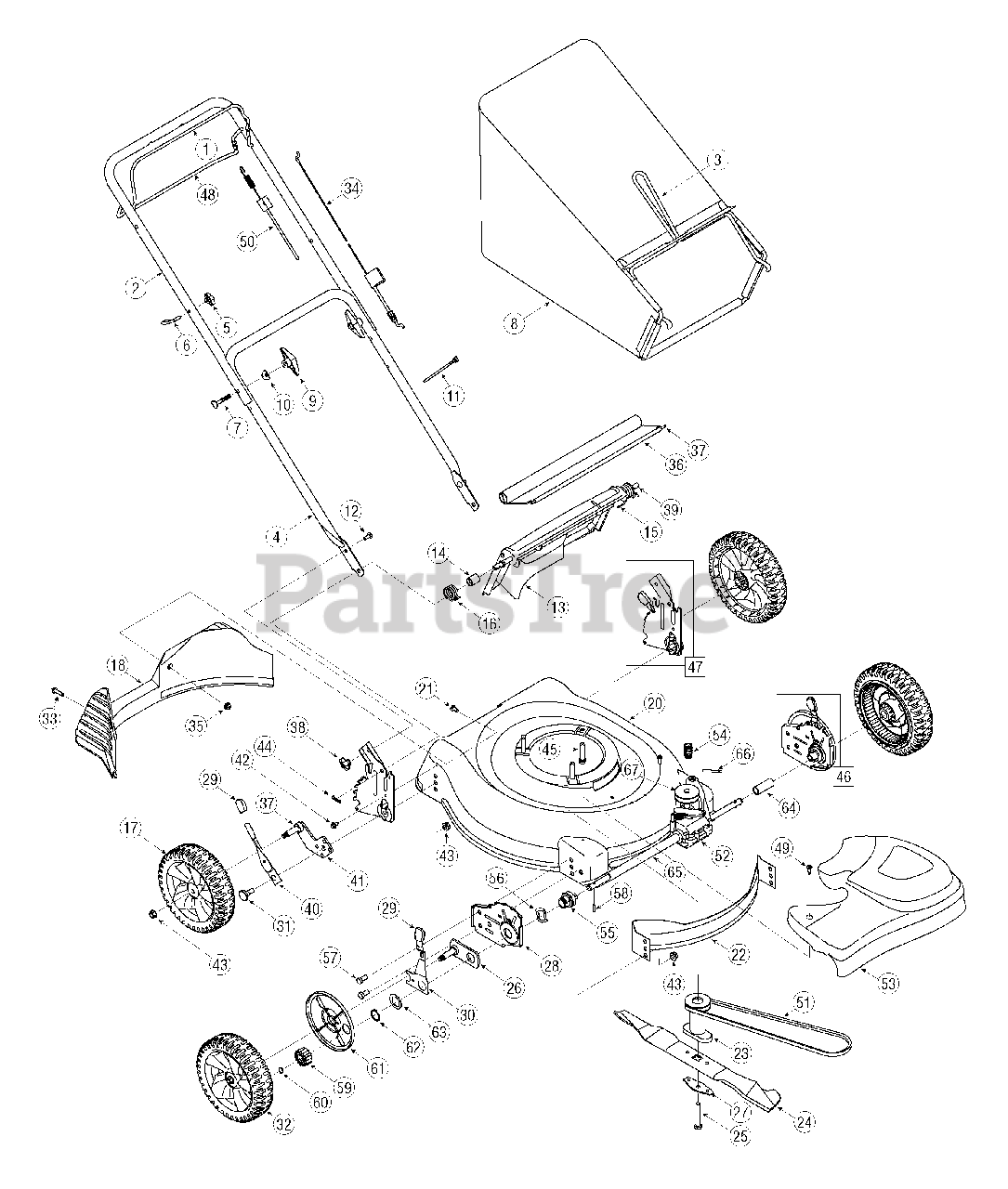

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

MTD 664-04007

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 15

0

13

MTD 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

14

MTD 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

15

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

16

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

17

Rear Wheel

Note: Refer to Wheel Chart

$

$

Not available

18

MTD 731-04150

Rear Baffle
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

19

MTD 720-0249

Hubcap, Zag Tread
(Superseded to 920-0249)

Note: If equipped; (Not Shown)

$

$

Not available

MTD 731-0981A

Hubcap, Bar Tread
(Superseded to 731-0981C)

Note: If equipped; (Not Shown)

$10.99

$

In Stock, only 2 left!

0

20

MTD 787-01219

Deck - 21"
(Superseded to 753-05202)

Variations

MTD 787-01219-0638

SERVICE KIT:DECK 2 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01219-0665

SERVICE KIT:DECK 2 - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01219-0691

SERVICE KIT:DECK 2 - BLACK JACK (0691)

$

$

Not available

$

$

21

MTD 710-0286

AB Screw, 10-16 x .500"

$4.49

$

Usually ships in 3-6 days

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-04015A

Blade Adapter w/Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

24

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Bolt , 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

26

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

28

MTD 782-0512B

Height Adjustment Plate - RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

MTD 782-0511A

Height Adjustment Plate - LH
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

31

MTD 738-04136

Shoulder Screw

$

$

Not available

32

Front Wheel

Note: Refer to Wheel Chart

$

$

Not available

33

MTD 710-04371

Screw, 1/4-15 x 1.250

$6.99

$

Usually ships in 3-6 days

0

34

MTD 746-1113

Control Cable - 37.75"
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

MTD 746-1114

Control Cable - 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

35

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

37

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

38

MTD 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

41

MTD 687-02071

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

42

MTD 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

44

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

46

MTD 682-0511A

Ht. Adj. Assy. Front - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-0512A

Ht. Adj. Assy. Front - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

47

MTD 687-02069

Rear Handle Bracket Assy. - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 687-02068

Rear Handle Bracket Assy. - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

48

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

49

MTD 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

50

MTD 746-04112A

Drive Cable
(Superseded to 946-04112A)

$36.99

$

In Stock, Qty 10

0

51

MTD 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

52

MTD 618-0657

Transmission Assembly
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

53

MTD 731-05132

Front Drive Cover
(Superseded to 931-05132A)

$47.99

$

Usually ships in 3-6 days

0

MTD 731-05013

Front Drive Cover w/Slf Prop
(Superseded to 931-05013A)

$52.99

$

Usually ships in 3-6 days

0

54

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

55

MTD 682-0015

Bearing Assembly
(Superseded to 982-0015)

$31.99

$

Usually ships in 3-6 days

0

56

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-0216

Hex Screw

$4.49

$

In Stock, Qty 15

0

58

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

59

MTD 717-1762

Gear, 14T - RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear, 14T - LH

$13.99

$

In Stock, only 4 left!

0

60

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

61

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

62

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

63

MTD 736-0474

Washer, 1.5" OD

$6.99

$

In Stock, only 3 left!

0

64

MTD 750-1166

Sleeve Spacer - LH

$4.99

$

Usually ships in 3-6 days

0

65

MTD 750-04178

Sleeve Spacer - RH

$

$

Not available

66

MTD 715-04011

Roll Pin

$5.49

$

Usually ships in 3-6 days

0

67

MTD 756-04017

Input Pulley

$28.99

$

Usually ships in 3-6 days

0
