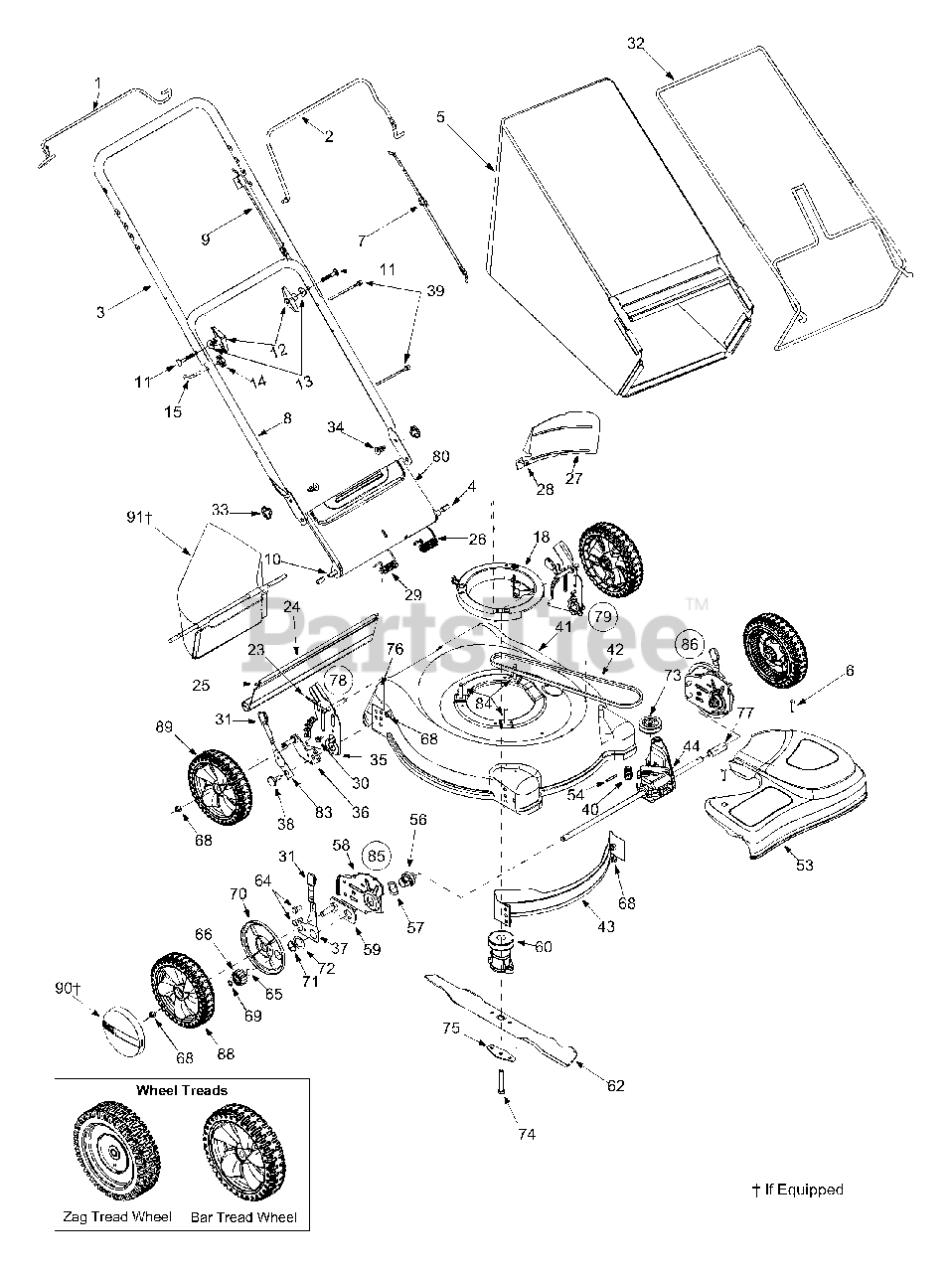

12A-453E700 - Yard Machines Walk-Behind Mower (2004) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Lower Bail Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

3

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

4

MTD 750-04162

Spacer.390 x.810 x.950"
(Superseded to 950-04162)

$

$

Not available

5

MTD 664-04007

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

6

MTD 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

7

MTD 746-1113

Control Cable: 37.75"
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

MTD 746-0550

Control Cable: 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-1132

Control Cable: 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

MTD 746-1114

Control Cable: 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

MTD 746-1141

Control Cable: 58.25"
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

8

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

9

MTD 746-04112

Drive Cable
(Superseded to 946-04112A)

$36.99

$

In Stock, Qty 10

0

10

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

11

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

14

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

15

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

18

MTD 631-0075B

Engine Spacer Assembly

$

$

Not available

23

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

24

MTD 731-1236

Rear Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

25

MTD 732-0700

Trail Shield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

26

MTD 732-04089

Torsion Spring LH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

27

MTD 782-5003

Rear Baffle LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

28

MTD 710-1017

Screw 1/4-14 x 0.625"

$8.49

$

In Stock, Qty 9

0

29

MTD 732-04090

Torsion Spring RH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

30

MTD 710-1652

Hex Screw w/ Wash. 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

31

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

33

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0703

Hex Carriage Screw

$4.49

$

In Stock, Qty 15

0

35

MTD 787-01144

Handle Bracket RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 787-01143

Handle Bracket LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

36

MTD 687-02071

Pivot Arm Assembly RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Arm Assembly LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

37

MTD 732-0706

Front Lever RH

$15.99

$

In Stock, only 4 left!

0

MTD 732-0707

Front Lever LH

$15.99

$

In Stock, only 1 left!

0

38

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

39

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

40

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

41

MTD 787-01007

Rear Discharge Deck, 21"
(Superseded to 753-05201)

$

$

Not available

42

MTD 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

43

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 618-0657

Transmission Assembly
(Superseded to 753-05465)

$245.99

$

Usually ships in 3-6 days

0

53

MTD 731-04683

Front Drive Cover

$

$

Currently unavailable

MTD 731-04671

Front Drive Cover (w/Self-Propelled)

$

$

Currently unavailable

54

MTD 715-04011

Roll Pin

$5.49

$

Usually ships in 3-6 days

0

56

MTD 682-0015

Bearing Assembly
(Superseded to 982-0015)

$31.99

$

Usually ships in 3-6 days

0

57

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

58

MTD 782-0512B

Height Adj. Plate RH
(Superseded to 782-0512B-0637)

Variations

MTD 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

MTD 782-0511A

Height Adj. Plate LH
(Superseded to 782-0511A-0637)

Variations

MTD 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

60

MTD 748-04015A

Blade Adapter / Pulley Assembly
(Superseded to 948-04015A)

$65.99

$

In Stock, only 1 left!

0

62

MTD 742-0741

Mulching Blade w/ Star, 21"
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

64

MTD 710-0216

Hex Screw

$4.49

$

In Stock, Qty 16

0

65

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

66

MTD 717-1762

Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

68

MTD 712-0431

Hex Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

69

MTD 716-0865

Snap Ring

$4.49

$

In Stock, only 1 left!

0

70

MTD 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

71

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

72

MTD 736-0474

Washer, 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

73

MTD 756-04017

Input Pulley

$28.99

$

Usually ships in 3-6 days

0

74

MTD 710-1257

Hex Bolt, 3/8-24 x 2.5

$7.99

$

In Stock, only 2 left!

0

75

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

76

MTD 782-5004A

Rear Baffle RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

77

MTD 750-1166

Slev. Spacer LH

$4.99

$

Usually ships in 3-6 days

0

MTD 750-04178

Slev. Spacer RH

$

$

Not available

78

MTD 687-02068

Handle Bracket Assembly RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

79

MTD 687-02069

Handle Bracket Assembly LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

80

MTD 731-04134

Chute Door
(Superseded to 931-04134)

$

$

Not available

83

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

84

MTD 710-1008

Self-tapping Screw, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 9

0

85

MTD 682-0512A

Height Adj. Assembly RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

86

MTD 682-0511A

Height Adj. Assembly LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

88

Front Wheel

Note: Refer to "Wheel Chart"

$

$

Not available

89

Rear Wheel

Note: Refer to "Wheel Chart"

$

$

Not available

90

MTD 720-0249

Hub Cap, Gray (Fits Zag Tread Wheels)
(Superseded to 920-0249)

Note: If Equipped

$

$

Not available

91

MTD OEM-190-104

Chute Deflector Accessory

Note: If Equipped

$

$

Not available
