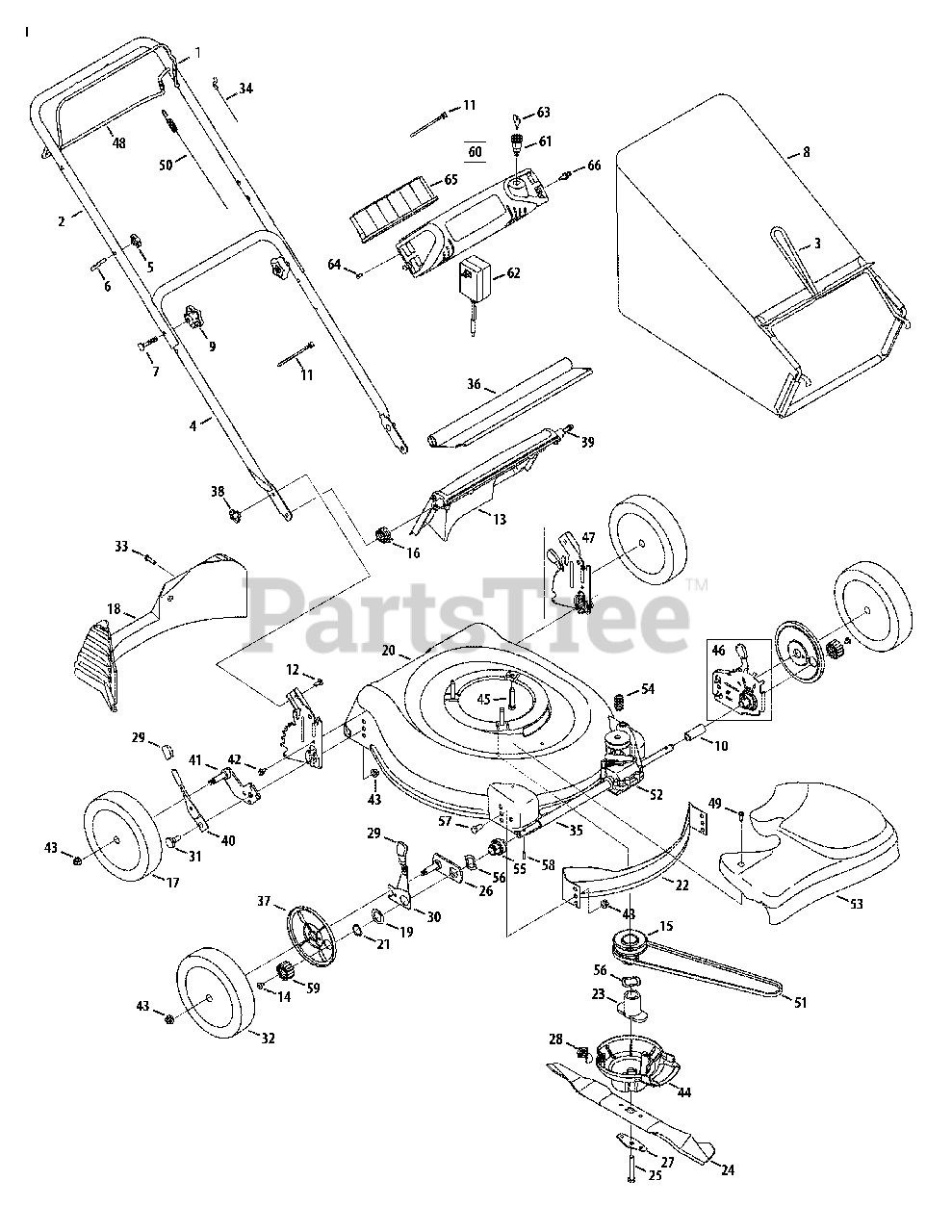

12A-446M001 - Yard-Man Walk-Behind Mower (2009) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080A

Grass Catcher Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 3 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-1174

Carriage Bolt ,5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

MTD 664-04027

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

MTD 720-04072

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

MTD 750-04595

Sleeve Spacer - LH

$4.99

$

In Stock, only 1 left!

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

12

MTD 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 15

0

13

MTD 731-06847

Rear Discharge Door

$28.99

$

Usually ships in 3-6 days

0

14

MTD 710-04531

Screw 1/4-20

$5.49

$

In Stock, Qty 20+

0

15

MTD 656-04047A

Drive Pulley Assembly

$26.99

$

In Stock, only 1 left!

0

16

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

17

MTD 734-04087

Rear Wheel, 8" x 1.8"

$27.99

$

In Stock, Qty 5

0

18

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

19

MTD 736-0474

Washer, 1.5" OD

$6.99

$

In Stock, only 3 left!

0

20

MTD 787-01277-0665

Deck - 21"

$319.99

$

Usually ships in 3-6 days

0

21

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

24

MTD 742-0741

21" Mulch Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Bolt , 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

26

MTD 687-02334

Pivot Plate Assembly
(Superseded to 987-02334)

$9.99

$

In Stock, Qty 5

0

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

28

MTD 787-01593

Engine Baffle Bracket

$5.99

$

In Stock, Qty 5

0

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

MTD 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

30

MTD 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

31

MTD 738-04266

Shoulder Screw

$6.49

$

Usually ships in 3-6 days

0

32

MTD 634-04100

Front Wheel, 8" x 1.8"
(Superseded to 634-04100A)

$39.99

$

In Stock, Qty 17

0

33

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

34

MTD 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

35

MTD 750-04594

Sleeve Spacer - RH

$9.49

$

In Stock, only 1 left!

0

36

MTD 731-05642A

Trailshield

$28.99

$

In Stock, Qty 9

0

37

MTD 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

38

MTD 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04587

Rear Door Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

41

MTD 687-02333

Pivot Arm Assembly - RH
(Superseded to 987-02333)

$17.99

$

In Stock, only 1 left!

0

41

MTD 687-02332

Pivot Arm Assembly - LH
(Superseded to 987-02332)

$18.99

$

Usually ships in 3-6 days

0

42

MTD 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

MTD 731-06029

Engine Baffle
(Superseded to 753-06116)

$16.99

$

In Stock, only 2 left!

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

46

MTD 687-02193A

Ht. Adj. Assy. Front - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

46

MTD 687-02194A

Ht. Adj. Assy. Front - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

47

MTD 687-02270A

Rear Handle Bracket Assy. - LH
(Superseded to 987-02270A)

$38.99

$

In Stock, only 1 left!

0

47

MTD 687-02271A

Rear Handle Bracket Assy. - RH
(Superseded to 987-02271A)

$

$

Not available

48

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

49

MTD 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

50

MTD 746-04203

Drive Cable
(Superseded to 946-04203)

$48.99

$

In Stock, Qty 7

0

51

MTD 754-0637A

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

52

MTD 618-04376A

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

53

MTD 731-05021A

Front Drive Cover
(Superseded to 931-05021A)

$62.99

$

Usually ships in 3-6 days

0

54

MTD 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

55

MTD 687-02347

Bearing Assembly
(Superseded to 987-02347)

$17.99

$

In Stock, only 3 left!

0

56

MTD 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-0216

Hex Screw

$4.49

$

In Stock, Qty 16

0

58

MTD 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

59

MTD 717-1762

Gear, 14T - RH

$13.99

$

In Stock, only 3 left!

0

59

MTD 717-1761

Gear, 14T - LH

$13.99

$

In Stock, only 4 left!

0

60

MTD 625-04072

Electric Start Harness Assembly
(Superseded to 925-04072)

Note: Electric Start Models Only

$99.99

$

Usually ships in 3-6 days

0

61

MTD 725-04347

Key Switch
(Superseded to 925-04347)

Note: Electric Start Models Only

$33.99

$

Usually ships in 3-6 days

0

62

MTD 725-04329

Battery Charger 12V
(Superseded to 725-06121B)

Note: Electric Start Models Only

$47.99

$

In Stock, Qty 13

0

63

MTD 725-0201

Key
(Superseded to 925-0201)

Note: Electric Start Models Only

$9.49

$

In Stock, only 1 left!

0

64

MTD 710-1667A

Screw, #10-16 x .75

Note: Electric Start Models Only

$4.49

$

In Stock, Qty 13

0

65

MTD 725-04323

12 Volt Battery
(Superseded to 925-04323)

Note: Electric Start Models Only

$114.99

$

In Stock, only 3 left!

0

66

MTD 728-0199

Plastic Rivet

Note: Electric Start Models Only

$4.49

$

In Stock, Qty 15

0
