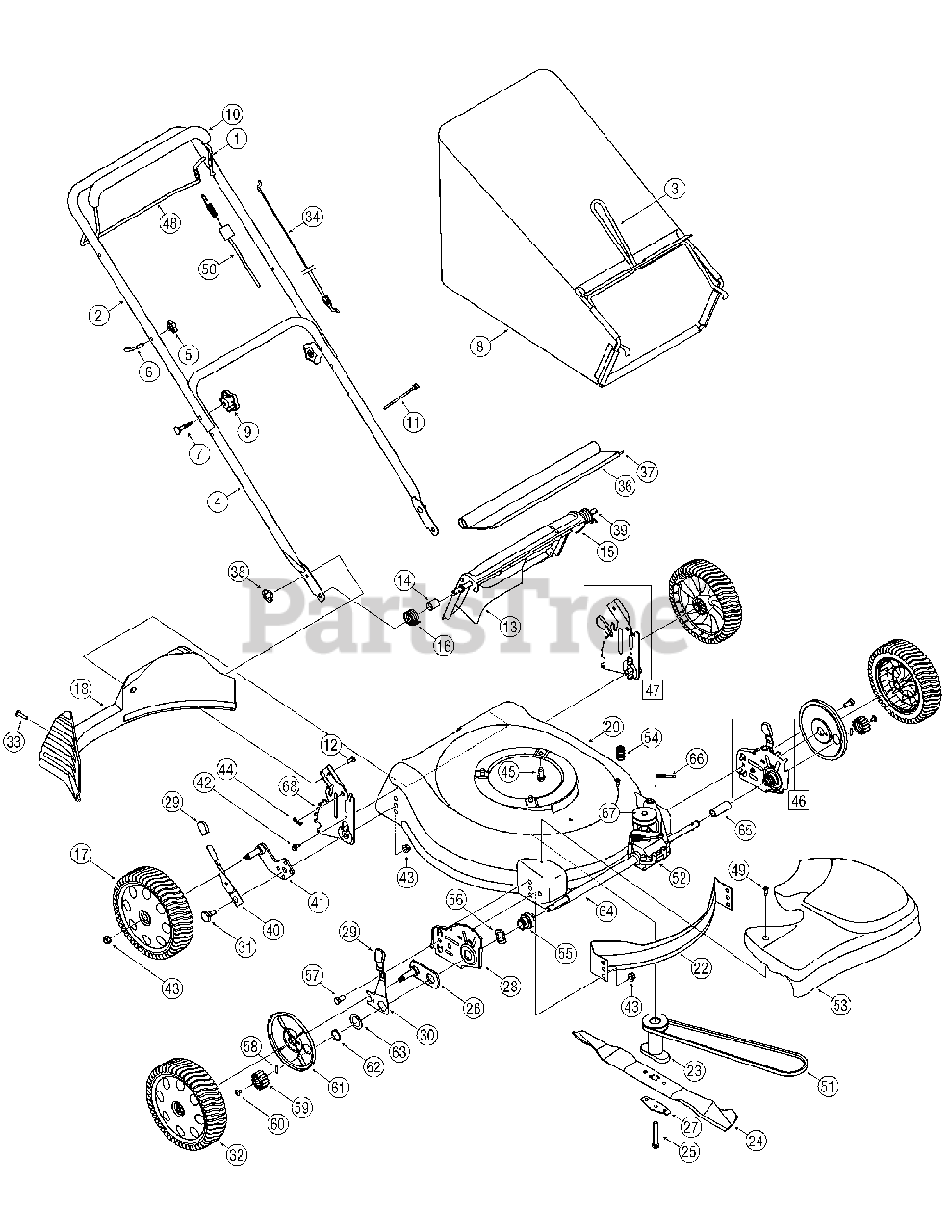

12A-446A711 - Troy-Bilt Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-1161A

Blade Control Handle

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

Troy-Bilt 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1174

Carriage Bolt ,5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 664-04011

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

Troy-Bilt 720-04072

Star Knob 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-04204

Deluxe Bale Cover

$11.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

15

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 734-04014B

Rear Wheel, 8" x 2.125"
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

18

Troy-Bilt 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 787-01277

Deck - 21"

Variations

Troy-Bilt 787-01277-0665

DECK-21" - YARDMAN GREEN (0665)

$319.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01277-0638

DECK-21" - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01277-0691

DECK-21" - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 787-01277-0729

DECK-21" - STORM GRAY (0729)

$

$

Not available

$258.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

Troy-Bilt 748-04015A

Blade Adapter w/Pulley
(Superseded to 948-04015A)

$65.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 742-0741

21" Standard Cut Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 710-1257

Hex Bolt , 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

26

MTD 687-02044

Pivot Plate Assembly

$

$

Not available

27

Troy-Bilt 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

28

Troy-Bilt 787-01298

Height Adjustment Plate - RH
(Superseded to 787-01298A-0637)

$19.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 787-01299

Height Adjustment Plate - LH
(Superseded to 787-01299A-0637)

$15.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 738-04136

Shoulder Screw

$

$

Not available

32

Troy-Bilt 734-04018A

Front Wheel, 8" x 2.125"
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 710-04371

Screw, 1/4-15 x 1.250

$6.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 746-1132

Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, only 4 left!

0

36

Troy-Bilt 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

37

Troy-Bilt 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 687-02071A

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 687-02070A

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-0654A

TT Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 687-02193

Ht. Adj. Assy. Front - LH
(Superseded to 987-02193A)

$66.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 687-02194

Ht. Adj. Assy. Front - RH
(Superseded to 987-02194A)

$66.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 687-02069

Rear Handle Bracket Assy. - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 687-02068

Rear Handle Bracket Assy. - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 747-1214

Lower Bail Handle

$22.99

$

In Stock, Qty 5

0

49

Troy-Bilt 710-1650

Shoulder Screw

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 746-04203

Drive Cable 51"
(Superseded to 946-04203)

$48.99

$

In Stock, Qty 5

0

51

Troy-Bilt 754-04101

V-Belt
(Superseded to 954-0637A)

$14.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 618-04376

Transmission Assembly
(Superseded to 918-04376B)

$

$

Not available

53

Troy-Bilt 731-05020A

Front Drive Cover
(Superseded to 931-05020A)

$70.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

55

Troy-Bilt 682-0015

Bearing Assembly
(Superseded to 982-0015)

$31.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 736-0447

Wave Washer

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 710-0216

Hex Screw

$4.49

$

In Stock, Qty 12

0

58

Troy-Bilt 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

59

Troy-Bilt 717-1762

Gear, 14T - RH

$13.99

$

In Stock, only 3 left!

0

59

Troy-Bilt 717-1761

Gear, 14T - LH

$13.99

$

In Stock, only 4 left!

0

60

Troy-Bilt 710-04531

Screw 1/4-20

$5.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 736-0474

Washer, 1.5" OD

$6.99

$

In Stock, only 3 left!

0

64

Troy-Bilt 750-04594

Sleeve Spacer - LH

$9.49

$

In Stock, only 1 left!

0

65

Troy-Bilt 750-04595

Sleeve Spacer - RH

$4.99

$

In Stock, only 1 left!

0

66

MTD 715-04030

Roll Pin

$

$

Not available

67

Troy-Bilt 756-04151A

Input Pulley
(Superseded to 956-04151)

$

$

Not available

68

Troy-Bilt 787-01292

Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 787-01291

Handle Bracket - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0
