12A-388Q701 - Yard-Man Walk-Behind Mower (2004) General Assembly Parts Diagram

Walk-Behind Mower

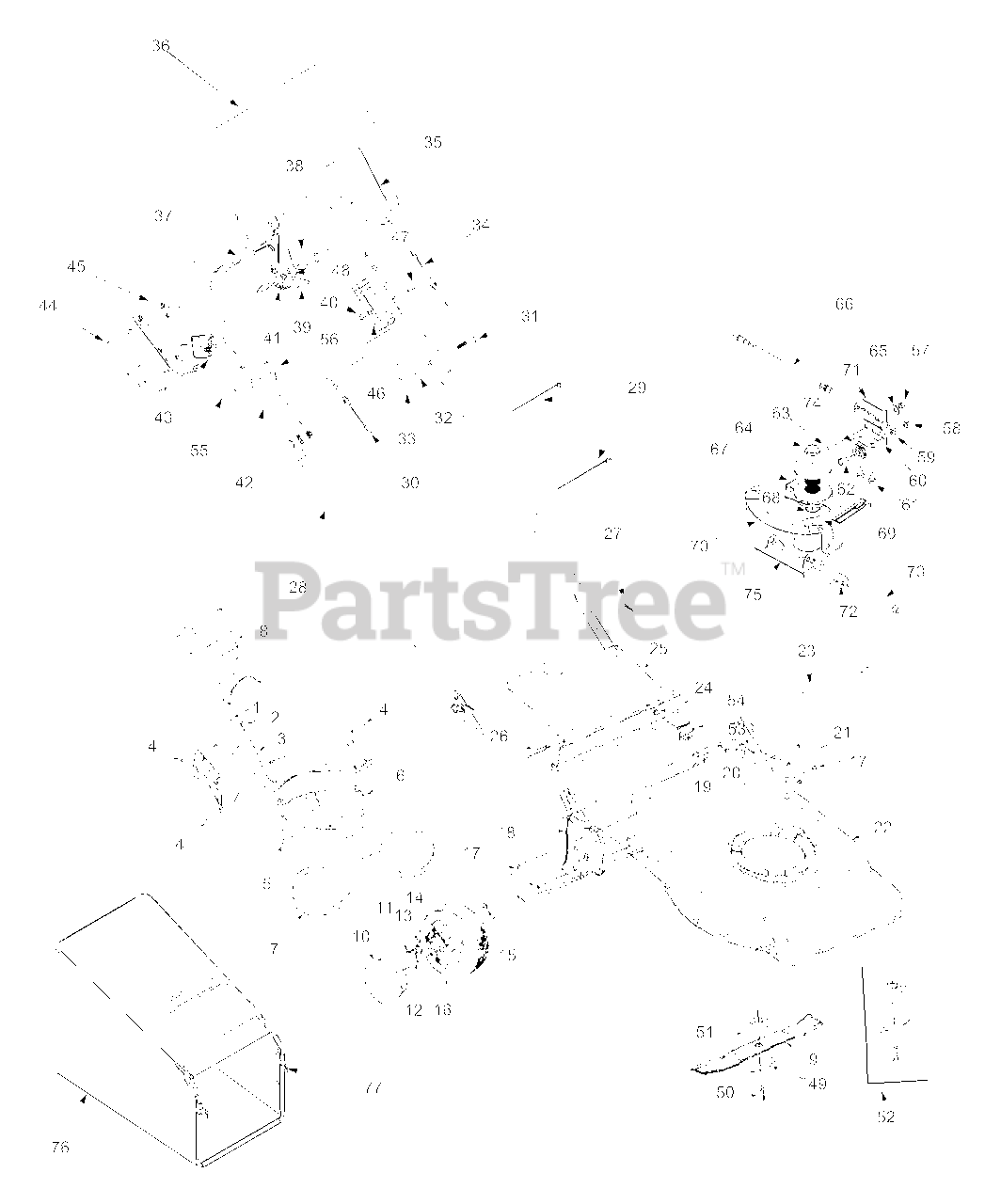

General Assembly Parts Diagram

  • Title

1

MTD 710-0351

Screw Mach. B Tapp

$4.49

$

Usually ships in 3-6 days

0

2

MTD 712-0400

U-Nut
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

3

MTD 731-1639

Baffle

$

$

Not available

4

MTD 710-1220

Screw HL 12-24

$4.99

$

In Stock, only 4 left!

0

5

MTD 710-0653

Tap Screw 1/4-20

$4.49

$

In Stock, Qty 7

0

6

MTD 731-1714A

Belt Cover

$

$

Not available

7

MTD 754-0271

Belt
(Superseded to 954-0271)

$28.99

$

Usually ships in 3-6 days

0

8

MTD 731-1685

Mulch Plug
(Superseded to 931-1685)

$

$

Not available

9

MTD 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

10

MTD 731-1426A

Hub Cap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

11

MTD 738-0137A

Shldr. Scr.340x.285

$10.99

$

In Stock, Qty 10

0

12

MTD 10622B

Ratchet Spring

$5.49

$

In Stock, Qty 20+

0

13

MTD 748-0381

Pawl R.H.

$11.99

$

Usually ships in 3-6 days

0

MTD 748-0188B

Pawl L.H.
(Superseded to 948-0188B)

Note: (Not Shown)

$

$

Not available

14

MTD 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

15

MTD 712-0414

Top Lock Weld Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

16

MTD 734-2005A

Wheel Assembly
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

17

MTD 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

18

MTD 782-3030

Handle Bracket - R.H.

Variations

MTD 782-3030-0637

No Longer Available BRACKET HA - POWDER BLACK (0637)

$

$

Not available

MTD 782-3030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3030-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

19

MTD 732-04074

Torsion Spring L.H.
(Superseded to 932-04074)

$

$

Not available

20

MTD 750-1068

Spacer.385 I.D.
(Superseded to 950-1068)

$

$

Not available

21

MTD 782-3029

Handle Bracket - L.H.

Variations

MTD 782-3029-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 782-3029-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3029-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

22

MTD 682-0075

21" Deck

Variations

MTD 682-0075-0483

No Longer Available DECK ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0075-0629

No Longer Available DECK ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0075-0638

No Longer Available DECK ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0075-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 682-0075-0662

No Longer Available DECK ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0075-0665

No Longer Available DECK ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0075-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-0075-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 682-0075-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 682-0075-0691

DECK ASSY-21" - BLACK JACK (0691)

$

$

Not available

MTD 682-0075-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 682-0075-0716

DECK ASSY-21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

23

MTD 747-0922

Pivot Rod

$

$

Not available

24

MTD 731-1236

Rear Flap 17.77 Lg.
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

25

MTD 782-7599B

Rear Chute Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599B-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 732-0700

Trail shield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

27

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

28

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

29

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

30

MTD 746-0713A

Drive Cable
(Superseded to 946-0713A)

$29.99

$

In Stock, only 1 left!

0

31

MTD 710-1174

Cr.Hd. Bolt 5 / 16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

32

MTD 736-0451

Saddle Washer.320 ID x.830 OD

$4.49

$

In Stock, Qty 11

0

33

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

34

MTD 746-0557

Control Cable-47"
(Superseded to 946-0557)

$26.99

$

In Stock, only 1 left!

0

35

MTD 731-0904A

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

36

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

37

MTD 731-0620

Drive Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

38

MTD 16864

6-Speed Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

39

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

40

MTD 712-0324

Top Lock Nut

$3.99

$

In Stock, Qty 16

0

41

MTD 731-0924

6-Speed Shift Lever

$

$

Not available

42

MTD 749-0439D

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439D-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

43

MTD 731-0906

Cable Mounting Cover
(Superseded to 753-0717)

$

$

Not available

44

MTD 710-1667A

C-Sunk Tap Screw #10-x.75 Lg

$4.49

$

In Stock, Qty 13

0

45

MTD 731-0905A

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

46

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

47

MTD 710-1270

Oval C Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

48

MTD 713-0397

3 Tooth Insert Rack Gear
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

49

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

50

MTD 710-1257

Hex Bolt 3/8-24 x 2.5 Lg.

$7.99

$

In Stock, only 1 left!

0

51

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 1 left!

0

52

MTD 753-0609

Blade Adapter Kit w/Star

$40.99

$

In Stock, Qty 12

0

53

MTD 782-7018

Pulley Cover
(Superseded to 782-7018-0637)

Variations

MTD 782-7018-0637

WINDOW/INSPECTION - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 710-1652

Screw 1/4-14 x.825

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

56

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

57

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 17

0

58

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

59

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

60

MTD 782-7575A

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

Variations

MTD 782-7575A-0637

Cable Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-0896

Screw Hex Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

62

MTD 738-0924

Screw 1/4-20 x.375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

63

MTD 710-0167

Screw 1/4-20 x.625
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

64

MTD 750-1071

Sleeve Spacer 88ID x 1.13 x.12
(Superseded to 950-1071)

$4.49

$

In Stock, only 3 left!

0

65

MTD 736-0270

Bell Washer.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

66

MTD 746-0939

6-Speed Cable - 53"
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

67

MTD 656-0613

Pulley Assembly Complete
(Superseded to 956-0613A)

$72.99

$

Usually ships in 3-6 days

0

68

MTD 750-1070

Sleeve Spacer 88 ID x 1.00 x.48
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

69

MTD 736-0526

Wave Washer 1.38 OD x.88 ID.029

$6.99

$

Usually ships in 3-6 days

0

70

MTD 782-7597

6-Speed Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

71

MTD 782-7574A

6-Speed Cable Adjustment Bracket
(Superseded to 782-7574A-0637)

Variations

MTD 782-7574A-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

73

MTD 711-1114

Pivot Shaft 3/8OD x 7.75 LG

$12.99

$

Usually ships in 3-6 days

0

74

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

75

MTD 782-7596

Control Arm
(Superseded to 782-7596A)

Variations

MTD 782-7596-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 664-0080

Grassbag - Black

$

$

Not available

77

MTD 747-0919

Grassbag Frame
(Superseded to 747-0919-0637)

Variations

MTD 747-0919-0637

FRAME GRASSCTCHR - POWDER BLACK (0637)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0
